The following distinguishes the transport trolleys of the ECO-Skate XL (PU) series:

  • Single support
    Each wheel is individually mounted on the XL Series frame or wheel boxes. This prevents bending of the axis in the event of a short-term overload.
  • Pulling bar and alignment bar
    The load moving skates of the XL series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the XL series can be combined with each other and with trolleys of the BALANCE DUO XL and ROTO XL series. The total load results from the sum of the individual load capacities.
  • HTS high quality polyurethane wheels
    The skates are equipped as standard with HTS high quality non-marking polyurethane wheels, which can also be ordered separately.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

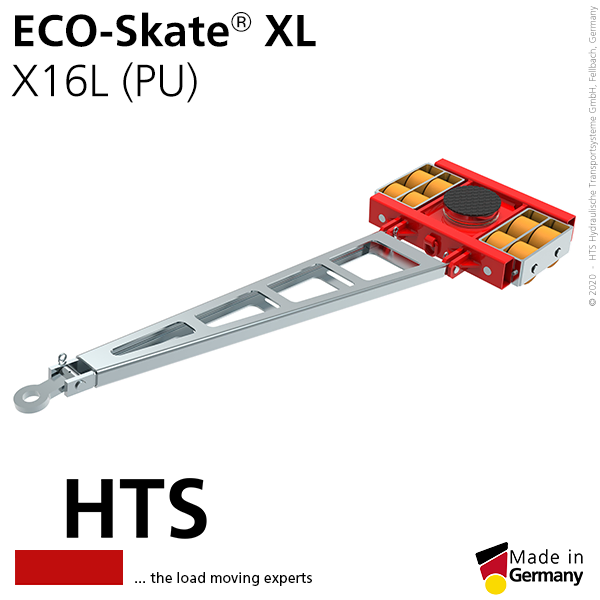

ECO-Skate-XL-X16L-PU

X16L (PU)

Artikelnummer 10.160.02.10
Traglast (kg) 16000
Maße L x B x H (mm) 568 x 724 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 133

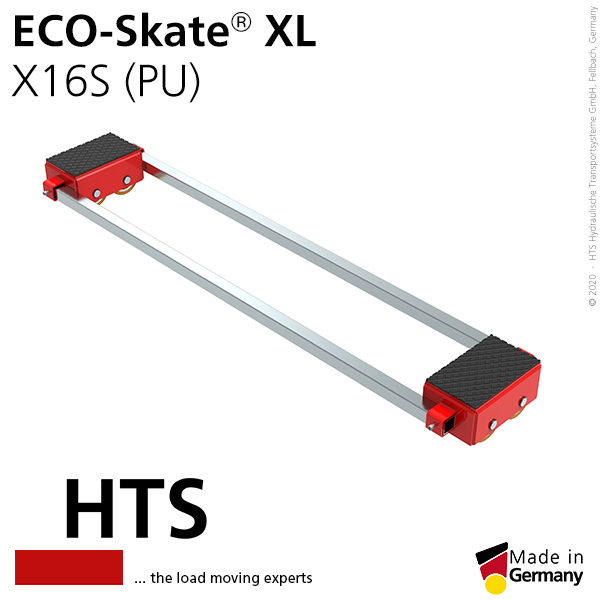

ECO-Skate-XL-X16S-PU

X16S (PU)

Artikelnummer 10.160.02.20
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 456 x 216 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 220 - 1940
Gewicht (kg) 87

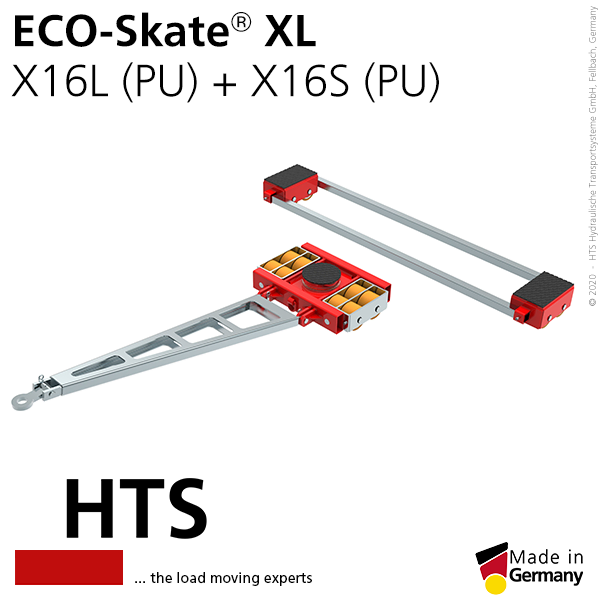

ECO-Skate-XL-X16L-PU-X16S-PU-Set

X16L (PU) + X16S Set (PU)

Artikelnummer 10.160.02.xx
Traglast (kg) 32000

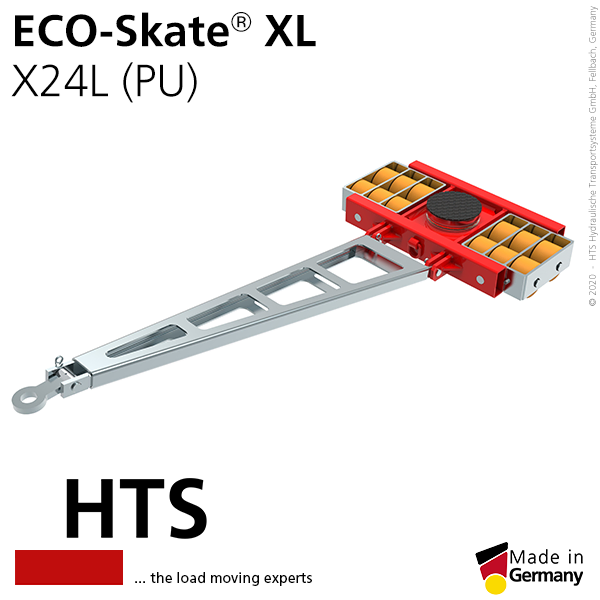

ECO-Skate-XL-X24L-PU

X24L (PU)

Artikelnummer 10.240.02.10
Traglast (kg) 24000
Maße L x B x H (mm) 567 x 931 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 158

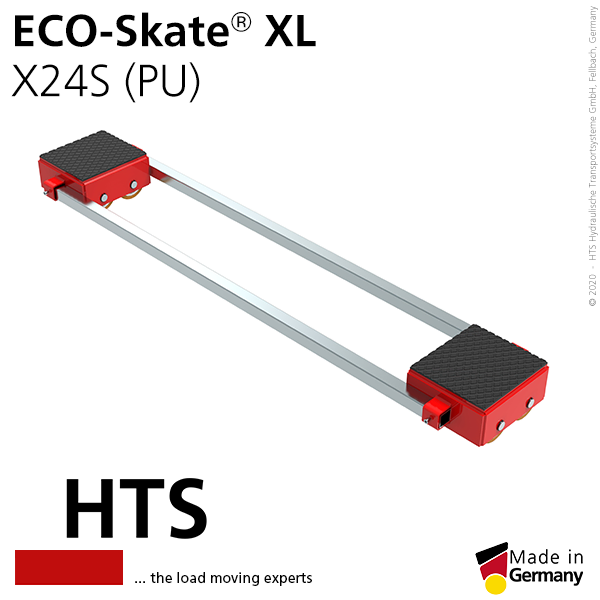

ECO-Skate-XL-X24S-PU

X24S (PU)

Artikelnummer 10.240.02.20
Traglast (kg) 2 x 12000
Maße L x B x H (mm) 456 x 313 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 320 - 1940
Gewicht (kg) 119

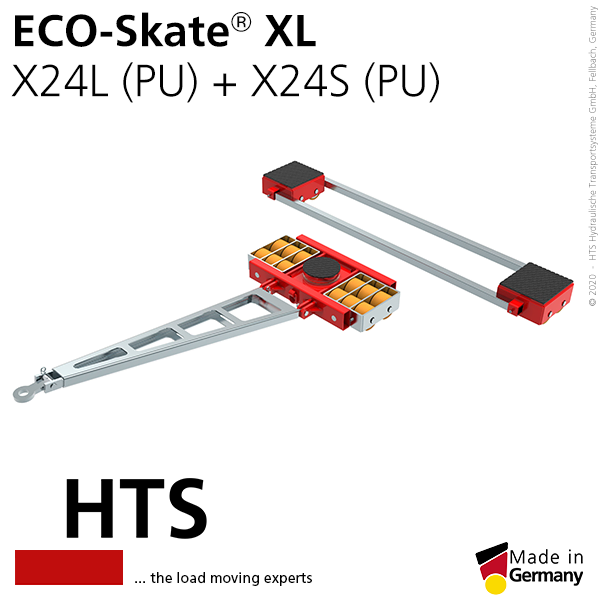

ECO-Skate-XL-X24L-PU-X24S-PU-Set

X24L (PU) + X24S (PU) Set

Artikelnummer 10.240.02.xx
Traglast (kg) 48000

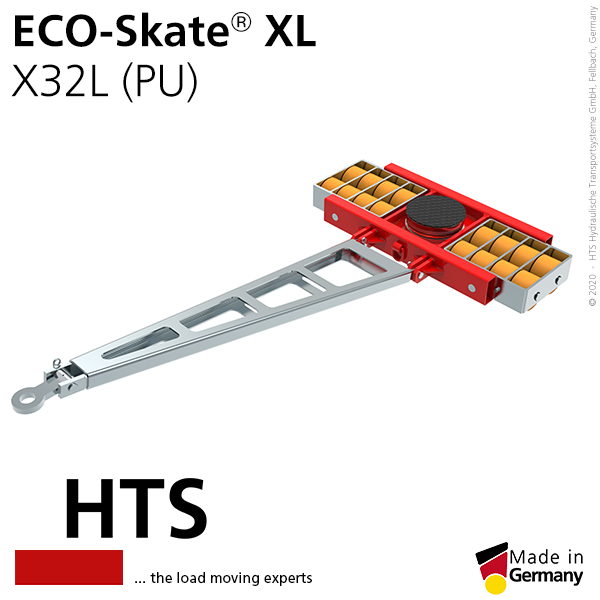

ECO-Skate-XL-X32L-PU

X32L (PU)

Artikelnummer 10.320.02.10
Traglast (kg) 32000
Maße L x B x H (mm) 567 x 1138 x180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 196

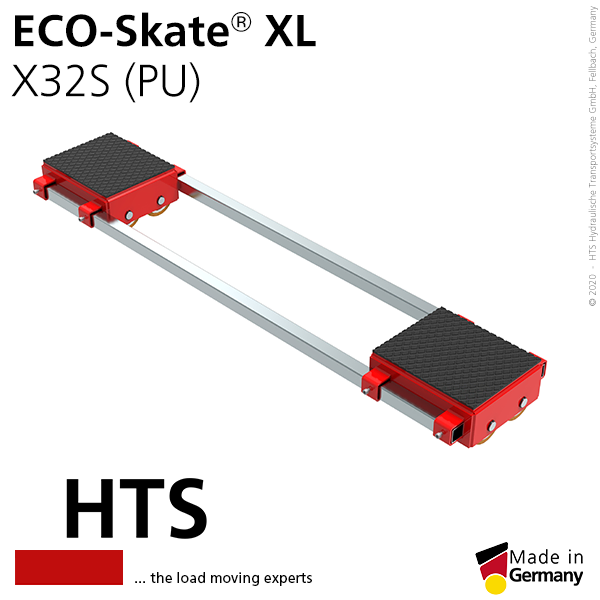

ECO-Skate-XL-X32S-PU-174px

X32S (PU)

Artikelnummer 10.320.02.20
Traglast (kg) 2 x 16000
Maße L x B x H (mm) 456 x 410 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 420 - 1660
Gewicht (kg) 151

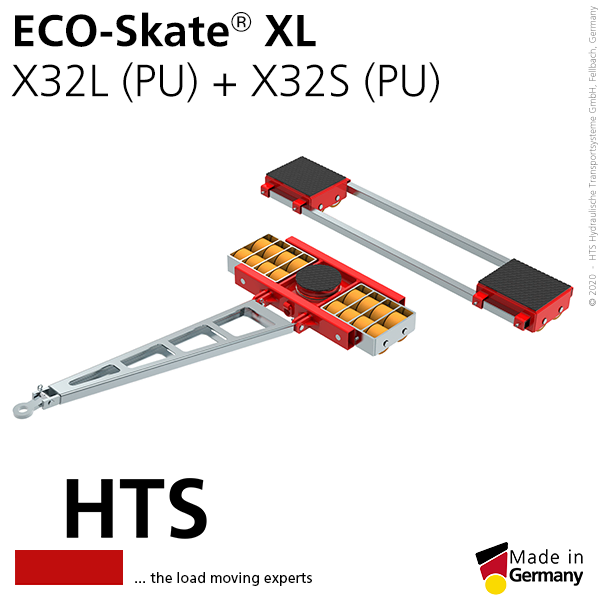

ECO-Skate-XL-X32L-PU-X32S-PU-Set

X32L (PU) + X32S (PU) Set

Artikelnummer 10.320.02.xx
Traglast (kg) 64000

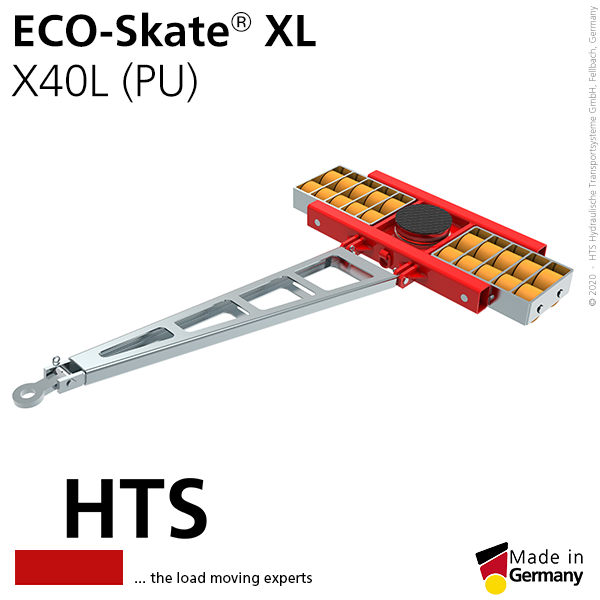

ECO-Skate-XL-X40L-PU

X40L (PU)

Artikelnummer 10.400.02.10
Traglast (kg) 40000
Maße L x B x H (mm) 607 x 1335 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 230

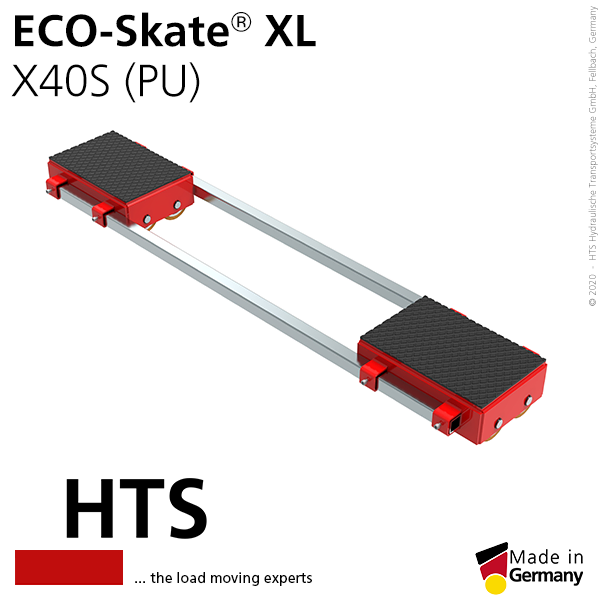

ECO-Skate-XL-X40S-PU

X40S (PU)

Artikelnummer 10.400.02.20
Traglast (kg) 2 x 20000
Maße L x B x H (mm) 456 x 507 x108
Deichsellänge (mm) -
Verstellbarkeit (mm) 550 - 1650
Gewicht (kg) 192

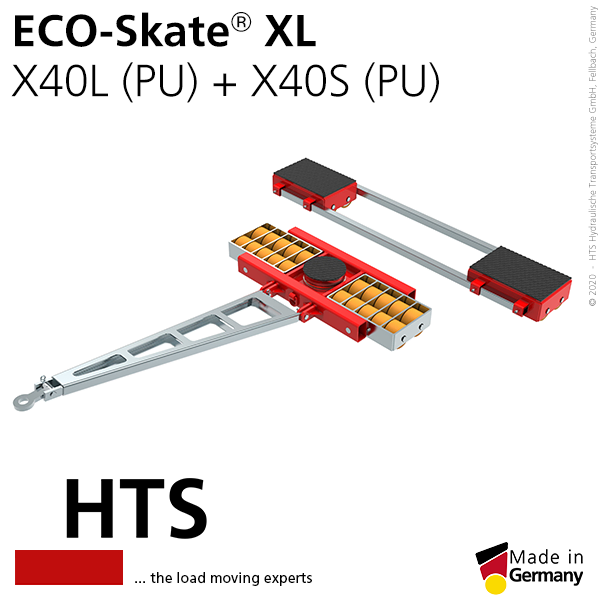

ECO-Skate-XL-X40L-PU-X40S-PU-Set

X40L (PU) + X40S (PU) Set

Artikelnummer 10.400.02.xx
Traglast (kg) 80000

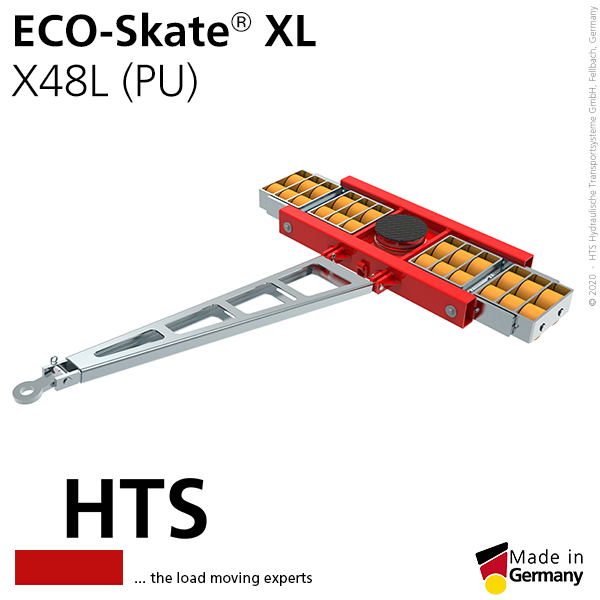

ECO-Skate-XL-X48L-PU

X48L (PU)

Artikelnummer 10.480.02.10
Traglast (kg) 48000
Maße L x B x H (mm) 660 x 1671 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 319

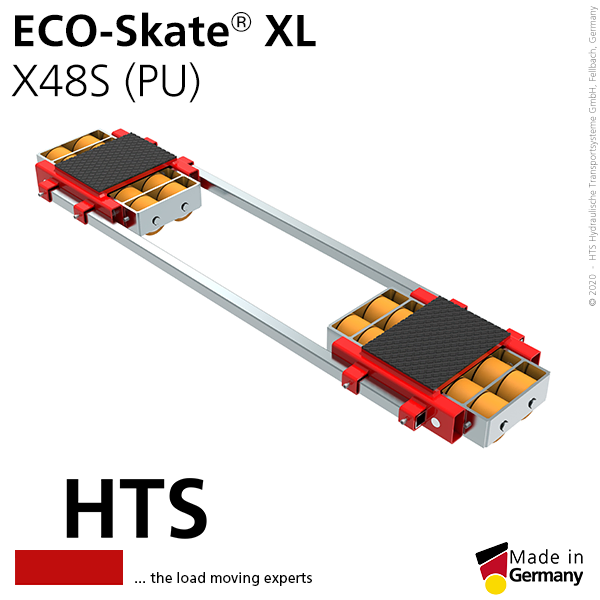

ECO-Skate-XL-X48S-PU

X48S (PU)

Artikelnummer 10.480.02.20
Traglast (kg) 2 x 24000
Maße L x B x H (mm) 579 x 692 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 700 - 1690
Gewicht (kg) 264
ECO-Skate-XL-X48L-PU-X48S-PU-Set

X48L (PU) + X48S (PU) Set

Artikelnummer 10.480.02.xx
Traglast (kg) 96000

X64S (PU)

Artikelnummer 10.640.02.20
Traglast (kg) 2 x 32000
Maße L x B x H (mm) 587 x 898 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 900 - 1600
Gewicht (kg) 328
Bild folgt

X48L (PU) + X64S (PU) Set

Artikelnummer 10.640.02.20 + 10.480.02.10
Traglast (kg) 112000
