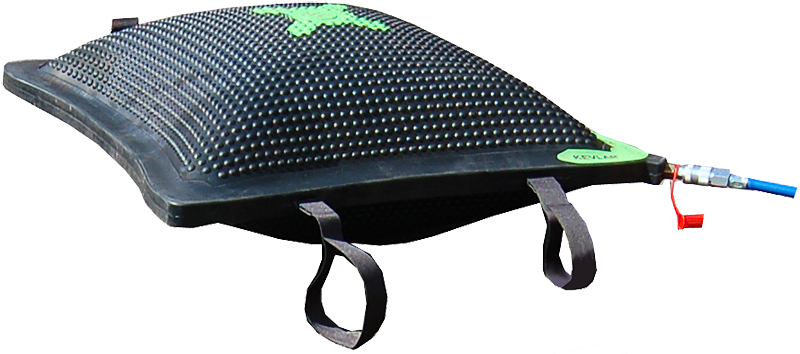

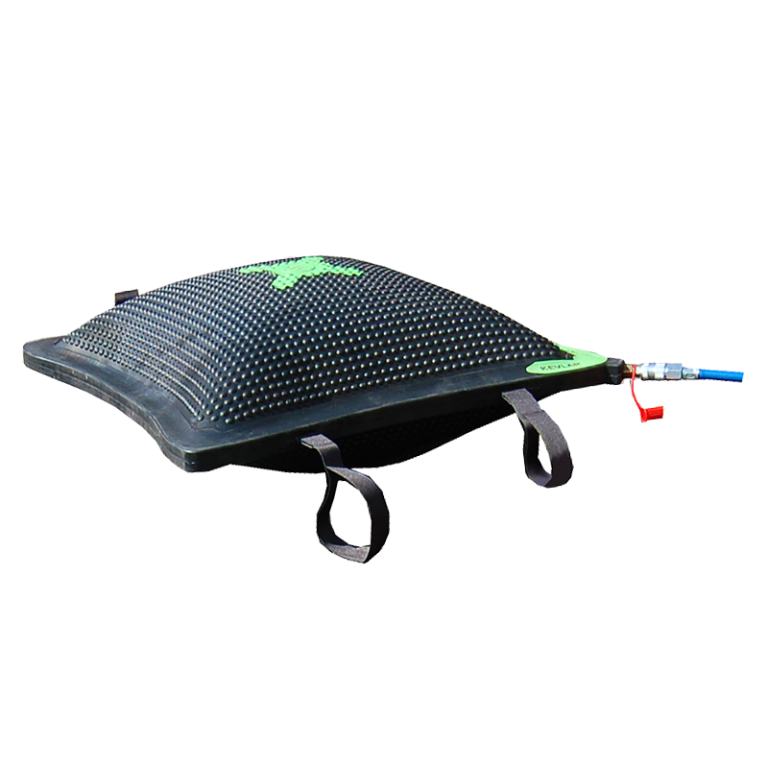

Lifting bags of the series ECO-Jack® AIR are charac­terized by

  • the low instal­lation height, which allows the ECO-Jack AIR lifting bags also fit under the narrowest areas with heights from 30 mm to 32 mm.
  • the equipment with 2 layers Kevlar with neoprene.
  • toothed surfaces on each side of the lifting bag to prevent cargo from slipping.
  • reinforced edges to protect against damage.
  • multi-color hoses that facil­itate the assignment of each cushion in use (see acces­sories).
  • low self-weight for easy placement of the lifting bags.
  • marked center point for easy positioning.
  • safety warnings in bright colors for a long life.

For all areas of appli­cation in which the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

ECO-Jack AIR

AIR 1

Article Number
190.100.010
Max Load
800 kg
Working Pressure
8 bar
Stroke
80 mm
Dimensions: Length x Width x Height
150 x 150 x 25 mm
Weight
0.6 kg
ECO-Jack AIR

AIR 3

Article Number
190.100.030
Max Load
2700 kg
Working Pressure
8 bar
Stroke
130 mm
Dimensions: Length x Width x Height
225 x 225 x 25 mm
Weight
1.3 kg
ECO-Jack AIR

AIR 6

Article Number
190.100.060
Max Load
5500 kg
Max Load at 120 mm
220 kg
Working Pressure
8 bar
Stroke
160 mm
Dimensions: Length x Width x Height
300 x 300 x 25 mm
Weight
2.4 kg
ECO-Jack AIR

AIR 10

Article Number
190.100.100
Max Load
10100 kg
Max Load at 120 mm
1760 kg
Working Pressure
8 bar
Stroke
210 mm
Dimensions: Length x Width x Height
380 x 380 x 25 mm
Weight
3.5 kg
ECO-Jack AIR

AIR 13

Article Number
190.100.130
Max Load
13500 kg
Max Load at 120 mm
3700 kg
Max Load at 190 mm
700 kg
Working Pressure
8 bar
Stroke
250 mm
Dimensions: Length x Width x Height
450 x 450 x 25 mm
Weight
5 kg
ECO-Jack AIR

AIR 20

Article Number
190.100.200
Max Load
21100 kg
Max Load at 120 mm
8200 kg
Max Load at 190 mm
3300 kg
Working Pressure
8 bar
Stroke
300 mm
Dimensions: Length x Width x Height
550 x 550 x 25 mm
Weight
7 kg
ECO-Jack AIR

AIR 25

Article Number
190.100.250
Max Load
25200 kg
Max Load at 120 mm
11400 kg
Max Load at 190 mm
5400 kg
Working Pressure
8 bar
Stroke
340 mm
Dimensions: Length x Width x Height
610 x 610 x 25 mm
Weight
9 kg
ECO-Jack AIR

AIR 32

Article Number
190.100.320
Max Load
33000 kg
Max Load at 120 mm
16000 kg
Max Load at 190 mm
9100 kg
Max Load at 230 mm
6200 kg
Working Pressure
8 bar
Stroke
380 mm
Dimensions: Length x Width x Height
690 x 690 x 25 mm
Weight
11 kg
ECO-Jack AIR

AIR 42

Article Number
190.100.420
Max Load
44600 kg
Max Load at 120 mm
22200 kg
Max Load at 190 mm
14400 kg
Max Load at 230 mm
9800 kg
Working Pressure
8 bar
Stroke
420 mm
Dimensions: Length x Width x Height
780 x 780 x 25 mm
Weight
14 kg
ECO-Jack AIR

AIR 55

Article Number
190.100.550
Max Load
55000 kg
Max Load at 120 mm
31600 kg
Max Load at 190 mm
21200 kg
Max Load at 230 mm
16500 kg
Working Pressure
8 bar
Stroke
470 mm
Dimensions: Length x Width x Height
870 x 870 x 25 mm
Weight
18 kg
ECO-Jack AIR

AIR 69

Article Number
190.100.690
Max Load
70400 kg
Max Load at 120 mm
46000 kg
Max Load at 190 mm
34600 kg
Max Load at 230 mm
28230 kg
Working Pressure
8 bar
Stroke
520 mm
Dimensions: Length x Width x Height
945 x 945 x 26 mm
Weight
22.5 kg
