The following distinguishes the transport trolleys of the ECO-Skate DUO (PU) series:

  • Pulling bar and alignment bar
    The skates of the DUO series come standard with pulling bar and alignment bar. Special lengths on request.
  • Combinable
    All load moving skates of the DUO (PU) series can be combined with each other and with trolleys of the series IDEAL, ROTO and DUO (NY). The total load results from the sum of the individual load capacities.
  • HTS wheels
    The skates are equipped as standard with HTS polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request.
  • Individual adaptions
    can be individually made upon need.

For ISO container transport please check our ECO-Skate ISOCON series.
For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

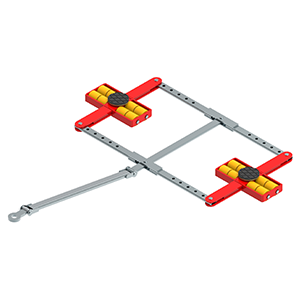

ECO-Skate-DUO-i60D-PU

i60D (PU)

Artikelnummer 10.060.00.30
Traglast (kg) 2 x 3000
Maße L x B x H (mm) 717 x 1581 x 110
Deichsellänge (mm) 170
Verstellbarkeit (mm) 6 x 560 - 1300
Gewicht (kg) 51
Bild folgt

i60D (PU) + i60S (PU) Set

Artikelnummer 10.060.00.xx
Traglast (kg) 12000
Bild folgt

i60D (PU) + i60D (PU) Set

Artikelnummer 10.060.00.xx
Traglast (kg) 12000

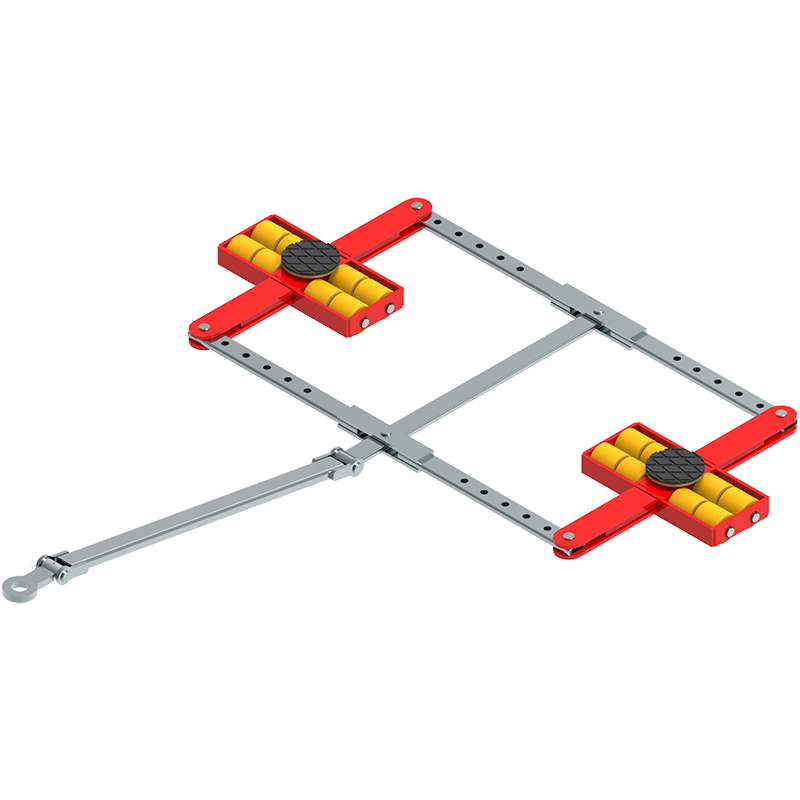

ECO-Skate-DUO-i120D-PU

i120D (PU)

Artikelnummer 10.120.00.30
Traglast (kg) 2 x 6000
Maße L x B x H (mm) 963 x 1784 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) 6 x 560 - 1300
Gewicht (kg) 88
Bild folgt

i120D (PU) + i120D (PU) Set

Artikelnummer 10.120.00.xx
Traglast (kg) 24000

i120D (PU) + i120S (PU) Set

Artikelnummer 10.120.00.xx
Traglast (kg) 24000

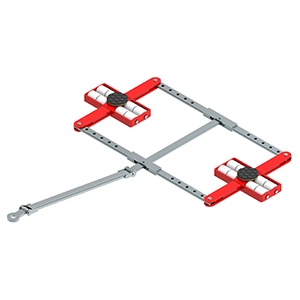

The following distinguishes the transport trolleys of the ECO-Skate DUO (NY) series:

  • Pulling bar and alignment bar
    The skates of the DUO series come standard with pulling bar and alignment bar. Special lengths on request.
  • Combinable
    All load moving skates of the DUO (NY) series can be combined with each other and with trolleys of the series IDEAL, ROTO and DUO (PU). The total load results from the sum of the individual load capacities.
  • HTS nylon wheels
    All Skates come standard with HTS nylon wheels, which have very low rolling resistance. They are made of solid material and not produced by injection molding. As a result, they are particularly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conventional nylon tubes. HTS nylon wheels can also be ordered separately.
  • Individual adaptions
    can be individually made upon need.

For ISO container transport please check our ECO-Skate ISOCON series.
For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Skate-DUO-XL-iN80D-NY

iN80D (NY)

Artikelnummer 10.080.01.30
Traglast (kg) 2 x 4000
Maße L x B x H (mm) 717 x 1581 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) 6 x 560 - 1300
Gewicht (kg) 47
Bild folgt

iN80D (NY) + iN80S (NY) Set

Artikelnummer 10.080.01.xx
Traglast (kg) 16000
Bild folgt

iN80D (NY) + iN80D (NY) Set

Artikelnummer 10.080.01.xx
Traglast (kg) 16000
ECO-Skate-DUO-iN160D-NY

iN160D (NY)

Artikelnummer 10.160.01.30
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 963 x 1784 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) 6 x 560 - 1300
Gewicht (kg) 80
Bild folgt

iN160D (NY) + iN160D (NY) Set

Artikelnummer 10.160.01.xx
Traglast (kg) 32000

iN160D (NY) + iN160S (NY) Set

Artikelnummer 10.160.01.xx
Traglast (kg) 32000

The following distinguishes the transport trolleys of the ECO-Skate DUO XL (PU):

  • Pulling bar and alignment bar
    The skates of the DUO XL series come standard with pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the DUO XL (PU) series can be combined with each other and with trolleys of the series XL, ROTO XL and DUO XL (NY). The total load results from the sum of the individual load capacities.
  • HTS wheels
    The skates are equipped as standard with HTS polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request
  • Individual adaptions
    can be individually made upon need.

For ISO container transport please check our ECO-Skate ISOCON series.
For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Skate-DUO-XL-X16D-PU

X16D (PU)

Artikelnummer 10.160.02.30
Traglast (kg) 2 x 8000
Wheel size (mm) Ø 140 x 85
Number of wheels 2 x 4
Load area (mm) 2 x Ø 170
Maße L x B x H (mm) 1265 x 1927 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) 5 x 750 - 1550
Gewicht (kg) 190
Bild folgt

X16D (PU) + X16D (PU) Set

Artikelnummer 10.160.02.xx
Traglast (kg) 32000
Bild folgt

X16D (PU) + X16S (PU) Set

Artikelnummer 10.160.02.xx
Traglast (kg) 32000
ECO-Skate-DUO-X32D-PU

X32D (PU)

Artikelnummer 10.320.02.30
Traglast (kg) 2 x 16000
Maße L x B x H (mm) 1847 x 2624 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) 4 x 1300 - 1900
Gewicht (kg) 399
Bild folgt

X32D (PU) + X32S (PU) Set

Artikelnummer 10.320.02.xx
Traglast (kg) 64000
Bild folgt

X32D (PU) + X32D (PU) Set

Artikelnummer 10.320.02.xx
Traglast (kg) 64000
ECO-Skate-DUO-X48D-PU

X48D (PU)

Artikelnummer 10.480.02.30
Traglast (kg) 2 x 24000
Wheel size (mm) Ø 140 x 85
Number of wheels 2 x 12
Load area (mm) 2 x Ø 220
Maße L x B x H (mm) 1847 x 2831 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) 4 x 1300 - 1900
Gewicht (kg) 450
Bild folgt

X48D (PU) + X48D (PU) Set

Artikelnummer 10.480.02.xx
Traglast (kg) 96000
Bild folgt

X48D (PU) + X48S (PU) Set

Artikelnummer 10.480.02.xx
Traglast (kg) 96000

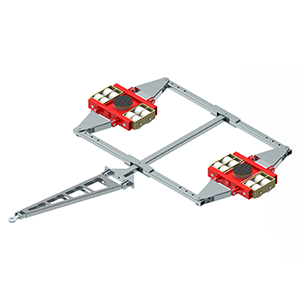

The following distinguishes the transport trolleys of the ECO-Skate DUO XL (NY) series:

  • Pulling bar and alignment bar
    The skates of the DUO XL series come standard with pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the DUO XL (NY) series can be combined with each other and with trolleys of the series XL, ROTO XL and DUO XL (PU). The total load results from the sum of the individual load capacities.
  • HTS nylon wheels
    All Skates come standard with HTS nylon wheels, which have very low rolling resistance. They are made of solid material and not produced by injection molding. As a result, they are particularly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conventional nylon tubes. HTS nylon wheels can also be ordered separately.
  • Individual adaptions
    can be individually made upon need.

For ISO container transport please check our ECO-Skate ISOCON series.
For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Skate-DUO-XN20D-NY

XN20D (NY)

Artikelnummer 10.200.03.30
Traglast (kg) 2 x 10000
Maße L x B x H (mm) 1265 x 1927 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) 5 x 750 - 1550
Gewicht (kg) 184
Bild folgt

XN20D (NY) + XN20S (NY) Set

Artikelnummer 10.200.03.xx
Traglast (kg) 40000
Bild folgt

XN20D (NY) + XN20D (NY) Set

Artikelnummer 10.200.03.xx
Traglast (kg) 40000
ECO-Skate-DUO-XN40D-NY

XN40D (NY)

Artikelnummer 10.400.03.30
Traglast (kg) 2 x 20000
Maße L x B x H (mm) 1847 x 2624 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) 4 x 1300 - 1900
Gewicht (kg) 387
Bild folgt

XN40D (NY) + XN40D (NY) Set

Artikelnummer 10.400.03.xx
Traglast (kg) 80000
Bild folgt

XN40D (NY) + XN40S (NY) Set

Artikelnummer 10.400.03.xx
Traglast (kg) 80000

The following distinguishes the transport trolleys of the ECO-Skate CR series:

  • Pulling and alignment bars
    The transport skates of the CR series are delivered as standard with pulling and alignment bars. Special lengths on request.
  • Nickel-plated surface and low-wear wheels
    for use in clean rooms, the food industry and pharmaceutical industry.
  • HTS high quality, non-marking nylon wheels
    All skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resistance. They are made of solid material and not produced by injection molding. As a result, they are particularly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conventional nylon tubes. HTS nylon wheels can also be ordered separately.
  • Combinable
    All transport skates with the same hight of the CR series can be combined with each other. The total load consists of the sum of the individual load capacities.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

Bild folgt

iN80D-CR

Artikelnummer 12.080.01.30
Traglast (kg) 2 x 4000
Maße L x B x H (mm) 697 x 1581 x 110
Deichsellänge (mm) 1250
Verstellbarkeit (mm) 6 x 560 - 1300
Gewicht (kg) 47
Bild folgt

iN160D-CR

Artikelnummer 12.160.01.30
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 943 x 1784 x 110
Deichsellänge (mm) 1250
Verstellbarkeit (mm) 6 x 560 - 1300
Gewicht (kg) 80
