ECO-Skate ISOCON

Container trolleys

ECO-Skate load moving skates are user-friendly, robust, virtually maintenance-free and versatile in their selection. The rollers are used  in container movement.

Containertransportfahrwerke ECO-Skate ISOCON XL (PU)

ECO-Skate ISOCON (PU)

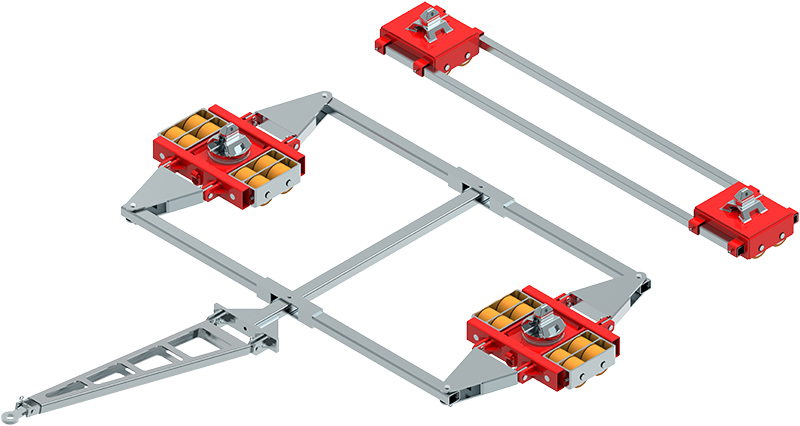

The ECO-Skate ISOCON transport skates are ideally suited for ISO container transport. The trolleys can also be adapted for special dimensions. All ECO-Skate ISOCON container skates are equipped with high-quality HTS polyurethane wheels. With ECO-Skate ISOCON container skates with roller size of Ø85 mm, the container cones prevent the container from slipping off. Maximum speed is 2 km/h.

Typ IC120D/S  TLS = Twist Lock System / Container transport.

*TLS = Twist Lock System / Container transport.

ECO-Skate-ISOCON-IC60S-PU

IC60S (PU)

Artikelnummer 10.060.00.25
Traglast (kg) 2 x 3000
Wheel size (mm) Ø 85 x 87
Number of wheels 2 x 4
Load area (mm) 120 x 220 + Kegel
Maße L x B x H (mm) 291 x 2500 x 102/162
Deichsellänge (mm) -
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 35
Fact sheet (PDF)
ECO-Skate-ISOCON-IC60D-PU

IC60D (PU)

Artikelnummer 10.060.00.35
Traglast (kg) 2 x 3000
Maße L x B x H (mm) 717 x 2540 x 102/162
Deichsellänge (mm) 1250
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 60
Fact sheet (PDF)
ECO-Skate-ISOCON-IC60D-PU-IC60S-PU-Set

IC60D (PU) +IC60S (PU) Set

Artikelnummer 10.060.00.xx
Traglast (kg) 12000

IC120S (PU)

Artikelnummer 10.120.00.25
Traglast (kg) 2 x 6000
Maße L x B x H (mm) 291 x 2641 x 102/162
Deichsellänge (mm) -
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 50
Fact sheet (PDF)
ECO-Skate-ISOCON-IC120S-PU

IC120D (PU)

Artikelnummer 10.120.00.35
Traglast (kg) 2 x 6000
Maße L x B x H (mm) 963 x 2740 x 102/162
Deichsellänge (mm) 1250
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 88
Fact sheet (PDF)
ECO-Skate-ISOCON-IC120D-PU-IC120S-PU-Set

IC120D (PU) + IC120S (PU) Set

Artikelnummer 10.120.00.xx
Traglast (kg) 24000
Containertransportfahrwerke ECO-Skate ISOCON XL (PU)

ECO-Skate ISOCON XL (PU)

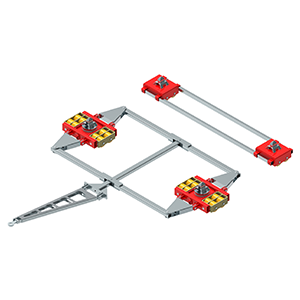

The ECO-Skate ISOCON XL transport skates are ideally suited for ISO container transport. The trolleys can also be adapted for special dimensions. All ISOCON XL container skates are equipped with high-quality HTS polyurethane wheels. With ECO-Skate ISOCON XL container transport skates with the roller size of Ø140 mm, slipping is secured with a container twist lock system (TLS). Maximum speed is 2 km/h.

ECO-Skate-ISOCON-XL-ICX16S-PU

ICX16S (PU)

Artikelnummer 10.160.00.25
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 456 x 2474 x 220/298
Deichsellänge (mm) -
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 104
Fact sheet (PDF)
ECO-Skate-ISOCON-XL-ICX16D-PU

ICX16D (PU)

Artikelnummer 10.160.02.35
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 1275 x 2636 x 220/298
Deichsellänge (mm) 1620
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 215
Fact sheet (PDF)
ECO-Skate-ISOCON-XL-ICX16D-PU-ICX60S-PU-Set

ICX16D (PU) + ICX16S (PU) Set

Artikelnummer 10.160.xx.xx
Traglast (kg) 32000
ECO-Skate-ISOCON-XL-ICX32S-PU

ICX32S (PU)

Artikelnummer 10.320.02.25
Traglast (kg) 2 x 16000
Maße L x B x H (mm) 456 x 2669 x 220/298
Deichsellänge (mm) -
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 199
Fact sheet (PDF)
ECO-Skate-ISOCON-XL-ICX32D-PU

ICX32D (PU)

Artikelnummer 10.320.02.35
Traglast (kg) 2 x 16000
Maße L x B x H (mm) 1447 x 2983 x 220/298
Deichsellänge (mm) 1620
Abstand Kegelmitte (mm) 2260
Gewicht (kg) 415
Fact sheet (PDF)
ECO-Skate-ISOCON-XL-ICX32D-PU-ICX32S-PU-Set

ICX32D (PU) + ICX32S (PU) Set

Artikelnummer 10.320.02.xx
Traglast (kg) 64000
