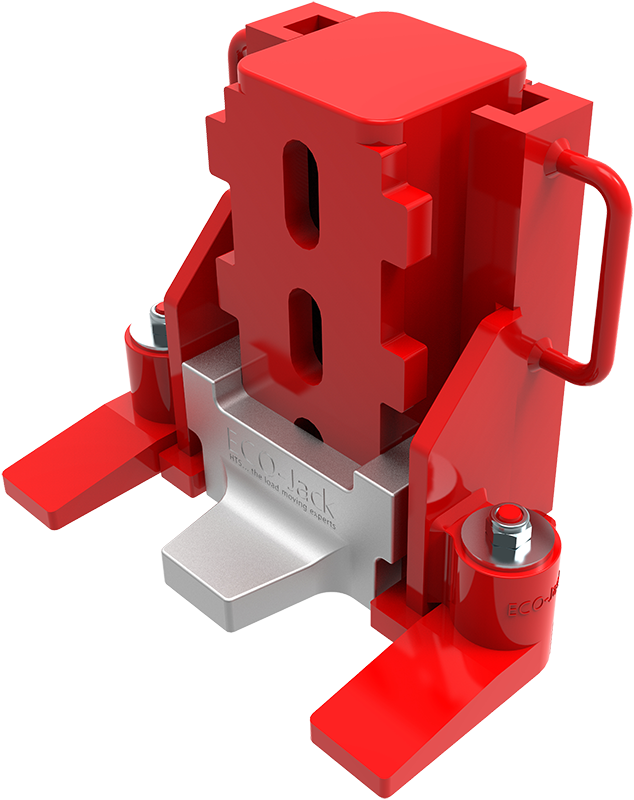

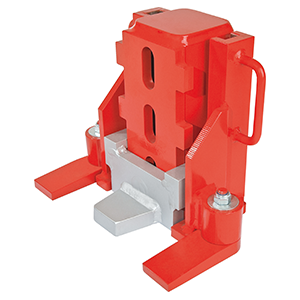

Hydraulic lifting devices of the ECO-Jack® XR-Series are characterized by

  • the patented lifting claw. It ensures a safe lifting of the load and can be adjusted with one hand without tilting movement.
  • an integrated spring return system for automatic retraction of the lifting unit to the starting position.
  • minimal self-weight. Improved construction and high-quality material have reduced weight by up to 30% compared to similar devices with a built-in hydraulic pump.
  • Precision milled guides made of high resistant and high quality material that guarantee precise lifting and lowering movements and a long service life.
  • Strong swiveling legs to secure the load to be lifted. Tilting of the machine lifter is prevented.
  • hydraulic hose couplers: External pumps can be connected to the drip-free hydraulic nipple.
  • Side-mounted handles: are not over at the top and do not need to be removed when the top plate is used for lifting.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Jack-Maschinenheber-XR-EJ45-4XR

EJ45-4XR

Artikelnummer 01.045.41.01
Traglast (kg) 4500
Arbeitsdruck (bar) 700
Ansetzhöhe (mm) 15
Verstellbarkeit (mm) 4 x 58
Hubhöhe (mm) 133
Maße (mm) 183 x 228 x 252
Gewicht (kg) 13.5
ECO-Jack-Maschinenheber-XR-EJ100-3XR

EJ100-3XR

Artikelnummer 01.100.31.01
Traglast (kg) 10000
Arbeitsdruck (bar) 700
Ansetzhöhe (mm) 20
Verstellbarkeit (mm) 3 x 75
Hubhöhe (mm) 129
Maße (mm) 219 x 277 x 250
Gewicht (kg) 23
ECO-Jack-Maschinenheber-XR-EJ150-3XR

EJ150-3XR

Artikelnummer 01.150.31.01
Traglast (kg) 15000
Arbeitsdruck (bar) 700
Ansetzhöhe (mm) 25
Verstellbarkeit (mm) 3 x 97
Hubhöhe (mm) 155
Maße (mm) 245 x 331 x 316
Gewicht (kg) 40
ECO-Jack-Maschinenheber-XR-EJ230-3XR

EJ230-3XR

Artikelnummer 01.230.31.01
Traglast (kg) 23000
Arbeitsdruck (bar) 700
Ansetzhöhe (mm) 30
Verstellbarkeit (mm) 3 x 100
Hubhöhe (mm) 155
Maße (mm) 269 x 392 x 330
Gewicht (kg) 61
ECO-Jack-Maschinenheber-XR-EJ300-3XR

EJ300-3XR

Artikelnummer 01.300.31.01
Traglast (kg) 30000
Arbeitsdruck (bar) 700
Ansetzhöhe (mm) 30
Verstellbarkeit (mm) 3 x 100
Hubhöhe (mm) 155
Maße (mm) 269 x 392 x 330
Gewicht (kg) 62
ECO-Jack-Maschinenheber-XR-EJ500-3XR

EJ500-3XR

Artikelnummer 01.500.31.01
Traglast (kg) 50000
Arbeitsdruck (bar) 700
Ansetzhöhe (mm) 35
Verstellbarkeit (mm) 3 x 125
Hubhöhe (mm) 155
Maße (mm) 375 x 544 x 405
Gewicht (kg) 173

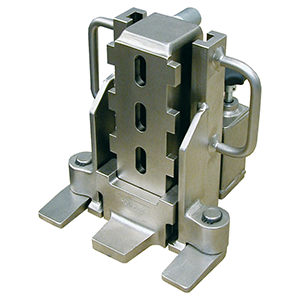

Hydraulic lift­ing devices of the ECO-Jack CR-Series are char­ac­ter­ized by

  • the patent­ed lift­ing claw. It ensures a safe lift­ing of the load and can be adjust­ed with one hand with­out tilt­ing move­ment.
  • a min­i­mal self-weight. Improved con­struc­tion and high-qual­i­ty mate­r­i­al have reduced weight by up to 20% com­pared to sim­i­lar devices.
  • Pre­ci­sion milled guides made of high resis­tant and high qual­i­ty mate­r­i­al that guar­an­tee pre­cise lift­ing and low­er­ing move­ments and a long ser­vice life.
  • a pump unit which can be swiveled by approx. 225°. It allows the full pump stroke from any posi­tion.
  • a fine­ly dosed release valve, with which the load can be low­ered pre­cise­ly and the low­er­ing speed can be pre­cise­ly con­trolled.
  • strong swivel­ing legs to secure the load to be lift­ed. Tilt­ing of the machine lifter is pre­vent­ed.
  • an exter­nal hose cou­pler with the SX-CR type. Exter­nal pumps can be con­nect­ed with the drip-free hydraulic nip­ple.
  • side-mount­ed han­dles that allow full stroke move­ment of the 225º rotat­able pump unit from all posi­tions. The han­dles are not over at the top and do not need to be removed when the top plate is used for lift­ing.

For all areas of appli­ca­tion in which the stan­dard range is insuf­fi­cient, we design spe­cial solu­tions that are indi­vid­u­al­ly tai­lored to the cus­tomer needs.

EJ60-4SX-CR

Artikelnummer 03.060.41.13
Traglast (kg) 6000
Arbeitsdruck (bar) 520
Ansetzhöhe (mm) 15
Verstellbarkeit (mm) 4 x 58
Hubhöhe (mm) 140
Maße (mm) 216 x 228 x 252
Gewicht (kg) 13
Bild folgt

EJ100-3SX-CR

Artikelnummer 03.100.41.13
Traglast (kg) 10000
Arbeitsdruck (bar) 520
Ansetzhöhe (mm) 20
Verstellbarkeit (mm) 3 x 81
Hubhöhe (mm) 140
Maße (mm) 271 x 277 x 250
Gewicht (kg) 22
