Hydraulic lifting devices of the ECO-Jack® XR-Series are charac­terized by

  • the patented lifting claw. It ensures a safe lifting of the load and can be adjusted with one hand without tilting movement.
  • an integrated spring return system for automatic retraction of the lifting unit to the starting position.
  • minimal self-weight. Improved construction and high-quality material have reduced weight by up to 30% compared to similar devices with a built-in hydraulic pump.
  • Precision milled guides made of high resistant and high quality material that guarantee precise lifting and lowering movements and a long service life.
  • Strong swiveling legs to secure the load to be lifted. Tilting of the machine lifter is prevented.
  • hydraulic hose couplers: External pumps can be connected to the drip-free hydraulic nipple.
  • Side-mounted handles: are not over at the top and do not need to be removed when the top plate is used for lifting.

For all areas of appli­cation in which the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

ECO-Jack-Maschinenheber-XR-EJ45-4XR

EJ45-4XR

Article Number
01.045.41.01
Max Load
4500 kg
Working Pressure
700 bar
Claw Height
15 mm
Claw Length
40 mm
Stroke
133 mm
Adjustability
4 x 58 mm
Dimensions: Length x Width x Height
183 x 228 x 252 mm
Weight
13.5 kg
ECO-Jack-Maschinenheber-XR-EJ100-3XR

EJ100-3XR

Article Number
01.100.31.01
Max Load
10000 kg
Working Pressure
700 bar
Claw Height
20 mm
Claw Length
45 mm
Stroke
129 mm
Adjustability
3 x 75 mm
Dimensions: Length x Width x Height
219 x 277 x 250 mm
Weight
23 kg
ECO-Jack-Maschinenheber-XR-EJ150-3XR

EJ150-3XR

Article Number
01.150.31.01
Max Load
15000 kg
Working Pressure
700 bar
Claw Height
25 mm
Claw Length
55 mm
Stroke
155 mm
Adjustability
3 x 97 mm
Dimensions: Length x Width x Height
245 x 331 x 316 mm
Weight
40 kg
ECO-Jack-Maschinenheber-XR-EJ230-3XR

EJ230-3XR

Article Number
01.230.31.01
Max Load
23000 kg
Working Pressure
700 bar
Claw Height
30 mm
Claw Length
60 mm
Stroke
155 mm
Adjustability
3 x 100 mm
Dimensions: Length x Width x Height
269 x 392 x 330 mm
Weight
61 kg
ECO-Jack-Maschinenheber-XR-EJ300-3XR

EJ300-3XR

Article Number
01.300.31.01
Max Load
30000 kg
Working Pressure
700 bar
Claw Height
30 mm
Claw Length
60 mm
Stroke
155 mm
Adjustability
3 x 100 mm
Dimensions: Length x Width x Height
269 x 392 x 330 mm
Weight
62 kg

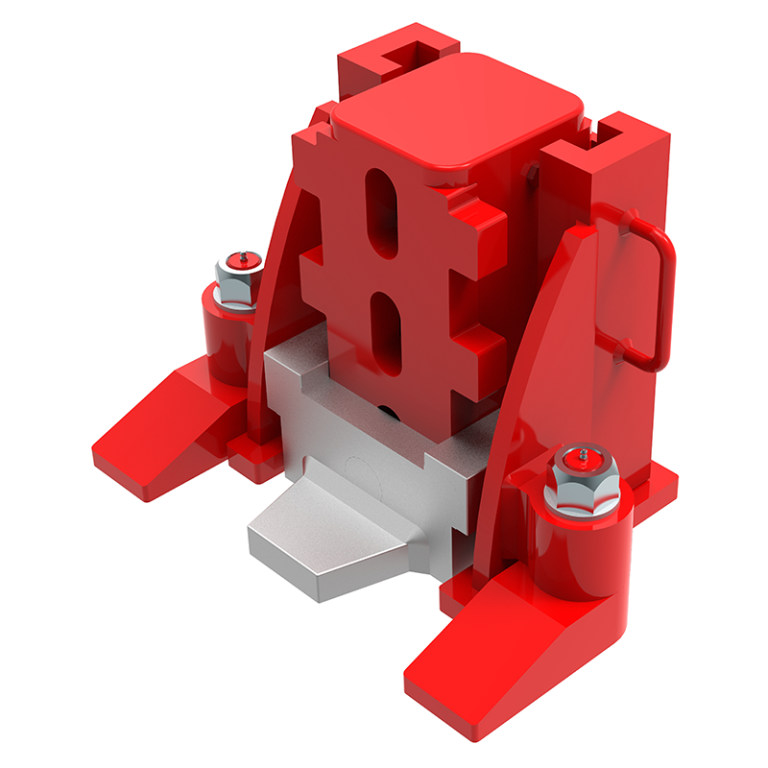

ECO-Jack-Maschinenheber-XR-EJ500-3XR

EJ500-3XR

Article Number
01.500.31.01
Max Load
50000 kg
Working Pressure
700 bar
Claw Height
35 mm
Claw Length
80 mm
Stroke
155 mm
Adjustability
3 x 125 mm
Dimensions: Length x Width x Height
375 x 544 x 405 mm
Weight
173 kg
