The following distin­guishes the ECO-Skate® eMotion:

  • Compact design with small external dimen­sions
  • Simple steering with only one joystick
  • Powerful digitally controlled engines
  • Any existing XL-series can be combined
  • Ideal for appli­ca­tions when space is narrow (no need for pull means)

ECO-Skate eMotion 10

eMotion 10

Article Number
10.050.51.10
Max Load: Load Areas x Max Load
5000 kg
Load Area Diameter
Ø 150 mm
Dimensions: Length x Width x Height
866 x 861 x 110 mm
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Weight
100 kg
Bild folgt

iN80S

Article Number
10.080.01.20
Max Load: Load Areas x Max Load
2 x 4000 kg
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Wheels
2 x 4 Stk.
Weight
25 kg
Bild folgt

eMotion 10 + iN80S Set

Article Number
10.080.01.20 + 10.050.51.10
Max Load: Load Areas x Max Load
10000 kg
ECO-Skate eMotion 40

eMotion 40

Article Number
10.200.51.10
Max Load: Load Areas x Max Load
20000 kg
Load Area Diameter
Ø 220 mm
Dimensions: Length x Width x Height
1399 x 1146 x 180 mm
Wheels + Support Wheels
8 + 2 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Weight
300 kg
ECO-Skate eMotion XN20S-B

XN20S-B

Article Number
10.200.55.20
Max Load: Load Areas x Max Load
2 x 10000 kg
Load Areas x (Length x Width)
2 x (316 x 188) mm
Adjustability
220 – 1800 mm
Dimensions: Length x Width x Height
464 x 215 x 180 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
80 kg

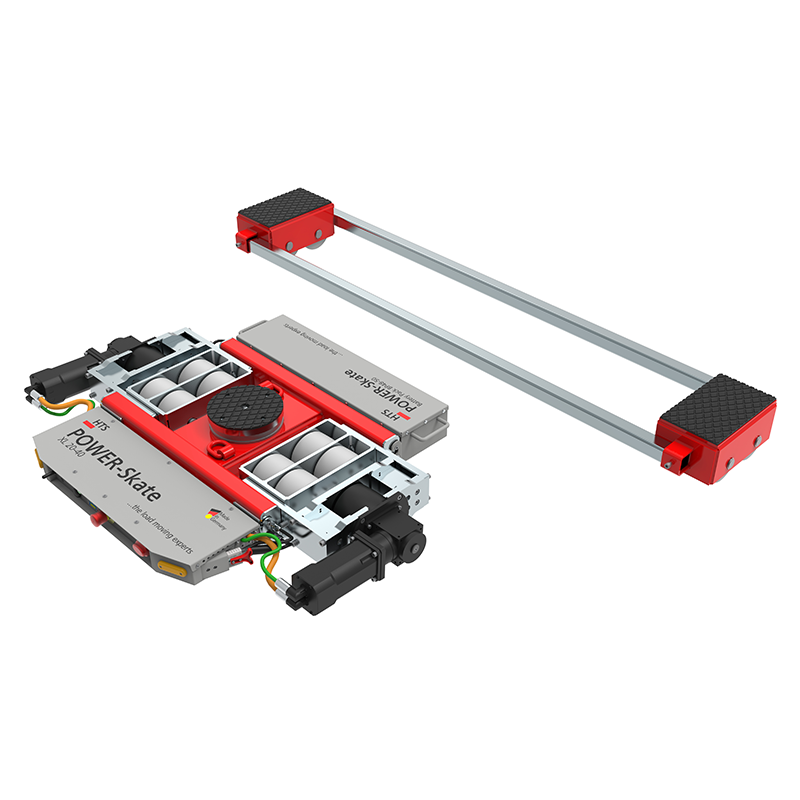

ECO-Skate eMotion 40 + XN20S-B Set

eMotion 40 + XN20S-B Set

Article Number
10.200.xx.xx
Max Load: Load Areas x Max Load
40000 kg
