The fol­low­ing dis­tin­guish­es the trans­port trol­leys of the ECO-Skate MINI (NY) series:

  • Pulling bar and align­ment bar
    The trans­port trol­leys of the MINI series come stan­dard with pulling bar and align­ment bar. Spe­cial lengths on request.
  • Low weight
    Prac­ti­cal grips, which are attached to all sus­pen­sions, and low weight makes the MINI series a flex­i­ble com­pan­ion.
  • Can be com­bined
    All trans­port trol­leys of the MINI series can be com­bined with one anoth­er as desired. The total load results from the sum of the indi­vid­ual load capac­i­ties.
  • HTS wheels
    The Skates are equipped as stan­dard with HTS high qual­i­ty nylon wheels, which can also be ordered sep­a­rate­ly.

For all areas of appli­ca­tion in which the stan­dard range from the stan­dard range is insuf­fi­cient, we design spe­cial solu­tions that are indi­vid­u­al­ly tai­lored to the cus­tomer.

ECO-Skate MINI MN25L (NY)

MN25L (NY)

Artikelnummer 10.025.08.10
Traglast (kg) 2500
Maße L x B x H (mm) 250 x 329 x 60
Deichsellänge (mm) 1000
Gewicht (kg) 9.5
ECO-Skate MINI MN25S (NY)

MN25S (NY)

Artikelnummer 10.025.08.20
Traglast (kg) 2 x 1250
Maße L x B x H (mm) 162 x 114 x 60
Verstellbarkeit (mm) 116 - 690
Gewicht (kg) 4.65
ECO-Skate MINI MN25L (NY) + MN25S (NY)

MN25L (NY) + MN25S (NY) Set

Artikelnummer 10.025.08.xx
Traglast (kg) 5000
ECO-Skate MINI MN50L (NY)

MN50L (NY)

Artikelnummer 10.050.08.10
Traglast (kg) 5000
Maße L x B x H (mm) 250 x 533 x 60
Deichsellänge (mm) 1000
Gewicht (kg) 12.6
ECO-Skate MINI MN50S (NY)

MN50S (NY)

Artikelnummer 10.050.08.20
Traglast (kg) 4 x 1250
Maße L x B x H (mm) 250 x 533 x 60
Deichsellänge (mm) 1000
Gewicht (kg) 12.6
ECO-Skate MINI MN50L (NY) + MN50S (NY)

MN50L (NY) + MN50S (NY) Set

Artikelnummer 10.050.08.xx
Traglast (kg) 10000

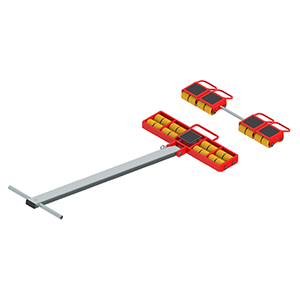

The following distinguishes the transport trolleys of the ECO-Skate MINI (PU) series:

  • Pulling bar and alignment bar
    The transport trolleys of the MINI series come standard with pulling bar and alignment bar. Special lengths on request.
  • Low weight
    Practical grips, which are attached to all suspensions, and low weight makes the MINI series a flexible companion.
  • Can be combined
    All transport trolleys of the MINI series can be combined with one another as desired. The total load results from the sum of the individual load capacities.
  • HTS wheels
    The Skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request.

For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer.

491277104263374

M25L (PU)

Artikelnummer 10.025.07.10
Traglast (kg) 2500
Maße L x B x H (mm) 250 x 329 x 60
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 10.5
ECO-Skate-MINI-M25S-PU

M25S (PU)

Artikelnummer 10.025.07.20
Traglast (kg) 2 x 1250
Maße L x B x H (mm) 162 x 114 x 60
Deichsellänge (mm) -
Verstellbarkeit (mm) 114 - 690
Gewicht (kg) 5.6
ECO-Skate-MINI-M25L-PU-M25S-PU-Set

M25L (PU) + M25S (PU) Set

Artikelnummer 10.025.07.xx
Traglast (kg) 5000
ECO-Skate-MINI-M50L-PU

M50L (PU)

Artikelnummer 10.050.07.10
Traglast (kg) 5000
Maße L x B x H (mm) 250 x 533 x 60
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 14.6
ECO-Skate-MINI-M50S-PU

M50S (PU)

Artikelnummer 10.050.07.20
Traglast (kg) 4 x 1250
Maße L x B x H (mm) 163 x 116 x 60
Deichsellänge (mm) -
Verstellbarkeit (mm) 348 - 690
Gewicht (kg) 10
ECO-Skate-MINI-M50L-PU-M50S-PU-Set

M50L (PU) + M50S (PU) Set

Artikelnummer 10.050.07.xx
Traglast (kg) 10000

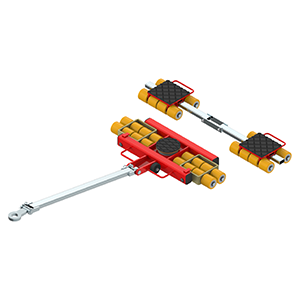

The following distinguishes the transport trolleys of the ECO-Skate IDEAL (PU) series:

  • Pulling bar and alignment bar
    The skates of the IDEAL series come standard with pulling bar and alignment bar. Special lengths on request.
  • Foldable alignment bar
    The alignment bar of the i60S, i90S and i120S can be folded.
  • Combineable
    All load moving skates of the IDEAL series can be combined with each other and with trolleys of the series IDEAL (NY), ROTO and DUO. The total load results from the sum of the individual load capacities.
  • HTS wheels
    The skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request.

For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Skate-IDEAL-i30L-PU

i30L (PU)

Artikelnummer 10.030.00.10
Traglast (kg) 3000
Maße L x B x H (mm) 238 x 268 x 110
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 13.5
ECO-Skate-IDEAL-i30S-PU

i30S (PU)

Artikelnummer 10.030.00.20
Traglast (kg) 2 x 1500
Maße L x B x H (mm) 246 x 120 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 120 - 880
Gewicht (kg) 14
ECO-Skate-IDEAL-i30L-PU-i30S-PU-Set

i30L (PU) + i30S (PU) Set

Artikelnummer 10.030.00.xx
Traglast (kg) 6000
ECO-Skate-IDEAL-i60L-PU-174px

i60L (PU)

Artikelnummer 10.060.00.10
Traglast (kg) 6000
Maße L x B x H (mm) 339 x 483 x 110
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 26
ECO-Skate-IDEAL-i60S-PU

i60S (PU)

Artikelnummer 10.060.00.20
Traglast (kg) 2 x 3000
Maße L x B x H (mm) 291 x 220 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 420 - 1100
Gewicht (kg) 29

i60L (PU) + i60S (PU) Set

Artikelnummer 10.060.00.xx
Traglast (kg) 12000
ECO-Skate-IDEAL-i90L-PU

i90L (PU)

Artikelnummer 10.090.00.10
Traglast (kg) 9000
Maße L x B x H (mm) 258 x 780 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 57
ECO-Skate-IDEAL-i90S-PU

i90S (PU)

Artikelnummer 10.090.00.20
Traglast (kg) 2 x 4500
Maße L x B x H (mm) 295 x 295 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 460 - 1145
Gewicht (kg) 36
ECO-Skate-IDEAL-i90L-PU-i90S-PU-Set

i90L (PU) + i90S (PU) Set

Artikelnummer 10.090.00.xx
Traglast (kg) 18000
ECO-Skate-IDEAL-i120L-PU

i120L (PU)

Artikelnummer 10.120.00.10
Traglast (kg) 12000
Maße L x B x H (mm) 528 x 982 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 68
ECO-Skate-IDEAL-i120S-PU

i120S (PU)

Artikelnummer 10.120.00.20
Traglast (kg) 2 x 6000
Maße L x B x H (mm) 291 x 382 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 560 - 1095
Gewicht (kg) 45
ECO-Skate-IDEAL-i120L-PU-i120S-PU-Set-174px

i120L (PU) + i120S (PU) Set

Artikelnummer 10.120.00.xx
Traglast (kg) 24000
ECO-Skate-IDEAL-i150L-PU

i150L (PU)

Artikelnummer 10.150.00.10
Traglast (kg) 15000
Maße L x B x H (mm) 568 x 1192 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 99
ECO-Skate-IDEAL-i150S-PU

i150S (PU)

Artikelnummer 10.150.00.20
Traglast (kg) 2 x 7500
Maße L x B x H (mm) 291 x 500 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 695 - 1403
Gewicht (kg) 67
ECO-Skate-IDEAL-i150L-PU-150S-PU-Set

i150L (PU) + i150S (PU) Set

Artikelnummer 10.150.00.xx
Traglast (kg) 30000

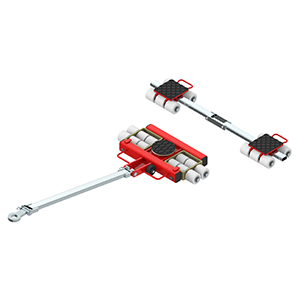

The following distinguishes the ECO-Skate IDEAL (NY) transport trolleys:

  • Pulling bar and alignment bar
    The skates of the IDEAL series come standard with pulling bar and alignment bar. Special lengths on request.
  • Foldable alignment bar
    The alignment bars of the iN80S, iN120S and iN160S are foldable.
  • Combinable
    All transport load moving skates of the IDEAL (NY) series can be combined with each other and with skates of the IDEAL, ROTO and DUO series. The total load results from the sum of the individual load capacities.
  • HTS nylon wheels
    All Skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resistance. They are made of solid material and not produced by injection molding. As a result, they are particularly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conventional nylon tubes. HTS nylon wheels can also be ordered separately.

For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer.

ECO-Skate-IDEAL-iN40L-NY

iN40L (NY)

Artikelnummer 10.040.01.10
Traglast (kg) 4000
Maße L x B x H (mm) 238 x 268 x 110
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 12
ECO-Skate-IDEAL-iN40S-NY

iN40S (NY)

Artikelnummer 10.040.01.20
Traglast (kg) 2 x 2000
Maße L x B x H (mm) 246 x 12 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 265 - 1.000
Gewicht (kg) 12
ECO-Skate-IDEAL-iN40L-NY-iN40S-NY-Set

iN40L (NY) + iN40S (NY) Set

Artikelnummer 10.040.01.xx
Traglast (kg) 8000
ECO-Skate-IDEAL-iN80L-NY

iN80L (NY)

Artikelnummer 10.080.01.10
Traglast (kg) 8000
Maße L x B x H (mm) 339 x 483 x 110
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 21
ECO-Skate-IDEAL-iN80S-NY

iN80S (NY)

Artikelnummer 10.080.01.20
Traglast (kg) 2 x 4000
Maße L x B x H (mm) 291 x 220 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 420 - 1100
Gewicht (kg) 25
ECO-Skate-IDEAL-iN80L-NY-iN80S-NY-Set

iN80L (NY) + iN80S (NY) Set

Artikelnummer 10.080.01.xx
Traglast (kg) 16000
ECO-Skate-IDEAL-iN120L-NY

iN120L (NY)

Artikelnummer 10.120.01.10
Traglast (kg) 12000
Maße L x B x H (mm) 528 x 780 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 50
ECO-Skate-IDEAL-iN120S-NY-174px

iN120S (NY)

Artikelnummer 10.120.01.20
Traglast (kg) 2 x 6000
Maße L x B x H (mm) 295 x 295 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 460 - 1145
Gewicht (kg) 29
ECO-Skate-IDEAL-iN120L-NY-iN120S-NY-Set

iN120L (NY) + iN120S (NY) Set

Artikelnummer 10.120.01.xx
Traglast (kg) 24000
ECO-Skate-IDEAL-iN160L-NY

iN160L (NY)

Artikelnummer 10.160.01.10
Traglast (kg) 16000
Maße L x B x H (mm) 528 x 982 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 60
ECO-Skate-IDEAL-iN160S-NY

iN160S (NY)

Artikelnummer 10.160.01.20
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 291 x 382 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 560 - 1095
Gewicht (kg) 36
ECO-Skate-IDEAL-iN160L-NY-iN160S-NY-Set

iN160L (NY) + iN160S (NY) Set

Artikelnummer 10.160.01.xx
Traglast (kg) 32000
ECO-Skate-IDEAL-iN200L-NY

iN200L (NY)

Artikelnummer 10.200.01.10
Traglast (kg) 20000
Maße L x B x H (mm) 568 x 1192 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 89
ECO-Skate-IDEAL-iN200S-NY

iN200S (NY)

Artikelnummer 10.200.01.20
Traglast (kg) 2 x 10000
Maße L x B x H (mm) 291 x 500 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 695 - 1403
Gewicht (kg) 57
ECO-Skate-IDEAL-iN200L-NY-iN200S-NY-Set

iN200L (NY) + iN200S (NY) Set

Artikelnummer 10.200.01.xx
Traglast (kg) 40000

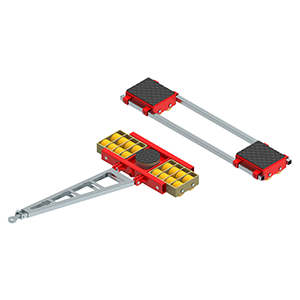

The following distinguishes the transport trolleys of the ECO-Skate XL (PU) series:

  • Single support
    Each wheel is individually mounted on the XL Series frame or wheel boxes. This prevents bending of the axis in the event of a short-term overload.
  • Pulling bar and alignment bar
    The load moving skates of the XL series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the XL series can be combined with each other and with trolleys of the BALANCE DUO XL and ROTO XL series. The total load results from the sum of the individual load capacities.
  • HTS high quality polyurethane wheels
    The skates are equipped as standard with HTS high quality non-marking polyurethane wheels, which can also be ordered separately.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Skate-XL-X16L-PU

X16L (PU)

Artikelnummer 10.160.02.10
Traglast (kg) 16000
Maße L x B x H (mm) 568 x 724 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 133
ECO-Skate-XL-X16S-PU

X16S (PU)

Artikelnummer 10.160.02.20
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 456 x 216 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 220 - 1940
Gewicht (kg) 87
ECO-Skate-XL-X16L-PU-X16S-PU-Set

X16L (PU) + X16S Set (PU)

Artikelnummer 10.160.02.xx
Traglast (kg) 32000
ECO-Skate-XL-X24L-PU

X24L (PU)

Artikelnummer 10.240.02.10
Traglast (kg) 24000
Maße L x B x H (mm) 567 x 931 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 158
ECO-Skate-XL-X24S-PU

X24S (PU)

Artikelnummer 10.240.02.20
Traglast (kg) 2 x 12000
Maße L x B x H (mm) 456 x 313 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 320 - 1940
Gewicht (kg) 119
ECO-Skate-XL-X24L-PU-X24S-PU-Set

X24L (PU) + X24S (PU) Set

Artikelnummer 10.240.02.xx
Traglast (kg) 48000
ECO-Skate-XL-X32L-PU

X32L (PU)

Artikelnummer 10.320.02.10
Traglast (kg) 32000
Maße L x B x H (mm) 567 x 1138 x180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 196
ECO-Skate-XL-X32S-PU-174px

X32S (PU)

Artikelnummer 10.320.02.20
Traglast (kg) 2 x 16000
Maße L x B x H (mm) 456 x 410 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 420 - 1660
Gewicht (kg) 151
ECO-Skate-XL-X32L-PU-X32S-PU-Set

X32L (PU) + X32S (PU) Set

Artikelnummer 10.320.02.xx
Traglast (kg) 64000
ECO-Skate-XL-X40L-PU

X40L (PU)

Artikelnummer 10.400.02.10
Traglast (kg) 40000
Maße L x B x H (mm) 607 x 1335 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 230
ECO-Skate-XL-X40S-PU

X40S (PU)

Artikelnummer 10.400.02.20
Traglast (kg) 2 x 20000
Maße L x B x H (mm) 456 x 507 x108
Deichsellänge (mm) -
Verstellbarkeit (mm) 550 - 1650
Gewicht (kg) 192
ECO-Skate-XL-X40L-PU-X40S-PU-Set

X40L (PU) + X40S (PU) Set

Artikelnummer 10.400.02.xx
Traglast (kg) 80000
ECO-Skate-XL-X48L-PU

X48L (PU)

Artikelnummer 10.480.02.10
Traglast (kg) 48000
Maße L x B x H (mm) 660 x 1671 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 319
ECO-Skate-XL-X48S-PU

X48S (PU)

Artikelnummer 10.480.02.20
Traglast (kg) 2 x 24000
Maße L x B x H (mm) 579 x 692 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 700 - 1690
Gewicht (kg) 264
ECO-Skate-XL-X48L-PU-X48S-PU-Set

X48L (PU) + X48S (PU) Set

Artikelnummer 10.480.02.xx
Traglast (kg) 96000

X64S (PU)

Artikelnummer 10.640.02.20
Traglast (kg) 2 x 32000
Maße L x B x H (mm) 587 x 898 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 900 - 1600
Gewicht (kg) 328
Bild folgt

X48L (PU) + X64S (PU) Set

Artikelnummer 10.640.02.20 + 10.480.02.10
Traglast (kg) 112000

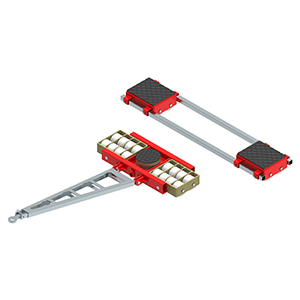

The following distinguishes the transport trolleys of the ECO-Skate XL (NY) series:

  • Single support
    Each wheel is individually mounted on the XL Series frame or wheel boxes. This prevents bending of the axis in the event of a short-term overload.
  • Pulling bar and alignment bar
    The load moving skates of the XL series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the XL series can be combined with each other and with skates of the BALANCE, DUO XL and ROTO XL series. The total load results from the sum of the individual load capacities.
  • HTS nylon wheels
    All Skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resistance. They are made of solid material and not produced by injection molding. As a result, they are particularly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conventional nylon tubes. HTS high quality, non-marking nylon wheels can also be ordered separately.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Skate-XL-XN20L-NY

XN20L (NY)

Artikelnummer 10.200.03.10
Traglast (kg) 20000
Maße L x B x H (mm) 568 x 724 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 127
ECO-Skate-XL-XN20S-NY

XN20S (NY)

Artikelnummer 10.200.03.20
Traglast (kg) 2 x 10000
Maße L x B x H (mm) 456 x 216 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 220 - 1940
Gewicht (kg) 81
ECO-Skate-XL-XN20L-NY-XN20S-NY-Set

XN20L (NY) + XN20S (NY) Set

Artikelnummer 10.200.03.xx
Traglast (kg) 40000
ECO-Skate-XL-XN30L-NY-174px

XN30L (NY)

Artikelnummer 10.300.03.10
Traglast (kg) 30000
Maße L x B x H (mm) 567 x 931 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 149
ECO-Skate-XL-XN30S-NY-174px

XN30S (NY)

Artikelnummer 10.300.03.20
Traglast (kg) 2 x 15000
Maße L x B x H (mm) 456 x 313 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 320 - 1940
Gewicht (kg) 108
ECO-Skate-XL-XN30L-NY-XN30S-NY-Set-

XN30L (NY) + XN30S (NY) Set

Artikelnummer 10.300.03.xx
ECO-Skate-XL-XN40L-NY

XN40L (NY)

Artikelnummer 10.400.03.10
Traglast (kg) 40000
Maße L x B x H (mm) 567 x 1138 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 182
ECO-Skate-XL-XN40S-NY

XN40S (NY)

Artikelnummer 10.400.03.20
Traglast (kg) 2 x 20000
Maße L x B x H (mm) 456 x 410 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 420 - 1660
Gewicht (kg) 135
ECO-Skate-XL-XN40L-NY-XN40S-NY-Set

XN40L (NY) + XN40S (NY) Set

Artikelnummer 10.400.03.xx
Traglast (kg) 80000
ECO-Skate-XL-XN50L-NY

XN50L (NY)

Artikelnummer 10.500.03.10
Traglast (kg) 50000
Maße L x B x H (mm) 607 x 1335 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) -
Gewicht (kg) 214
ECO-Skate-XL-XN50S-NY

XN50S (NY)

Artikelnummer 10.500.03.20
Traglast (kg) 2 x 25000
Maße L x B x H (mm) 456 x 507 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 550 - 1650
Gewicht (kg) 174
ECO-Skate-XL-XN50L-NY-XN50S-NY-Set

XN50L (NY) + XN50S (NY) Set

Artikelnummer 10.500.03.xx
Traglast (kg) 100000

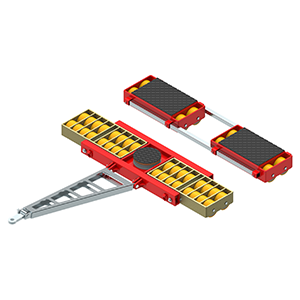

The following distinguishes the transport trolleys of the ECO-Skate BIG (PU) series:

  • Single support
    Each wheel is individually mounted on the BIG Series frame or wheel boxes. This prevents bending of the axis in the event of a short-term overload.
  • Pulling bar and alignment bar
    The load moving skates of the BIG series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the BIG series can be combined with each other. The total load results from the sum of the individual load capacities.
  • HTS high polyurethane wheels
    The skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

ECO-Skate-BIG-BIG44L-PU

BIG44L (PU)

Artikelnummer 09.044.04.10
Traglast (kg) 44000
Maße L x B x H (mm) 738 x 1390 x 220
Deichsellänge (mm) 1775
Verstellbarkeit (mm) -
Gewicht (kg) 392
ECO-Skate-BIG-BIG44S-PU

BIG44S (PU)

Artikelnummer 09.044.04.20
Traglast (kg) 2 x 22000
Maße L x B x H (mm) 542 x 436 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 450 - 1736
Gewicht (kg) 220
ECO-Skate-BIG-BIG44L-PU-BIG44S-PU-Set

BIG44L (PU) + BIG44S (PU) Set

Artikelnummer 09.044.04.xx
Traglast (kg) 88000
ECO-Skate-BIG-BIG66L-PU

BIG66L (PU)

Artikelnummer 09.066.04.10
Traglast (kg) 66000
Maße L x B x H (mm) 738 x 1802 x 220
Deichsellänge (mm) 1775
Verstellbarkeit (mm) -
Gewicht (kg) 489
ECO-Skate-BIG-BIG66S-PU

BIG66S (PU)

Artikelnummer 09.066.04.20
Traglast (kg) 2 x 33000
Maße L x B x H (mm) 542 x 642 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 650 - 1530
Gewicht (kg) 326
ECO-Skate-BIG-BIG66L-PU-BIG66S-PU-Set

BIG66L (PU) + BIG66S (PU) Set

Artikelnummer 09.066.04.xx
Traglast (kg) 132000
ECO-Skate-BIG-BIG88L-PU

BIG88L (PU)

Artikelnummer 09.088.04.10
Traglast (kg) 88000
Maße L x B x H (mm) 738 x 2214 x 220
Deichsellänge (mm) 1775
Verstellbarkeit (mm) -
Gewicht (kg) 585
ECO-Skate-BIG-BIG88S-PU

BIG88S (PU)

Artikelnummer 09.088.04.20
Traglast (kg) 2 x 44000
Maße L x B x H (mm) 542 x 848 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 900 - 1320
Gewicht (kg) 432
ECO-Skate-BIG-BIG88L-PU-BIG88S-PU-Set

BIG88L (PU) + BIG88S (PU) Set

Artikelnummer 09.088.04.xx
Traglast (kg) 176000
ECO-Skate-BIG-BIG132S-PU

BIG132S (PU)

Artikelnummer 09.132.04.20
Traglast (kg) 2 x 66000
Maße L x B x H (mm) 732 x 848 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 900 - 1320
Gewicht (kg) 589
ECO-Skate BIG88L + BIG132S

BIG88L (PU) + BIG132S (PU) Set

Artikelnummer 09.132.04.20 + 09.088.04.10
Traglast (kg) 220.000

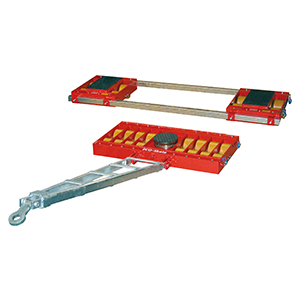

The following distinguishes the transport trolleys of the ECO-Skate BALANCE (PU) series:

  • Hydraulic load balancing
    Hydraulic load balancing of true ± 15 mm. Optimal protection against overloading of the individual wheels and the floor.
  • Pulling bar and alignment bar
    The load moving skates of the BALANCE series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the BALANCE series can be combined with each other and all ECO-Skates with the same height such as the XL, DUO XL and ROTO XL series. The total load results from the sum of the individual load capacities.
  • HTS polyurethane wheels
    The skates are equipped as standard with HTS polyurethane wheels, which can also be ordered separately.

For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer.

ECO-Skate BALANCE B24L (PU)

B24L (PU)

Artikelnummer 10.240.02.50
Traglast (kg) 24000
Maße L x B x H (mm) 684 x 960 x 180
Deichsellänge (mm) 1500
Verstellbarkeit (mm) -
Gewicht (kg) 260
ECO-Skate BALANCE B24S (PU)

B24S (PU)

Artikelnummer 10.240.02.60
Traglast (kg) 2 x 12000
Maße L x B x H (mm) 716 x 360 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 400 - 1940
Gewicht (kg) 220
Bild folgt

B24L (PU) + B24S (PU) Set

Artikelnummer 10.240.02.xx
Traglast (kg) 48000
ECO-Skate BALANCE B32L (PU)

B32L (PU)

Artikelnummer 10.320.02.50
Traglast (kg) 32000
Maße L x B x H (mm) 684 x 1182 x 180
Deichsellänge (mm) 1500
Verstellbarkeit (mm) -
Gewicht (kg) 310
ECO-Skate BALANCE B32S (PU)

B32S (PU)

Artikelnummer 10.320.02.60
Traglast (kg) 2 x 16000
Maße L x B x H (mm) 716 x 472 x 180
Deichsellänge (mm) -
Verstellbarkeit (mm) 500 - 1710
Gewicht (kg) 270
Bild folgt

B32L (PU) + B32S (PU) Set

Artikelnummer 10.320.02.xx
Traglast (kg) 64000

The following distinguishes the transport trolleys of the ECO-Skate CR series:

  • Pulling and alignment bars
    The transport skates of the CR series are delivered as standard with pulling and alignment bars. Special lengths on request.
  • Nickel-plated surface and low-wear wheels
    for use in clean rooms, the food industry and pharmaceutical industry.
  • HTS high quality, non-marking nylon wheels
    All skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resistance. They are made of solid material and not produced by injection molding. As a result, they are particularly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conventional nylon tubes. HTS nylon wheels can also be ordered separately.
  • Combinable
    All transport skates with the same hight of the CR series can be combined with each other. The total load consists of the sum of the individual load capacities.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

Bild folgt

iN40L-CR

Artikelnummer 12.040.01.10
Traglast (kg) 4000
Maße L x B x H (mm) 238 x 268 x 110
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 12
Bild folgt

iN40S-CR

Artikelnummer 12.040.01.20
Traglast (kg) 2 x 2000
Maße L x B x H (mm) 228 x 132 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 265 - 1000
Gewicht (kg) 12
Bild folgt

iN40L-CR + iN40S-CR Set

Artikelnummer 12.040.01.xx
Traglast (kg) 8000
Bild folgt

iN80L-CR

Artikelnummer 12.080.01.10
Traglast (kg) 8000
Maße L x B x H (mm) 339 x 483 x 110
Deichsellänge (mm) 1000
Verstellbarkeit (mm) -
Gewicht (kg) 21
Bild folgt

iN80S-CR

Artikelnummer 12.080.01.20
Traglast (kg) 2 x 4000
Maße L x B x H (mm) 291 x 220 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 420-1100
Gewicht (kg) 25
Bild folgt

iN80L-CR + iN80S-CR Set

Artikelnummer 12.080.01.xx
Traglast (kg) 16000
Bild folgt

iN120L-CR

Artikelnummer 12.120.01.10
Traglast (kg) 12000
Maße L x B x H (mm) 525 x 780 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 50
Bild folgt

iN120S-CR

Artikelnummer 12.120.01.20
Traglast (kg) 2 x 6000
Maße L x B x H (mm) 295 x 295 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 460 - 1145
Gewicht (kg) 29
Bild folgt

iN120L-CR + iN120S-CR Set

Artikelnummer 12.120.01.xx
Traglast (kg) 24000
Bild folgt

iN160L-CR

Artikelnummer 12.160.01.10
Traglast (kg) 16000
Maße L x B x H (mm) 525 x 982 x 110
Deichsellänge (mm) 1170
Verstellbarkeit (mm) -
Gewicht (kg) 60
Bild folgt

iN160S-CR

Artikelnummer 12.160.01.20
Traglast (kg) 2 x 8000
Maße L x B x H (mm) 291 x 382 x 110
Deichsellänge (mm) -
Verstellbarkeit (mm) 560 - 1095
Gewicht (kg) 36
ECO-Skate-CR-iN160L-CR-iN160S-CR-Set

iN160L-CR + iN160S-CR Set

Artikelnummer 12.160.01.xx
