The following distin­guishes the ECO-Skate IDEAL (NY) transport trolleys:

  • Pulling bar and alignment bar
    The skates of the IDEAL series come standard with pulling bar and alignment bar. Special lengths on request.
  • Foldable alignment bar
    The alignment bars of the iN80S, iN120S and iN160S are foldable.
  • Combinable
    All transport load moving skates of the IDEAL (NY) series can be combined with each other and with skates of the IDEAL, ROTO and DUO series. The total load results from the sum of the individual load capac­ities.
  • HTS nylon wheels
    All Skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resis­tance. They are made of solid material and not produced by injection molding. As a result, they are partic­u­larly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conven­tional nylon tubes. HTS nylon wheels can also be ordered separately.

For all areas of appli­cation in which the standard range from the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer.

ECO-Skate-IDEAL-iN40L-NY

iN40L (NY)

Article Number
10.040.01.10
Max Load: Load Areas x Max Load
4000 kg
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
238 x 268 x 110 mm
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
12 kg
ECO-Skate-IDEAL-iN40S-NY

iN40S (NY)

Article Number
10.040.01.20
Max Load: Load Areas x Max Load
2 x 2000 kg
Dimensions: Length x Width x Height
246 x 12 x 110 mm
Wheels
2 x 2 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
12 kg

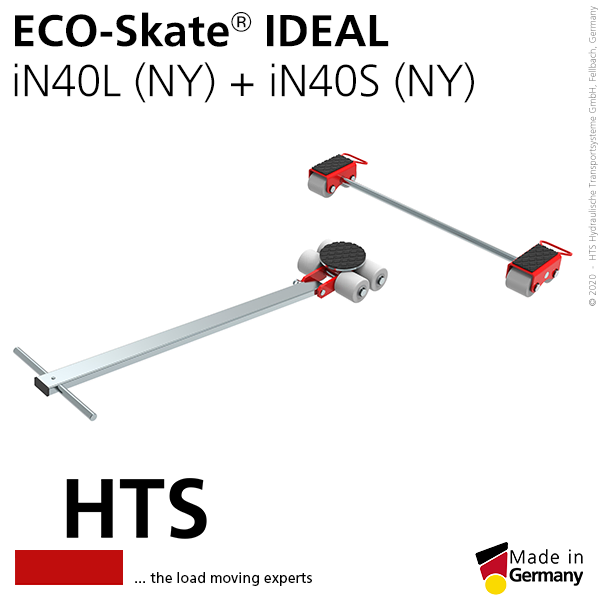

ECO-Skate-IDEAL-iN40L-NY-iN40S-NY-Set

iN40L (NY) + iN40S (NY) Set

Article Number
10.040.01.xx
Weight
8000 kg
ECO-Skate-IDEAL-iN80L-NY

iN80L (NY)

Article Number
10.080.01.10
Max Load: Load Areas x Max Load
8000 kg
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
339 x 483 x 110 mm
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
21 kg
ECO-Skate-IDEAL-iN80S-NY

iN80S (NY)

Article Number
10.080.01.20
Max Load: Load Areas x Max Load
2 x 4000 kg
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
25 kg

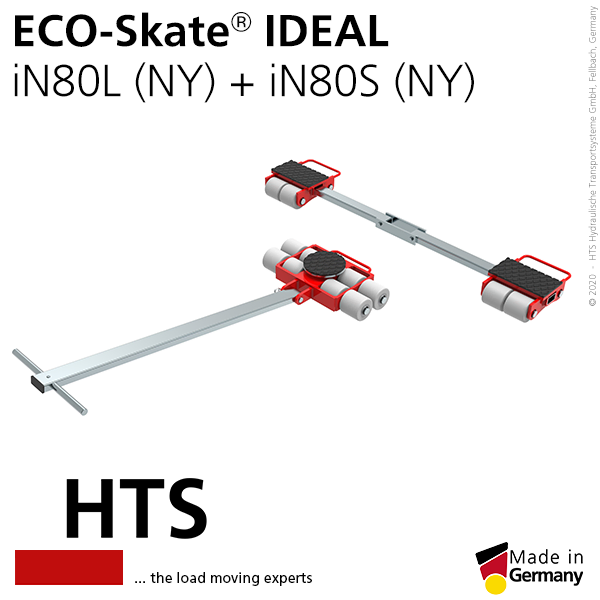

ECO-Skate-IDEAL-iN80L-NY-iN80S-NY-Set

iN80L (NY) + iN80S (NY) Set

Article Number
10.080.01.xx
Weight
16000 kg
ECO-Skate-IDEAL-iN120L-NY

iN120L (NY)

Article Number
10.120.01.10
Max Load: Load Areas x Max Load
12000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 780 x 110 mm
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
50 kg
ECO-Skate-IDEAL-iN120S-NY-174px

iN120S (NY)

Article Number
10.120.01.20
Max Load: Load Areas x Max Load
2 x 6000 kg
Dimensions: Length x Width x Height
295 x 295 x 110 mm
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
29 kg

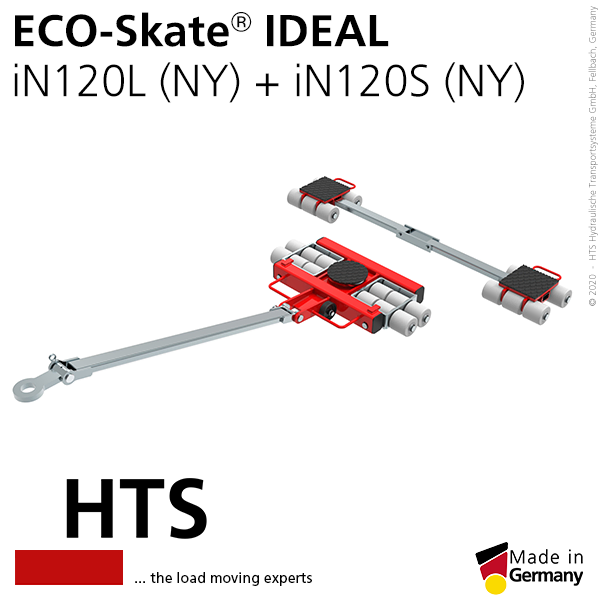

ECO-Skate-IDEAL-iN120L-NY-iN120S-NY-Set

iN120L (NY) + iN120S (NY) Set

Article Number
10.120.01.xx
Weight
24000 kg
ECO-Skate-IDEAL-iN160L-NY

iN160L (NY)

Article Number
10.160.01.10
Max Load: Load Areas x Max Load
16000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 982 x 110 mm
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
60 kg
ECO-Skate-IDEAL-iN160S-NY

iN160S (NY)

Article Number
10.160.01.20
Max Load: Load Areas x Max Load
2 x 8000 kg
Load Areas x Diameter
2 x Ø 170 mm
Dimensions: Length x Width x Height
291 x 382 x 110 mm
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
36 kg

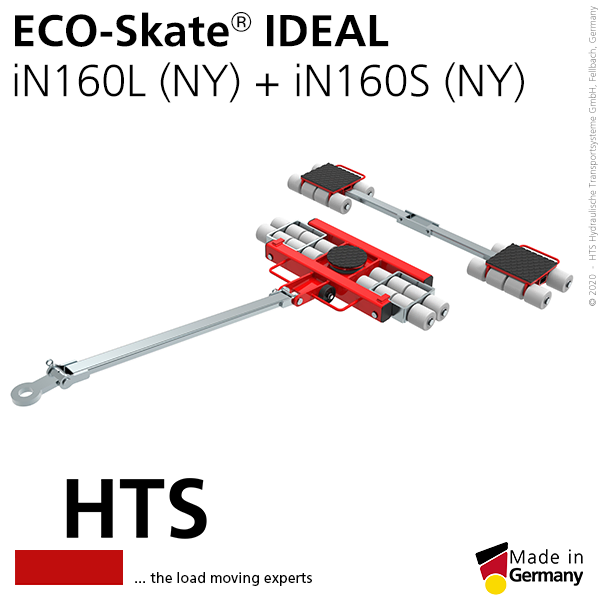

ECO-Skate-IDEAL-iN160L-NY-iN160S-NY-Set

iN160L (NY) + iN160S (NY) Set

Article Number
10.160.01.xx
Weight
32000 kg
ECO-Skate-IDEAL-iN200L-NY

iN200L (NY)

Article Number
10.200.01.10
Max Load: Load Areas x Max Load
20000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
568 x 1192 x 110 mm
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
89 kg
ECO-Skate-IDEAL-iN200S-NY

iN200S (NY)

Article Number
10.200.01.20
Max Load: Load Areas x Max Load
2 x 10000 kg
Dimensions: Length x Width x Height
291 x 500 x 110 mm
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
57 kg
ECO-Skate-IDEAL-iN200L-NY-iN200S-NY-Set

iN200L (NY) + iN200S (NY) Set

Article Number
10.200.01.xx
Weight
40000 kg
