The following distin­guishes the transport trolleys of the ECO-Skate XL (NY) series:

  • Single support
    Each wheel is individ­ually mounted on the XL Series frame or wheel boxes. This prevents bending of the axis in the event of a short-term overload.
  • Pulling bar and alignment bar
    The load moving skates of the XL series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galva­nized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the XL series can be combined with each other and with skates of the BALANCE, DUO XL and ROTO XL series. The total load results from the sum of the individual load capac­ities.
  • HTS nylon wheels
    All Skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resis­tance. They are made of solid material and not produced by injection molding. As a result, they are partic­u­larly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conven­tional nylon tubes. HTS high quality, non-marking nylon wheels can also be ordered separately.

For all areas of appli­cation in which the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

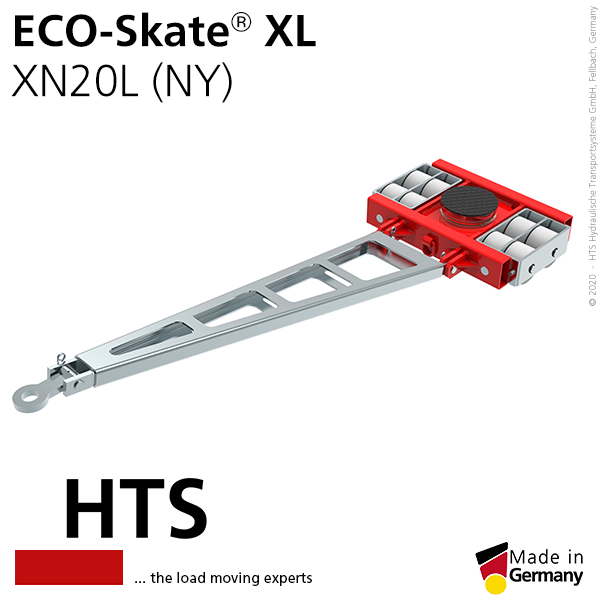

ECO-Skate-XL-XN20L-NY

XN20L (NY)

Article Number
10.200.03.10
Max Load: Load Areas x Max Load
20000 kg
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
568 x 724 x 180 mm
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
127 kg

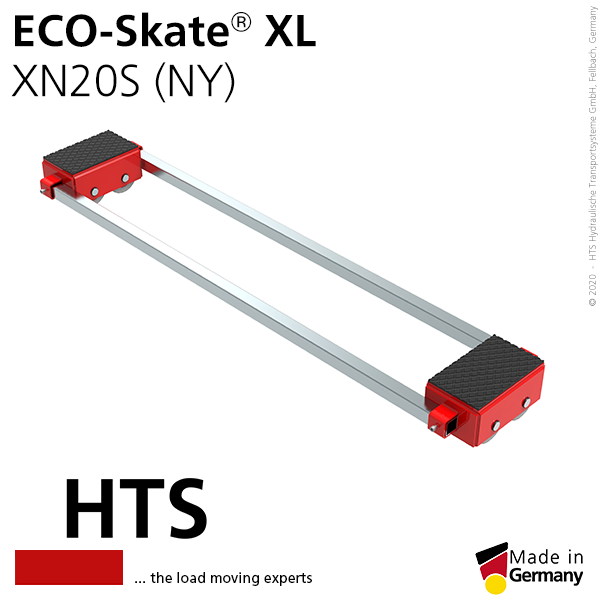

ECO-Skate-XL-XN20S-NY

XN20S (NY)

Article Number
10.200.03.20
Max Load: Load Areas x Max Load
2 x 10000 kg
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
81 kg

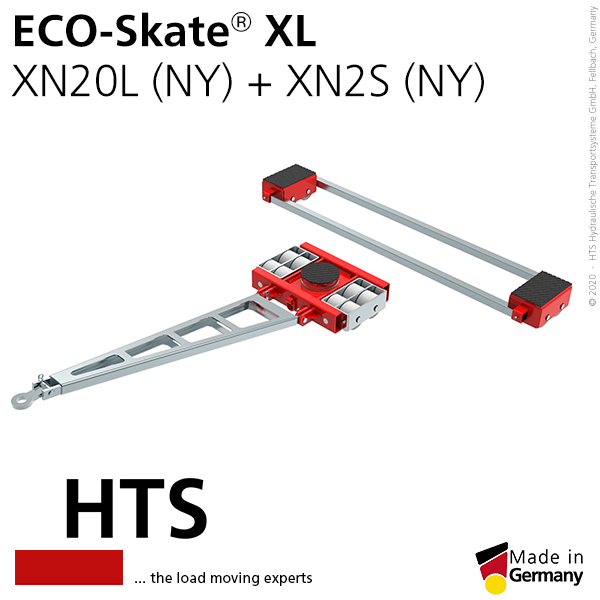

ECO-Skate-XL-XN20L-NY-XN20S-NY-Set

XN20L (NY) + XN20S (NY) Set

Article Number
10.200.03.xx
Max Load: Load Areas x Max Load
40000 kg

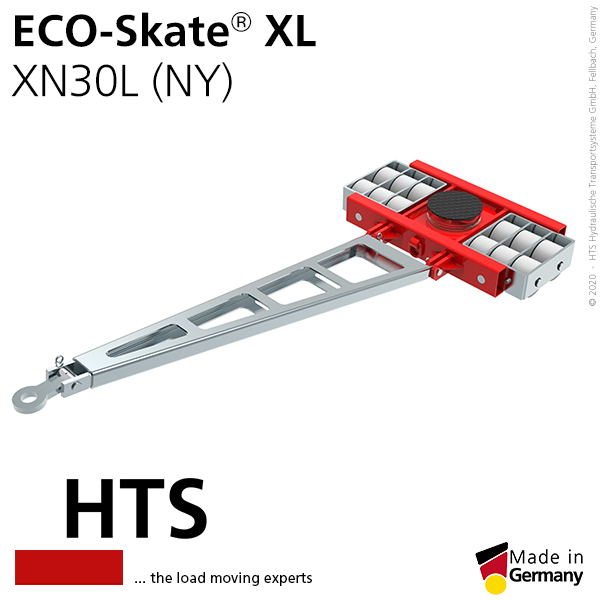

ECO-Skate-XL-XN30L-NY-174px

XN30L (NY)

Article Number
10.300.03.10
Max Load: Load Areas x Max Load
30000 kg
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 931 x 180 mm
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
149 kg

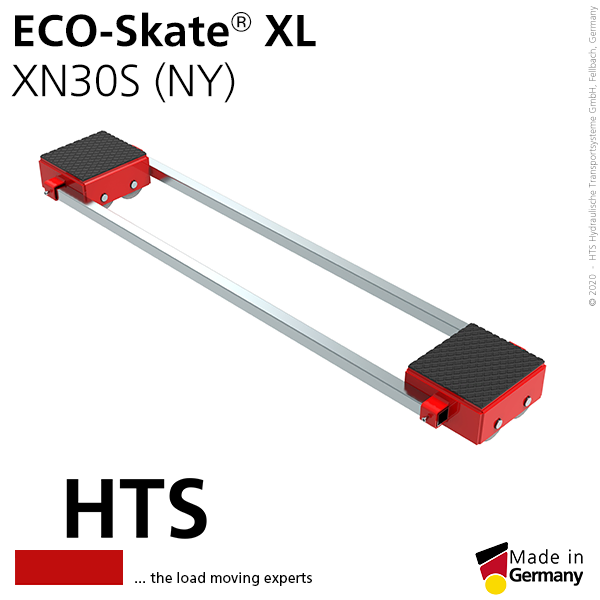

ECO-Skate-XL-XN30S-NY-174px

XN30S (NY)

Article Number
10.300.03.20
Max Load: Load Areas x Max Load
2 x 15000 kg
Dimensions: Length x Width x Height
456 x 313 x 180 mm
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
108 kg

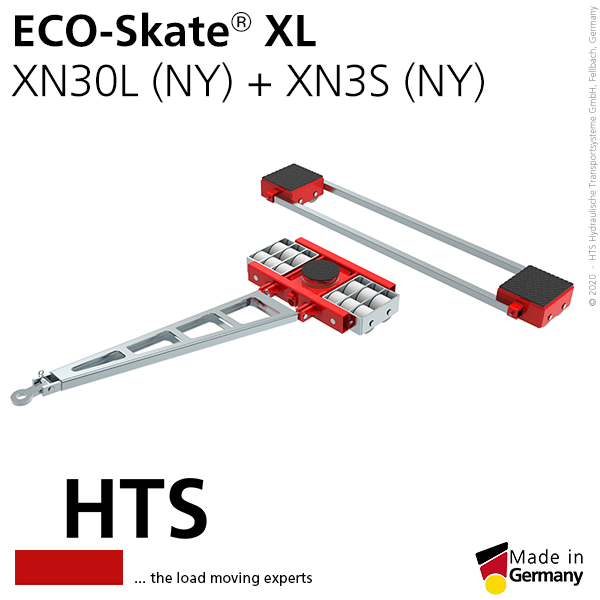

ECO-Skate-XL-XN30L-NY-XN30S-NY-Set-

XN30L (NY) + XN30S (NY) Set

Article Number
10.300.03.xx

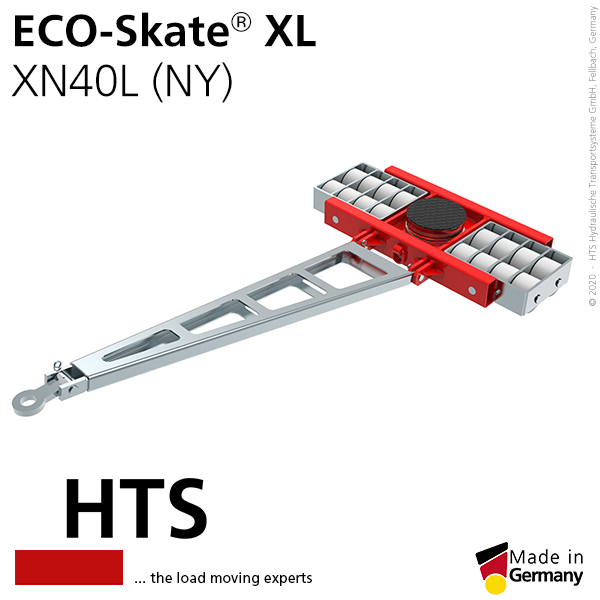

ECO-Skate-XL-XN40L-NY

XN40L (NY)

Article Number
10.400.03.10
Max Load: Load Areas x Max Load
40000 kg
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 1138 x 180 mm
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
182 kg

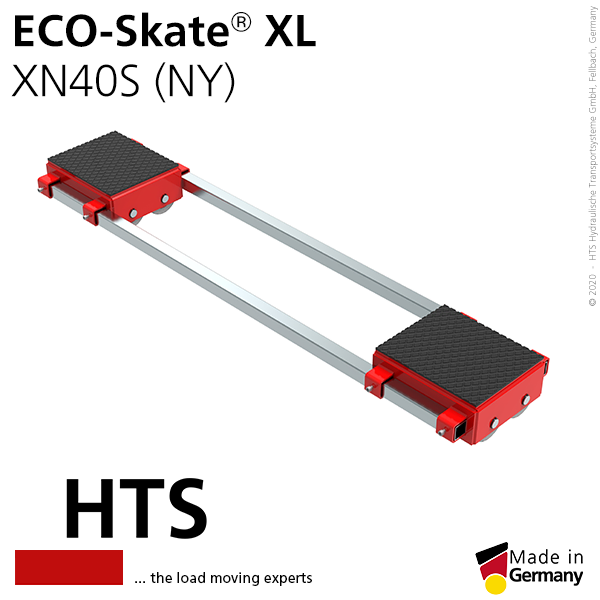

ECO-Skate-XL-XN40S-NY

XN40S (NY)

Article Number
10.400.03.20
Max Load: Load Areas x Max Load
2 x 20000 kg
Dimensions: Length x Width x Height
456 x 410 x 180 mm
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
135 kg

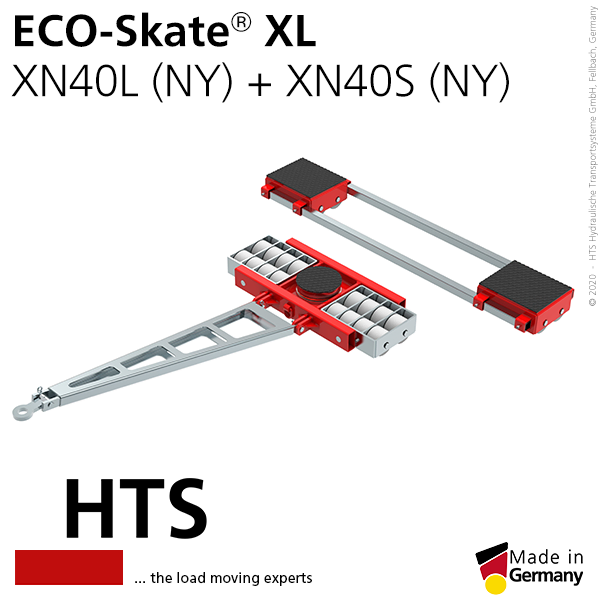

ECO-Skate-XL-XN40L-NY-XN40S-NY-Set

XN40L (NY) + XN40S (NY) Set

Article Number
10.400.03.xx
Max Load: Load Areas x Max Load
80000 kg

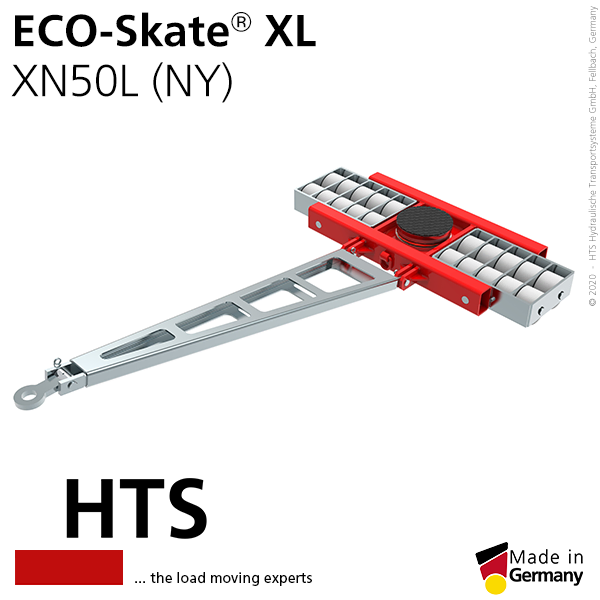

ECO-Skate-XL-XN50L-NY

XN50L (NY)

Article Number
10.500.03.10
Max Load: Load Areas x Max Load
50000 kg
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
607 x 1335 x 180 mm
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
214 kg

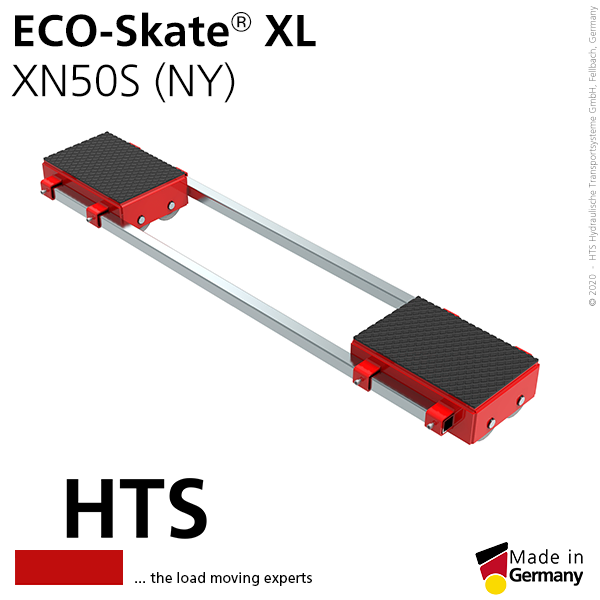

ECO-Skate-XL-XN50S-NY

XN50S (NY)

Article Number
10.500.03.20
Max Load: Load Areas x Max Load
2 x 25000 kg
Dimensions: Length x Width x Height
456 x 507 x 180 mm
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 mm
Weight
174 kg

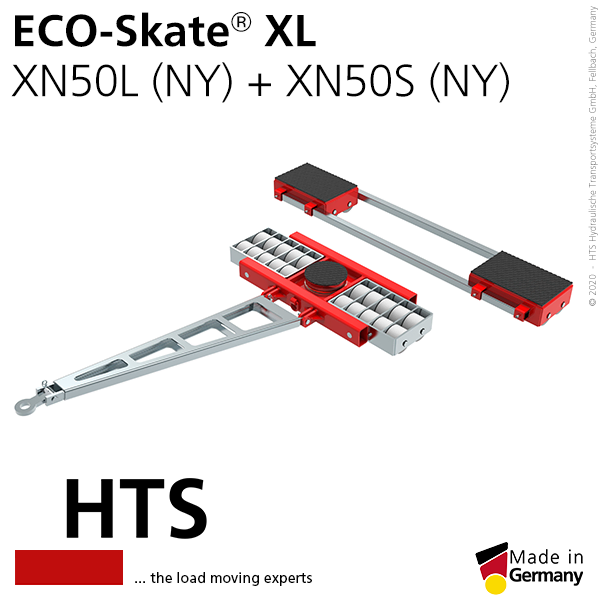

ECO-Skate-XL-XN50L-NY-XN50S-NY-Set

XN50L (NY) + XN50S (NY) Set

Article Number
10.500.03.xx
Max Load: Load Areas x Max Load
100000 kg
