With integrated pump
The ECO-Jack G-Series compact design with integrated pump makes it independent of external pumps and additional hoses. Its low-profile lifting claw also allows it to be used on stackers with low floor clearance.
The ECO-Jack G-Series compact design with integrated pump makes it independent of external pumps and additional hoses. Its low-profile lifting claw also allows it to be used on stackers with low floor clearance.

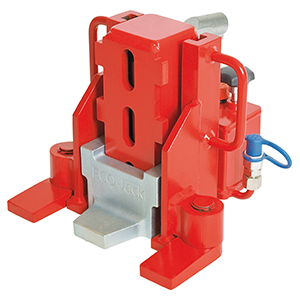

ECO-Jack® S-Series
ECO-Jack® heavy duty hydraulic jacks are available in five different series with payloads up to 25 tons. The adjustability of the lifting claw on all ECO-Jack® is patented easy: Lift the claw with just one hand, take it horizontally out of the groove plate and insert it in a new position -done. Easy to use with a low risk of injury. The integrated pump requires no additional equipment. From the EJ100-3S, external manual or electric pumps can also be connected. For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.
Hydraulikheber der ECO-Jack® S-Serie zeichnen sich aus durch
- die patentierte Hebelasche. Mit ihr wird ein sicheres Anheben der Last gewährleistet und die Verstellung kann mit nur einer Hand ohne Kippbewegung erfolgen.
- ein geringes Eigengewicht. Eine verbesserte Konstruktion und hochwertiges Material führt zu einer Reduzierung des Gewichts um bis zu 20% gegenüber vergleichbaren Geräten.
- exakte Führungen, garantieren präzise Hub- und Senkbewegungen und eine lange Lebensdauer.
- die um ca. 225° schwenkbare Pumpeneinheit. Aus jeder Position heraus ermöglicht sie den vollen Pumpenhub.
- ein feindosierbares Ablaßventil. Mit ihm kann die Last punktgenau abgesenkt und die Senkgeschwindigkeit präzise gesteuert werden.
- Schwenkfüße, die ein Kippen des Maschinenhebers verhindern und die zu hebende Last sichern.
- einen Hydraulikanschluß bei der Standardserie ab 10 Tonnen Traglast, an den externe Pumpen tropffrei angeschlossen werden können.
- seitlich angebrachte Griffe, die die volle Hubbewegung der um 225º drehbaren Pumpeneinheit aus allen Positionen heraus ermöglichen. Die Griffe sind so angebracht, dass sie nicht nach oben überstehen und bei einem Einsatz mit Hub auf der Kopfplatte nicht entfernt werden müssen.
- Doppelte Pumpe (EJ150/EJ250): Die Hebegeräte EJ150-3S und EJ250-3S sind mit einer zweiten Pumpeneinheit ausgestattet, die im Leerlauf durch den Schnellhub so eine annähernd 3-fache Hubgeschwindigkeiten ermöglicht.
Für spezielle Anwendungsfälle, in denen unsere Standardgeräte aus dem Seriensortiment nicht ausreichen, konstruieren wir individuell auf die Kunden zugeschnittene Sonderlösungen.
EJ30-5S
EJ60-4S
EJ100-3S
EJ150-3S
EJ250-3S

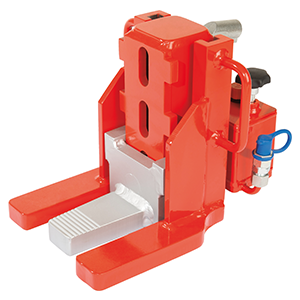

ECO-Jack® G-Series
Repair, maintenance and servicing of forklifts, stackers and other industrial trucks guarantee the availability of your equipment for production, material flow or storage use. The ECO-Jack® G-Series compact design with integrated pump makes it independent of external pumps and additional hoses. Its low-profile lifting claw also allows it to be used on stackers with low floor clearance. Leading European manufacturers of forklift trucks and other industrial trucks have been relying on the ECO-Jack® G series for years, and equip their service teams with it.
Hydraulic lifting devices of the ECO-Jack® G-Series are characterized by
- the patented lifting claw. It ensures a safe lifting of the load and can be adjusted with one hand without tilting movement. This is especially long and flat for the round frames on modern fork trucks.
- a minimal self-weight. Improved construction and high-quality material have reduced weight by up to 20% compared to similar devices.
- Precision milled guides made of high resistant and high quality material that guarantee precise lifting and lowering movements and a long service life.
- a pump unit which can be swiveled by approx. 225 °. It allows the full pump stroke from any position.
- a finely dosed release valve, with which the load can be lowered precisely and the lowering speed can be precisely controlled.
- an external hose coupler is standard with the EJ100-3G. External pumps can be connected with the drip-free hydraulic nipple.
- Side-mounted handles that allow full stroke movement of the 225º rotatable pump unit from all positions. The handles are not over at the top and do not need to be removed when the top plate is used for lifting.
For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.
EJ50-3G
EJ100-3G
ECO-Jack S CR
The HTS CR-Series are in production since 2003 for clean room and food applications. All standard equipment from the ECO-Jack machine lifter series can be manufactured as a CR-Series with nickel-plated surfaces and low-wear nylon rollers. Apart from clean rooms, the CR-Series is also used in the food, pharmaceutical and chemical industries as well as in medical technology or research.
Hydraulic lifting devices of the ECO-Jack CR-Series are characterized by
- the patented lifting claw. It ensures a safe lifting of the load and can be adjusted with one hand without tilting movement.
- a minimal self-weight. Improved construction and high-quality material have reduced weight by up to 20% compared to similar devices.
- Precision milled guides made of high resistant and high quality material that guarantee precise lifting and lowering movements and a long service life.
- a pump unit which can be swiveled by approx. 225 °. It allows the full pump stroke from any position.
- a finely dosed release valve, with which the load can be lowered precisely and the lowering speed can be precisely controlled.
- strong swiveling legs to secure the load to be lifted. Tilting of the machine lifter is prevented.
- an external hose coupler with the SX-CR type. External pumps can be connected with the drip-free hydraulic nipple.
- side-mounted handles that allow full stroke movement of the 225º rotatable pump unit from all positions. The handles are not over at the top and do not need to be removed when the top plate is used for lifting.
For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.
EJ30-5S-CR
EJ60-4S-CR
