Hydrau­lic lif­ting devices of the ECO-Jack CR-Seri­es are cha­rac­te­ri­zed by

  • the paten­ted lif­ting claw. It ensu­res a safe lif­ting of the load and can be adjus­ted with one hand without til­ting movement.
  • a mini­mal self-weight. Impro­ved con­struc­tion and high-qua­­li­­ty mate­ri­al have redu­ced weight by up to 20% com­pa­red to simi­lar devices.
  • Pre­cisi­on mil­led gui­des made of high resistant and high qua­li­ty mate­ri­al that gua­ran­tee pre­cise lif­ting and lowe­ring move­ments and a long ser­vice life.
  • a pump unit which can be swi­v­eled by approx. 225°. It allows the full pump stro­ke from any position.
  • a finely dosed release val­ve, with which the load can be lowe­red pre­cise­ly and the lowe­ring speed can be pre­cise­ly controlled.
  • strong swi­ve­ling legs to secu­re the load to be lifted. Til­ting of the machi­ne lif­ter is prevented.
  • an exter­nal hose cou­p­ler with the SX-CR type. Exter­nal pumps can be con­nec­ted with the drip-free hydrau­lic nipple.
  • side-moun­­­ted hand­les that allow full stro­ke move­ment of the 225º rotat­a­ble pump unit from all posi­ti­ons. The hand­les are not over at the top and do not need to be remo­ved when the top pla­te is used for lifting.

For all are­as of app­li­ca­ti­on in which the stan­dard ran­ge is insuf­fi­ci­ent, we design spe­cial solu­ti­ons that are indi­vi­du­al­ly tailo­red to the cus­to­mer needs.

ECO-Jack-Maschinenheber-S-CR-EJ30-5S-CR

EJ30-5S-CR

Artikelnummer
Artikelnummer
03.030.50.10
Traglast
Traglast
3000 kg
Arbeitsdruck
Arbeitsdruck
520 bar
Ansetzhöhe
Ansetzhöhe
12 mm
Verstellbarkeit
Verstellbarkeit
5 x 46 mm
Hubhöhe
Hubhöhe
140 mm
Maße
Maße
198 x 207 x 250 mm
Gewicht
Gewicht
15 kg
ECO-Jack-Maschinenheber-S-CR-EJ60-4S-CR

EJ60-4S-CR

Artikelnummer
Artikelnummer
03.060.40.10
Traglast
Traglast
6000 kg
Arbeitsdruck
Arbeitsdruck
520 bar
Ansetzhöhe
Ansetzhöhe
15 mm
Verstellbarkeit
Verstellbarkeit
4 x 58 mm
Hubhöhe
Hubhöhe
140 mm
Maße
Maße
216 x 228 x 252 mm
Gewicht
Gewicht
19 kg

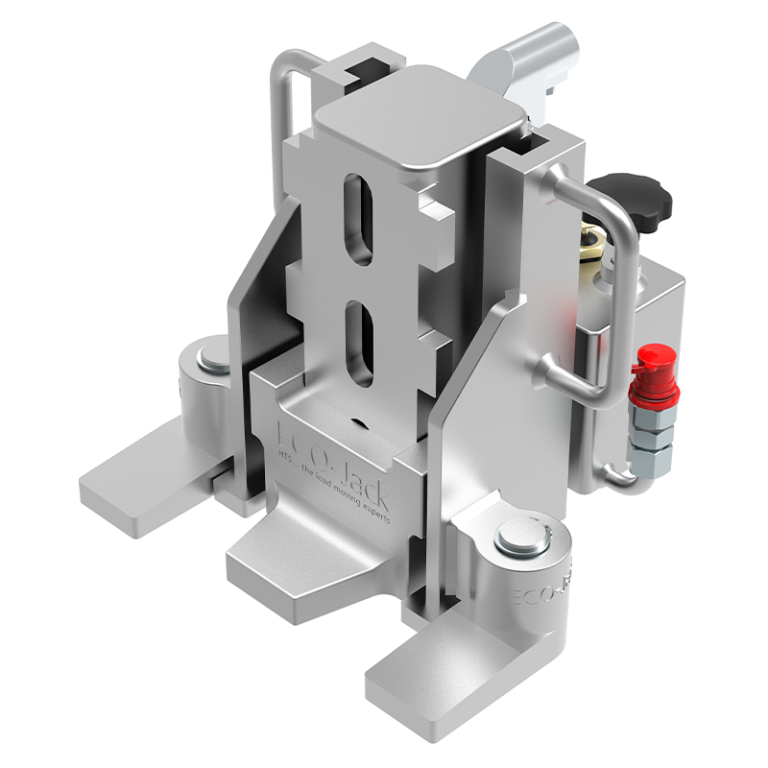

ECO-Jack-Maschinenheber-S-CR-EJ100-3S-CR

EJ100-3S-CR

Artikelnummer
Artikelnummer
03.100.31.10
Traglast
Traglast
10000 kg
Arbeitsdruck
Arbeitsdruck
520 bar
Ansetzhöhe
Ansetzhöhe
20 mm
Verstellbarkeit
Verstellbarkeit
3 x 75 mm
Hubhöhe
Hubhöhe
140 mm
Maße
Maße
271 x 277 x 250 mm
Gewicht
Gewicht
28 kg
