ACTEK SHR-Series Specials:

  • 5:1 Safety factor
  • 200% proof load tested
  • Serial numbers for traceability
  • Rotates 360° and swivels 180°
  • Magnetic partical inspected
  • Easy mounting, only one thread or hole is required
Artikelnummer Traglast SF* 5:1 (kg) Traglast SF* 4:1 (kg) Gewinde A B C D E F G H Max. Anzugs-moment (Nm) Gewicht (kg)
ACTEK SHR 1050 200.046.924 1050 1312 M12 22 60 30 19 19 121 89 51 37 1.08
ACTEK SHR 1900 200.046.930 1900 2375 M16 22 56 30 19 29 121 89 51 80 1.12
ACTEK SHR 2150 200.046.936 2150 2687 M20 22 52 30 19 34 121 89 51 135 1.19
ACTEK SHR 3000 200.046.942 3000 3750 M20 36 78 43 25 32 166 131 76 135 3.03
ACTEK SHR 4200 200.046.948 4200 5250 M24 36 74 43 25 37 166 131 76 311 3.1
ACTEK SHR 4200 200.046.950 4200 5250 M30 36 108 43 25 58 206 131 76 637 3.1

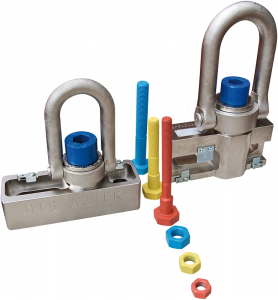

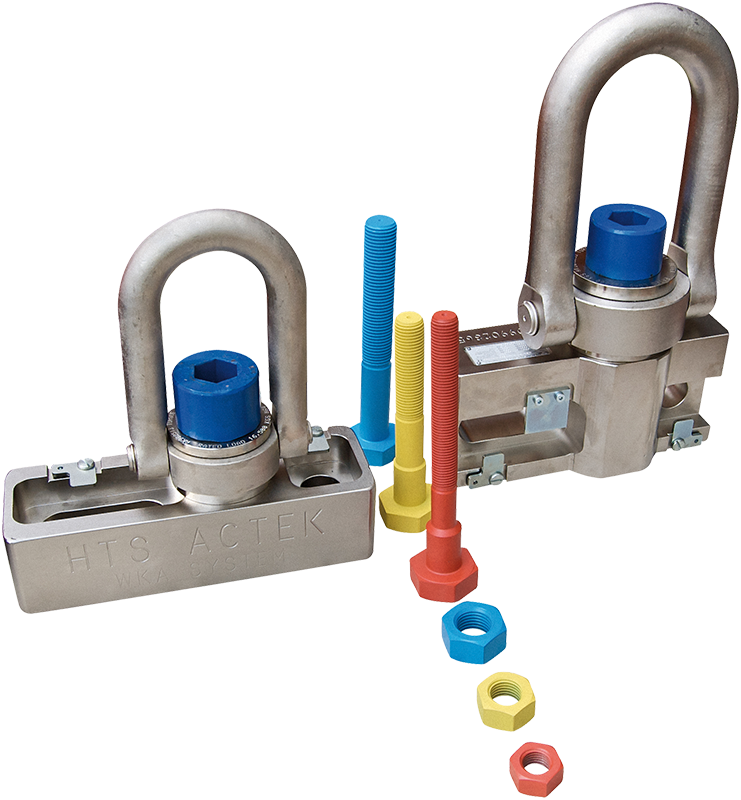

Each system has a minimum of only four WKA hoist rings for the top flange and two WKA-B hoist rings for the bottom flange. Therefore the system uses the already existing flange holes.

We can reach highest lifting capacities in all lifting angles due to the use of ACTEK hoist rings  with a 5:1 safety factor. The hoist rings come with lifting capacities from 7.000 (15400) to  31.500 kg (69.300 lbs.) for each hoist ring.  All parts of the WKA system come nickel plated (except screws and nuts). This surface layer  protects from corrosion due to humidity and salty air.

The HTS FS-System is a fail-safe colour code system for screws and nuts to prevent the use of  bigger nut sizes on smaller screws. Bright colours helps to find them on the ground and helps  not to use regular silver screws by mistake.

Challenge us – We are pleased to help you to find the optimum for mounting solutions from hoist rings over snatch blocks to storage boxes.
