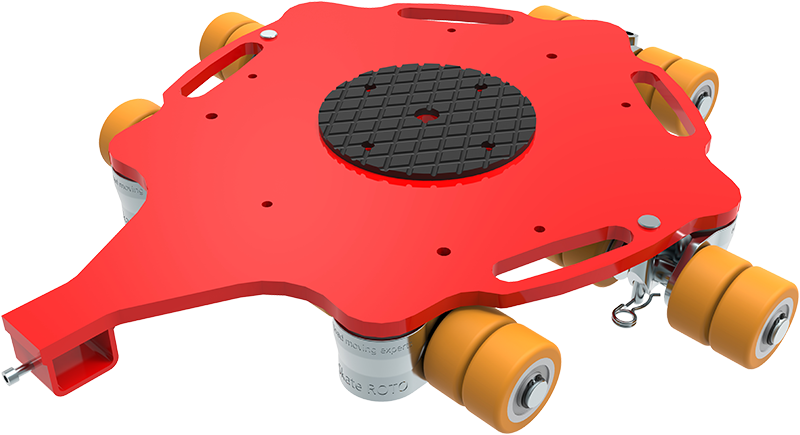

The fol­low­ing dis­tin­guish­es the rotat­ing trol­leys of the ECO-Skate ROTO (NY) series:

  • 360° rotat­able
    Opti­mal posi­tion­ing accu­ra­cy in the small­est space
  • Com­bin­able
    All Skates of the ROTO series can be com­bined with each oth­er and with trol­leys of the IDEAL or DUO series. The total load results from the sum of the indi­vid­ual load capac­i­ties.
  • HTS nylon wheels
    All Skates come stan­dard with HTS nylon wheels, which have very low rolling resis­tance. They are made of sol­id mate­r­i­al and not pro­duced by injec­tion mold­ing. As a result, they are par­tic­u­lar­ly high qual­i­ty and resis­tant to abra­sion. The very high pay­loads that result from this can nev­er be achieved with rolls of con­ven­tion­al nylon tubes. HTS nylon wheels can also be ordered sep­a­rate­ly.
  • Pulling and align­ment bars
    The load mov­ing skates of the ROTO series can be deliv­ered in the LS ver­sion with a vari­ety of pulling and align­ment bars. Spe­cial lengths on request.

For all areas of appli­ca­tion in which the stan­dard range from the stan­dard range is insuf­fi­cient, we design spe­cial solu­tions that are indi­vid­u­al­ly tai­lored to the cus­tomer needs.

ECO-Skate-ROTO-RM9-PU-174px

RM9 (PU)

Artikelnummer 10.009.07.40
Traglast (kg) 900
Maße L x B x H (mm) 287 x 225 x 60
Gewicht (kg) 6.8
ECO-Skate-ROTO-RMN9-NY-174px

RMN9 (NY)

Artikelnummer 10.009.08.40
Traglast (kg) 900
Maße L x B x H (mm) 287 x 225 x 60
Gewicht (kg) 6.3

The fol­low­ing dis­tin­guish­es the rotat­ing trol­leys of the ECO-Skate ROTO (NY) series:

  • 360° rotat­able
    Opti­mal posi­tion­ing accu­ra­cy in the small­est space
  • Com­bin­able
    All Skates of the ROTO series can be com­bined with each oth­er and with trol­leys of the IDEAL or DUO series. The total load results from the sum of the indi­vid­ual load capac­i­ties.
  • HTS wheels
    The skates are equipped as stan­dard with HTS high qual­i­ty, non-mark­ing polyurethane wheels, which can also be ordered sep­a­rate­ly. Equip­ment with HTS steel wheels on request.
  • Pulling and align­ment bars
    The load mov­ing skates of the ROTO series can be deliv­ered in the LS ver­sion with a vari­ety of pulling and align­ment bars. Spe­cial lengths on request.

For all areas of appli­ca­tion in which the stan­dard range from the stan­dard range is insuf­fi­cient, we design spe­cial solu­tions that are indi­vid­u­al­ly tai­lored to the cus­tomer needs.

ECO-Skate ROTO R14-G (PU)

R14-G (PU)

Artikelnummer 10.014.04.40
Traglast (kg) 1400
Maße L x B x H (mm) 550 x 467 x 102

R14 (PU)

Artikelnummer 10.014.04.41
Traglast (kg) 1400
Maße L x B x H (mm) 550 x 467 x 110
Gewicht (kg) 24

The fol­low­ing dis­tin­guish­es the rotat­ing trol­leys of the ECO-Skate ROTO (NY) series:

  • 360° rotat­able
    Opti­mal posi­tion­ing accu­ra­cy in the small­est space
  • Com­bin­able
    All Skates of the ROTO series can be com­bined with each oth­er and with trol­leys of the IDEAL or DUO series. The total load results from the sum of the indi­vid­ual load capac­i­ties.
  • HTS nylon wheels
    All Skates come stan­dard with HTS nylon wheels, which have very low rolling resis­tance. They are made of sol­id mate­r­i­al and not pro­duced by injec­tion mold­ing. As a result, they are par­tic­u­lar­ly high qual­i­ty and resis­tant to abra­sion. The very high pay­loads that result from this can nev­er be achieved with rolls of con­ven­tion­al nylon tubes. HTS nylon wheels can also be ordered sep­a­rate­ly.
  • Pulling and align­ment bars
    The load mov­ing skates of the ROTO series can be deliv­ered in the LS ver­sion with a vari­ety of pulling and align­ment bars. Spe­cial lengths on request.

For all areas of appli­ca­tion in which the stan­dard range from the stan­dard range is insuf­fi­cient, we design spe­cial solu­tions that are indi­vid­u­al­ly tai­lored to the cus­tomer needs.

RN18-G (NY)

Artikelnummer 10.018.09.40
Traglast (kg) 1800
Maße L x B x H (mm) 550 x 467 x 102
ECO-Skate ROTO RN18 (NY)

RN18 (NY)

Artikelnummer 10.018.09.41
Traglast (kg) 1800
Maße L x B x H (mm) 550 x 467 x 110
Gewicht (kg) 22

RF24-G (PU)

Artikelnummer 10.024.04.40
Traglast (kg) 2400
Maße L x B x H (mm) 588 x 467 x 102

RF24 (PU)

Artikelnummer 10.024.04.41
Traglast (kg) 2400
Maße L x B x H (mm) 588 x 467 x 110
Gewicht (kg) 35.5
ECO-Skate-ROTO-RF48-PU-174px

RF48 (PU)

Artikelnummer 10.048.04.41
Traglast (kg) 4800
Maße L x B x H (mm) 650 x 585 x 110
Gewicht (kg) 44

RF48-G (PU)

Artikelnummer 10.060.04.40
Traglast (kg) 4800
Maße L x B x H (mm) 650 x 585 x 102
ECO-Skate ROTO RF64 (PU)

RF64 (PU)

Artikelnummer 10.064.04.41
Traglast (kg) 6400
Maße L x B x H (mm) 829 x 786 x 110
Gewicht (kg) 64

RF64-G (PU)

Artikelnummer 10.080.04.40
Traglast (kg) 6400
Maße L x B x H (mm) 829 x 786 x 102

RFN30-G (NY)

Artikelnummer 10.030.09.40
Traglast (kg) 3000
Maße L x B x H (mm) 588 x 467 x 110
ECO-Skate ROTO/ROTOflex RFN30

RFN30 (NY)

Artikelnummer 10.030.09.41
Traglast (kg) 3000
Rollengröße (mm) Ø 85 x 43,5
Anzahl der Rollen 8
Auflagefläche (mm) Ø 170
Maße L x B x H (mm) 588 x 467 x 110
Gewicht (kg) 33

RFN60-G (NY)

Artikelnummer 10.060.09.40
Traglast (kg) 6000
Maße L x B x H (mm) 650 x 585 x 102
ECO-Skate ROTO/ROTOflex RFN60

RFN60 (NY)

Artikelnummer 10.060.09.41
Traglast (kg) 6000
Rollengröße (mm) Ø 85 x 43,5
Anzahl der Rollen 16
Auflagefläche (mm) Ø 220
Maße L x B x H (mm) 650 x 585 x 110
Gewicht (kg) 43

RFN80-G (NY)

Artikelnummer 10.080.09.40
Traglast (kg) 8000
Maße L x B x H (mm) 829 x 786 x 102
Rotationsfahrwerke ECO-Skate ROTO (NY)

RFN80 (NY)

Artikelnummer 10.080.09.41
Traglast (kg) 8000
Rollengröße (mm) Ø 85 x 43,5
Anzahl der Rollen 20
Auflagefläche (mm) Ø 220
Maße L x B x H (mm) 829 x 786 x 110
Gewicht (kg) 59
ECO-Skate ROTO/ROTOflex RFX10

RFX10 (PU)

Artikelnummer 10.100.02.41
Traglast (kg) 10000
Rollengröße (mm) Ø 140 x 85
Anzahl der Rollen 8
Auflagefläche (mm) Ø 220
Maße L x B x H (mm) 830 x 710 x 180
Gewicht (kg) 126

RFX10-G (PU)

Artikelnummer 10.120.02.40
Traglast (kg) 10000
Maße L x B x H (mm) 830 x 710 x 172

RFXN12-G (NY)

Artikelnummer 10.120.03.40
Traglast (kg) 12000
Maße L x B x H (mm) 830 x 710 x 180
ECO-Skate ROTO/ROTOflex RFXN12

RFXN12 (NY)

Artikelnummer 10.120.03.41
Traglast (kg) 12000
Rollengröße (mm) Ø 140 x 85
Anzahl der Rollen 8
Auflagefläche (mm) Ø 220
Maße L x B x H (mm) 830 x 710 x 180
Gewicht (kg) 120
Transportfahrwerke ECO-Skate CR-Serie

RFN30-CR (NY)

Artikelnummer 12.030.09.40
Traglast (kg) 3000
Maße L x B x H (mm) 588 x 467 x 102
Bild folgt

RFN60-CR (NY)

Artikelnummer 12.060.09.40
Traglast (kg) 6000
Maße L x B x H (mm) 650 x 585 x 102
ECO-Skate ROTO Verbindungsstange mit Deichselaufnahme

ECO-Skate ROTO Deichsel mit Griff und Adapter

Artikelnummer 100.009.030
Maße L x B x H (mm) 1000 x 350 x 30
ECO-Skate ROTO Deichsel mit Anhängeöse und Adapter

ECO-Skate ROTO Deichsel mit Anhängeöse und Adapter

Artikelnummer 100.009.035
Maße L x B x H (mm) 1100 x 100 x 30
ECO-Skate ROTO Deichsel mit Anhängeöse, Griff und Adapter

ECO-Skate ROTO Deichsel mit Anhängeöse, Griff und Adapter

Artikelnummer 100.009.036
Maße L x B x H (mm) 1000 x 350 x 30
ECO-Skate ROTO Verbindungsstange mit Deichselaufnahme

ECO-Skate ROTO Verbindungsstange mit Deichselaufnahme

Artikelnummer 940.252.000
Maße L x B x H (mm) 2000 x 70 (40) x 25 **
ECO-Skate ROTO Verbindungsstange

ECO-Skate ROTO Verbindungsstange

Artikelnummer 940.620.920
Maße L x B x H (mm) 2000 x 40 x 25 **
