ECO-Skate ROTO RF64 (PU)

ECO-Skate® ROTOflex (PU)

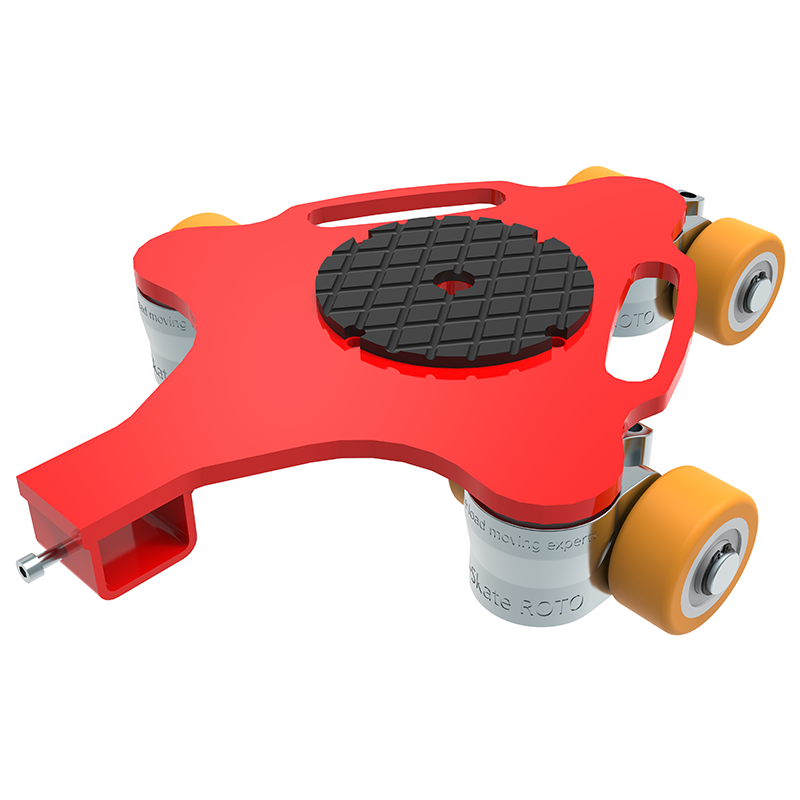

R14 (PU)

Article Number
10.014.04.41
Max. Capacity
1400 kg
Wheels
6 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 110 mm
Weight
24 kg
Fact sheet

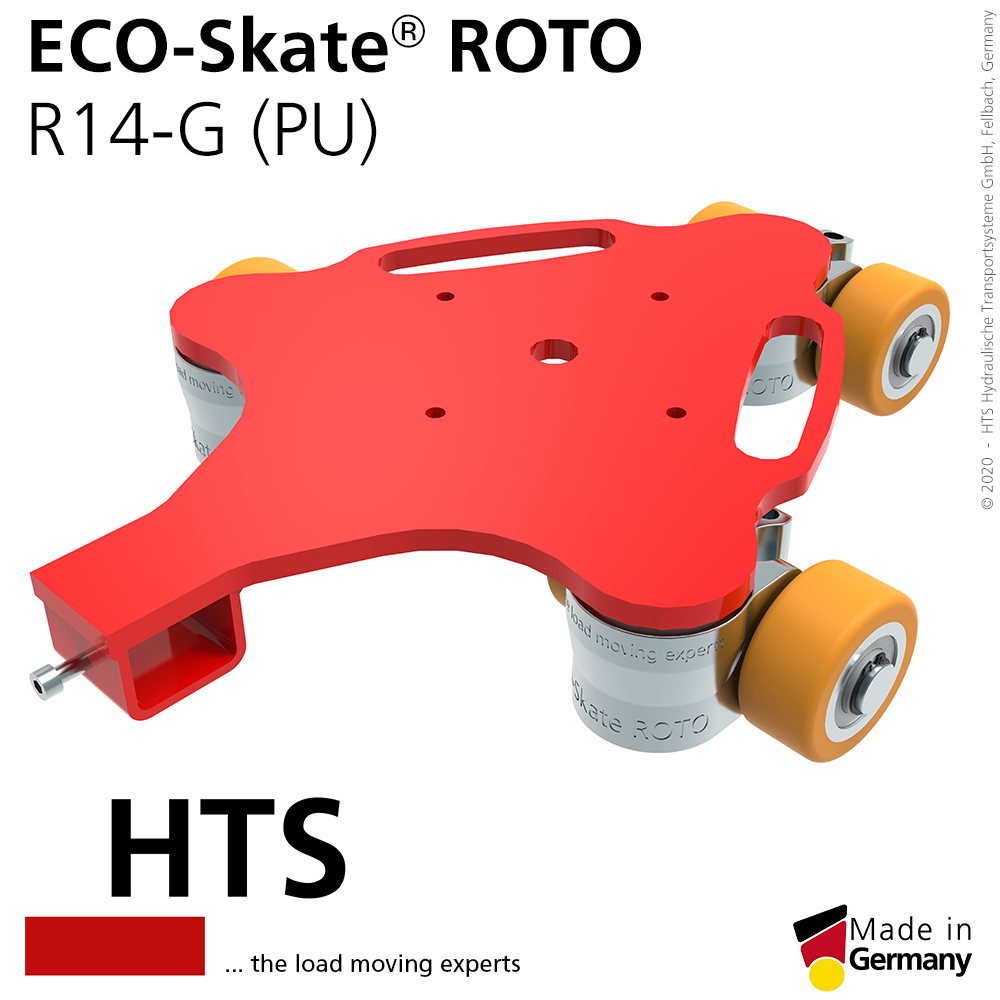

R14‑G (PU)

Article Number
10.014.04.40
Max. Capacity
1400 kg
Wheels
6 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 102 mm
Weight
24 kg
Fact sheet

RF24 (PU)

Article Number
10.024.04.41
Max. Capacity
2400 kg
Wheels
8 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 110 mm
Weight
36 kg
Fact sheet

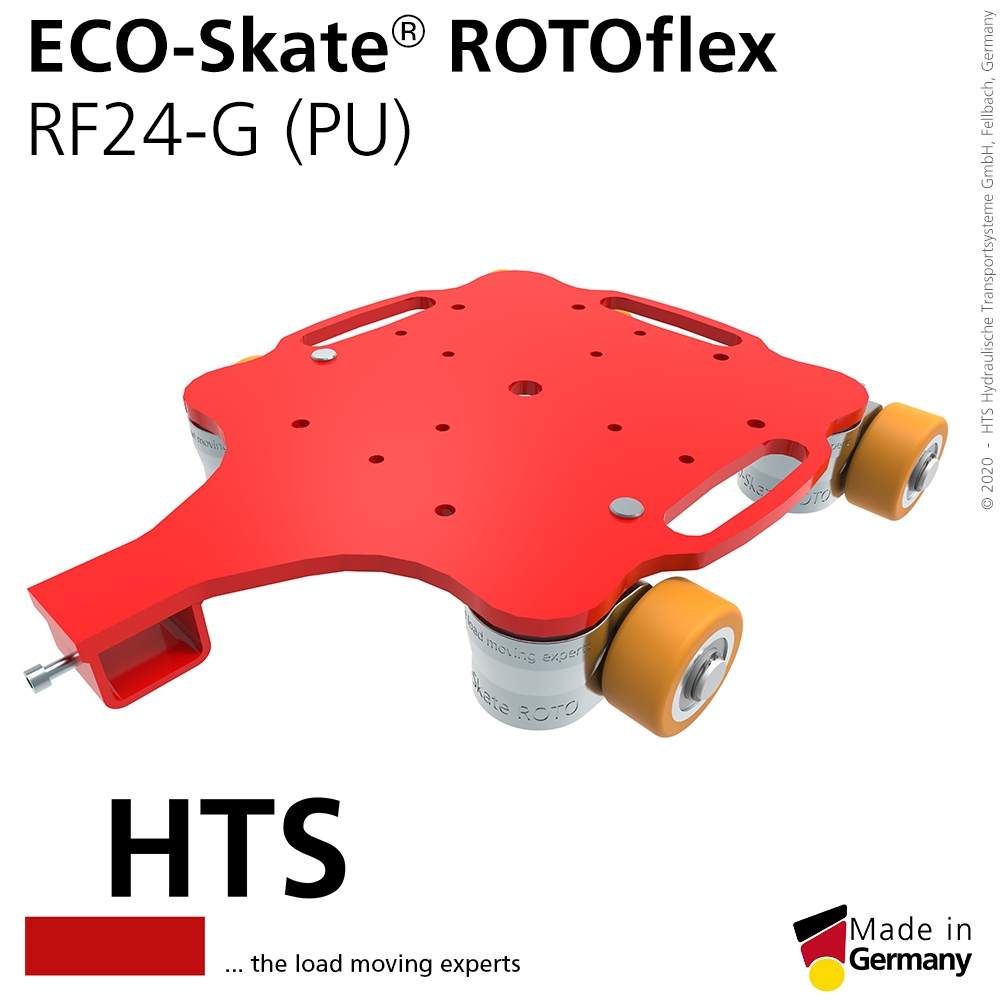

RF24‑G (PU)

Article Number
10.024.04.40
Max. Capacity
2400 kg
Wheels
8 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 102 mm
Weight
36 kg
Fact sheet

RF48 (PU)

Article Number
10.048.04.41
Max. Capacity
4800 kg
Wheels
16 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 110 mm
Weight
44 kg
Fact sheet

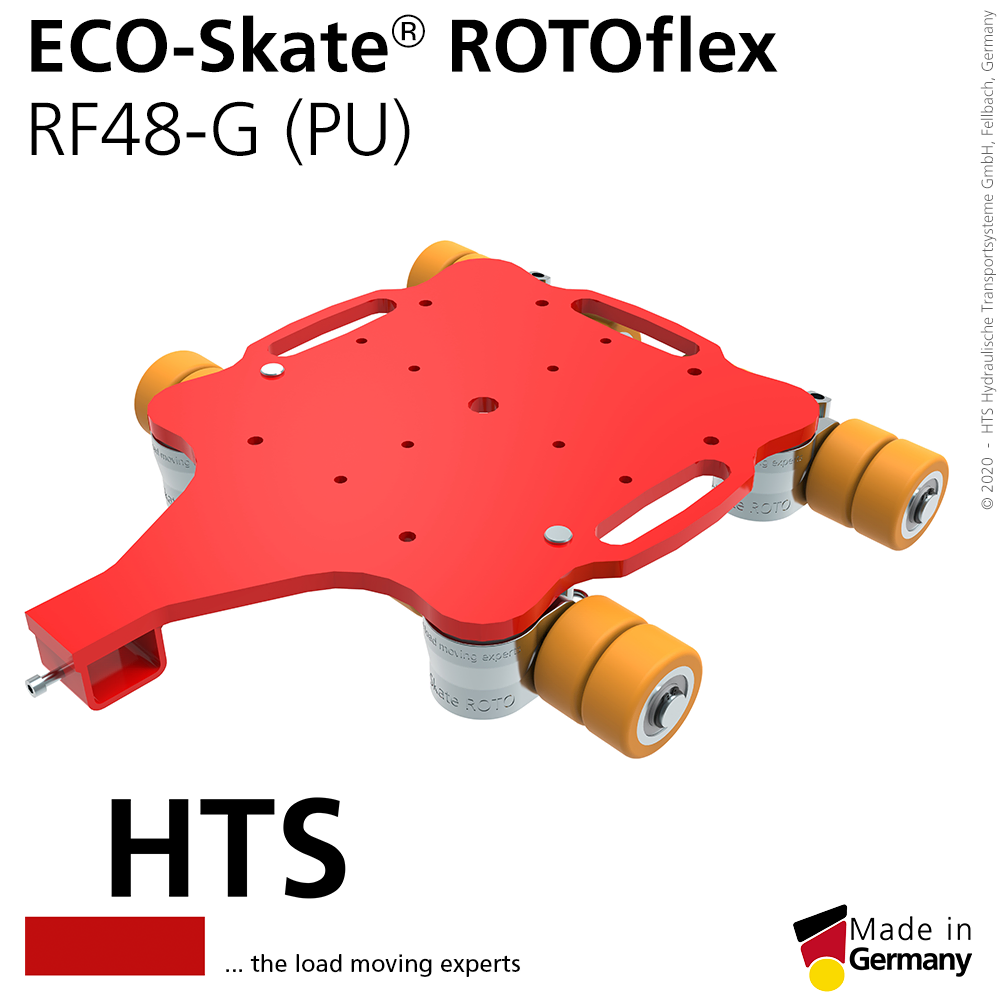

RF48‑G (PU)

Article Number
10.048.04.40
Max. Capacity
4800 kg
Wheels
16 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 102 mm
Weight
44 kg
Fact sheet

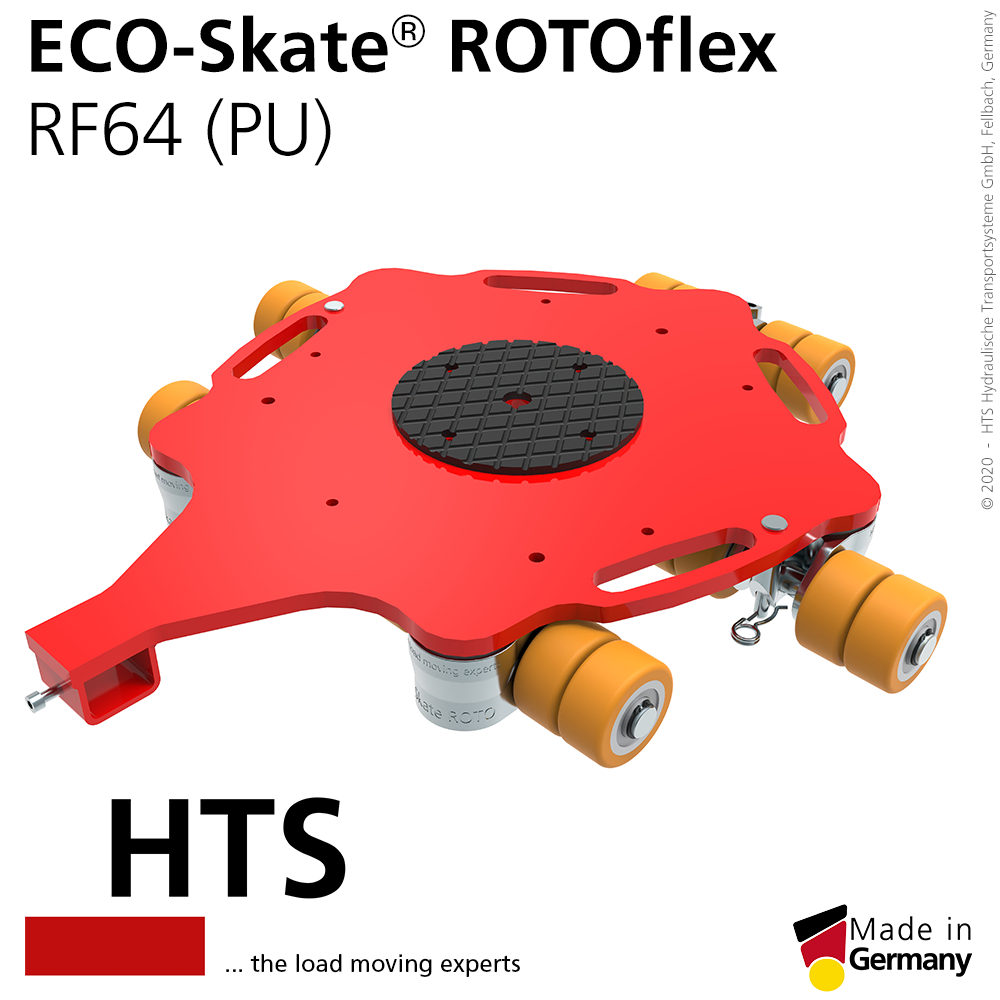

RF64 (PU)

Article Number
10.064.04.41
Max. Capacity
6400 kg
Wheels
20 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 110 mm
Weight
64 kg
Fact sheet

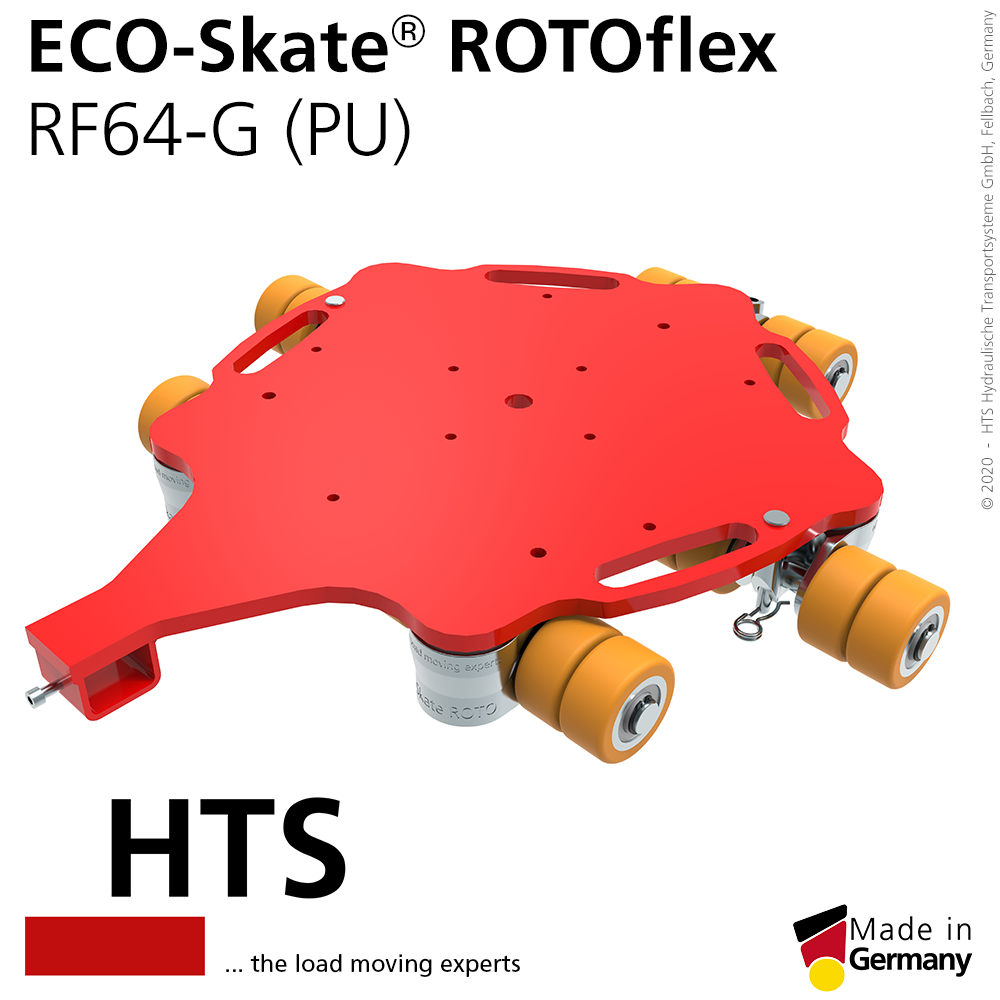

RF64‑G (PU)

Article Number
10.064.04.40
Max. Capacity
6400 kg
Wheels
20 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 102 mm
Weight
64 kg
Fact sheet
