Rotationsfahrwerke ECO-Skate ROTO (NY)

ECO-Skate® ROTOflex (NY)

360° rotational trolleys ECO-Skate® ROTO/ROTOflex

RFN18 (NY)

Article Number
10.018.09.41
Max. Capacity
1800 kg
Wheels
6 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 110 mm
Weight
22 kg
Fact sheet

RFN18‑G (NY)

Article Number
10.018.09.40
Max. Capacity
1800 kg
Wheels
6 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 102 mm
Weight
22 kg
Fact sheet

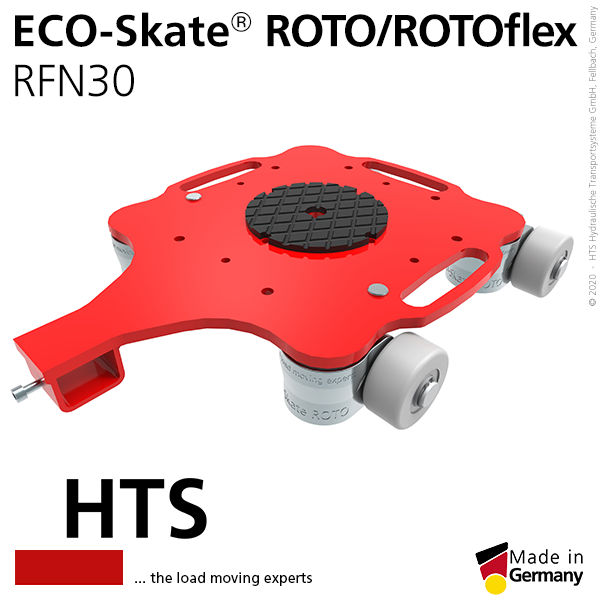

RFN30 (NY)

Article Number
10.030.09.41
Max. Capacity
3000 kg
Wheels
8 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 110 mm
Weight
33 kg
Fact sheet

RFN30‑G (NY)

Article Number
10.030.09.40
Max. Capacity
3000 kg
Wheels
8 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 102 mm
Weight
33 kg
Fact sheet

RFN60 (NY)

Article Number
10.060.09.41
Max. Capacity
6000 kg
Wheels
16 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 110 mm
Weight
43 kg
Fact sheet

RFN60‑G (NY)

Article Number
10.060.09.40
Max. Capacity
6000 kg
Wheels
16 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 102 mm
Weight
43 kg
Fact sheet

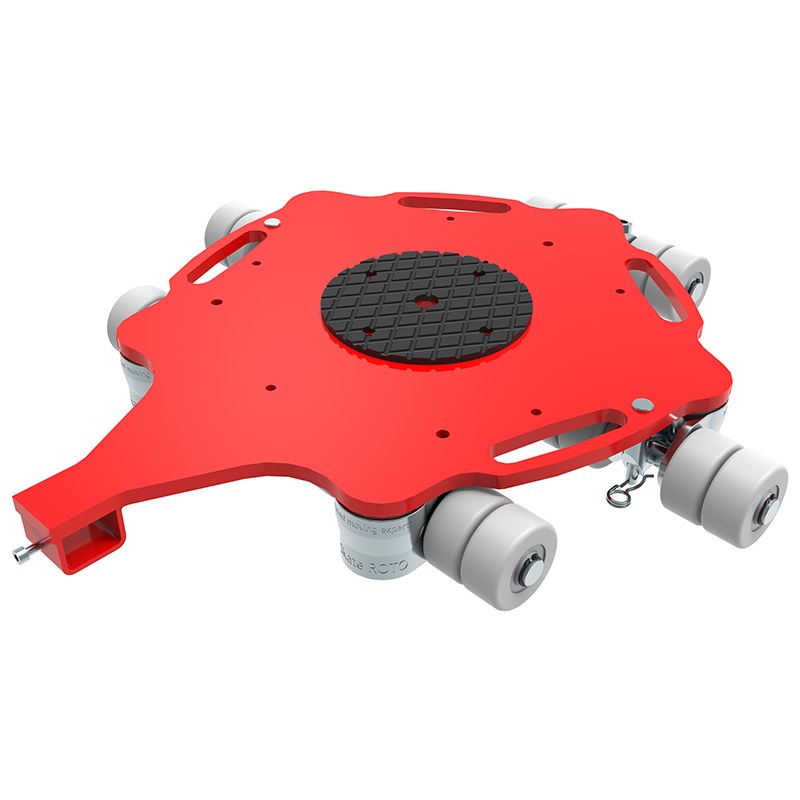

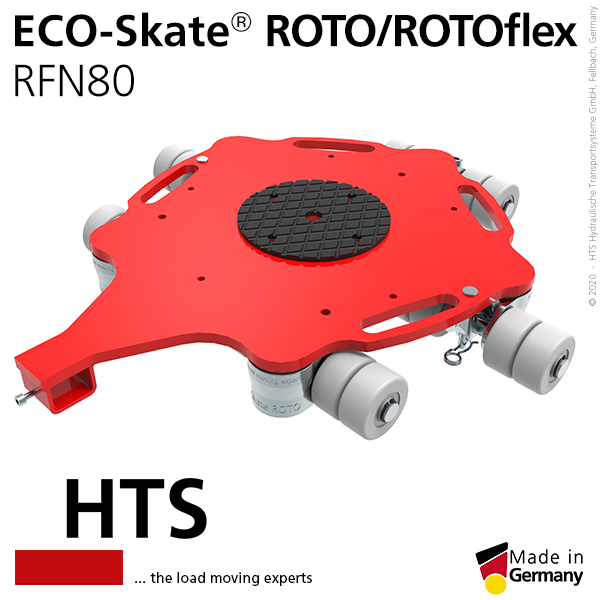

RFN80 (NY)

Article Number
10.080.09.41
Max. Capacity
8000 kg
Wheels
20 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 110 mm
Weight
59 kg
Fact sheet

RFN80‑G (NY)

Article Number
10.080.09.40
Max. Capacity
8000 kg
Wheels
20 pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 102 mm
Weight
59 kg
Fact sheet
