Hydraulic lift­ing devices of the ECO-Jack® G‑Series are char­ac­ter­ized by

  • the patent­ed lift­ing claw. It ensures a safe lift­ing of the load and can be adjust­ed with one hand with­out tilt­ing move­ment. This is espe­cial­ly long and flat for the round frames on mod­ern fork trucks.
  • min­i­mal self-weight. Improved con­struc­tion and high-qual­i­ty mate­r­i­al have reduced weight by up to 20% com­pared to sim­i­lar devices.
  • Pre­ci­sion milled guides made of high resis­tant and high qual­i­ty mate­r­i­al that guar­an­tee pre­cise lift­ing and low­er­ing move­ments and a long ser­vice life.
  • pump unit which can be swiveled by approx. 225 °. It allows the full pump stroke from any posi­tion.
  • a fine­ly dosed release valve, with which the load can be low­ered pre­cise­ly and the low­er­ing speed can be pre­cise­ly con­trolled.
  • an exter­nal hose cou­pler is stan­dard with the EJ100-3G. Exter­nal pumps can be con­nect­ed with the drip-free hydraulic nip­ple.
  • Side-mount­ed han­dles that allow full stroke move­ment of the 225º rotat­able pump unit from all posi­tions. The han­dles are not over at the top and do not need to be removed when the top plate is used for lift­ing.

For all areas of appli­ca­tion in which the stan­dard range is insuf­fi­cient, we design spe­cial solu­tions that are indi­vid­u­al­ly tai­lored to the cus­tomer needs.

ECO-Jack-Maschinenheber-G-Serie-EJ50-3G

EJ50-3G

Artikelnummer 01.051.30.10
Traglast (kg) 5000
Arbeitsdruck (bar) 520
Ansetzhöhe (mm) 25
Verstellbarkeit (mm) 3 x 81
Hubhöhe (mm) 140
Maße (mm) 282 x 237 x 262
Gewicht (kg) 22

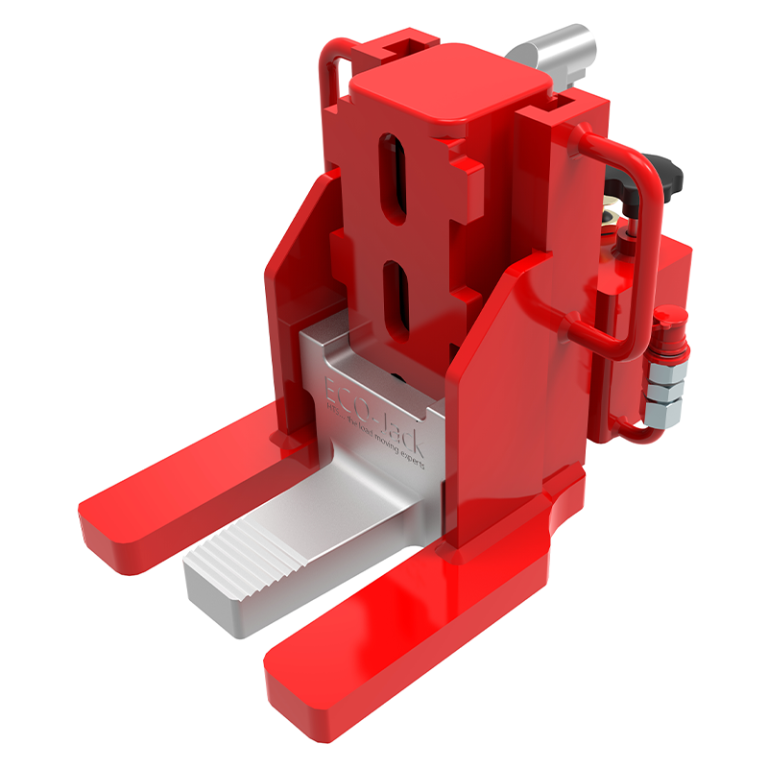

ECO-Jack-Maschinenheber-G-Serie-EJ100-3G-174px

EJ100-3G

Artikelnummer 01.101.30.10
Traglast (kg) 10000
Arbeitsdruck (bar) 520
Ansetzhöhe (mm) 30
Verstellbarkeit (mm) 3 x 75
Hubhöhe (mm) 140
Maße (mm) 345 x 257 x 263
Gewicht (kg) 30
