Hydraulic lifting devices of the ECO-Jack® S‑Series are charac­terized by

  • The patented lifting claw. It ensures a safe lifting of the load and can be adjusted with one hand without tilting movement.
  • A minimal self-weight. Improved construction and high-quality material have reduced weight by up to 20% compared to similar devices.
  • Precision guides guarantee precise lifting and lowering movements and a long service life.
  • pump unit which can be swiveled by approx. 225°. It allows the full pump stroke from any position.
  • A finely dosed release valve, with which the load can be lowered precisely and the lowering speed can be precisely controlled.
  • Swiveling legs to secure the load to be lifted. Tilting of the machine lifter is prevented.
  • Starting at 10 tonnes, external pumps can be connected with the drip-free hydraulic nipple.
  • Side-mounted handles, that allow full stroke movement of the 225º rotatable pump unit from all positions. The handles are not over at the top and do not need to be removed when the top plate is used for lifting.
  • Twin pumps (EJ150/​EJ250): The jacks EJ150-3S and EJ250-3S are equipped with a second pump unit. When in idle, the quick lifting feature generates an almost three times higher lifting speed.

For all areas of appli­cation in which the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

ECO-Jack-Maschinenheber-S-Serie-EJ30-5S

EJ30-5S

Article Number
01.030.50.10
Max Load
3000 kg
Working Pressure
520 bar
Claw Height
12 mm
Claw Length
44 mm
Stroke
140 mm
Adjustability
5 x 46 mm
Dimensions: Length x Width x Height
198 x 207 x 250 mm
Weight
15 kg
ECO-Jack-Maschinenheber-S-Serie-EJ60-4S

EJ60-4S

Article Number
01.060.40.10
Max Load
6000 kg
Working Pressure
520 bar
Claw Height
15 mm
Claw Length
40 mm
Stroke
140 mm
Adjustability
4 x 58 mm
Dimensions: Length x Width x Height
216 x 228 x 252 mm
Weight
19 kg

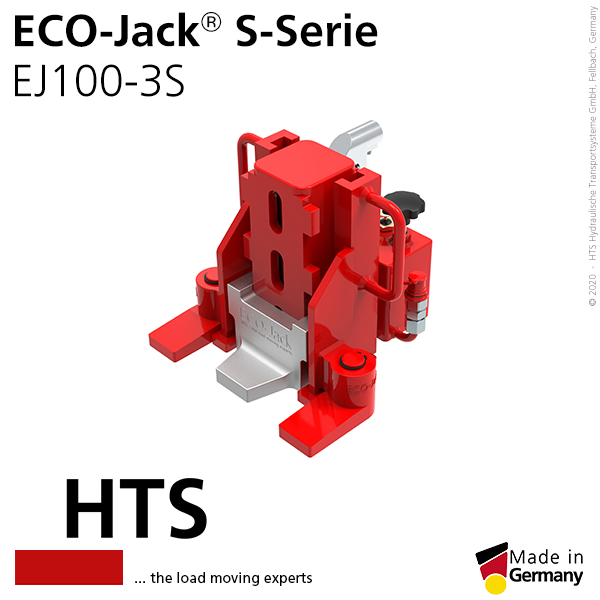

ECO-Jack-Maschinenheber-S-Serie-EJ100-3S

EJ100-3S

Article Number
01.100.31.10
Max Load
10000 kg
Working Pressure
520 bar
Claw Height
20 mm
Claw Length
45 mm
Stroke
140 mm
Adjustability
3 x 75 mm
Dimensions: Length x Width x Height
271 x 277 x 250 mm
Weight
28 kg
ECO-Jack-Maschinenheber-S-Serie-EJ100-3S-600px

EJ150-3S

Article Number
01.150.31.10
Max Load
15000 kg
Working Pressure
520 bar
Claw Height
25 mm
Claw Length
55 mm
Stroke
140 mm
Adjustability
3 x 97 mm
Dimensions: Length x Width x Height
345 x 331 x 316 mm
Weight
50 kg

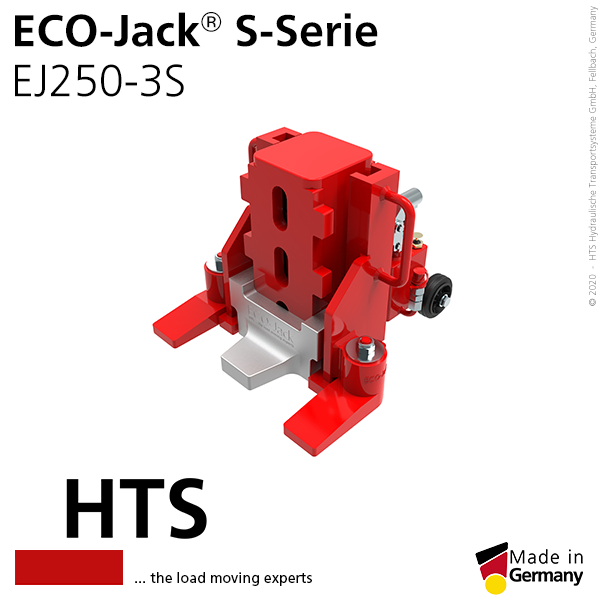

HTS ECO-Jack EJ250-3S

EJ250-3S

Article Number
01.250.31.10
Max Load
25000 kg
Working Pressure
520 bar
Claw Height
30 mm
Claw Length
60 mm
Stroke
140 mm
Adjustability
3 x 100 mm
Dimensions: Length x Width x Height
388 x 392 x 330 mm
Weight
72 kg
