The fol­low­ing dis­tin­guish­es the trans­port trol­leys of the ECO-Skate MINI (NY) series:

  • Pulling bar and align­ment bar
    The trans­port trol­leys of the MINI series come stan­dard with pulling bar and align­ment bar. Spe­cial lengths on request.
  • Low weight
    Prac­ti­cal grips, which are attached to all sus­pen­sions, and low weight makes the MINI series a flex­i­ble com­pan­ion.
  • Can be com­bined
    All trans­port trol­leys of the MINI series can be com­bined with one anoth­er as desired. The total load results from the sum of the indi­vid­ual load capac­i­ties.
  • HTS wheels
    The Skates are equipped as stan­dard with HTS high qual­i­ty nylon wheels, which can also be ordered sep­a­rate­ly.

For all areas of appli­ca­tion in which the stan­dard range from the stan­dard range is insuf­fi­cient, we design spe­cial solu­tions that are indi­vid­u­al­ly tai­lored to the cus­tomer.

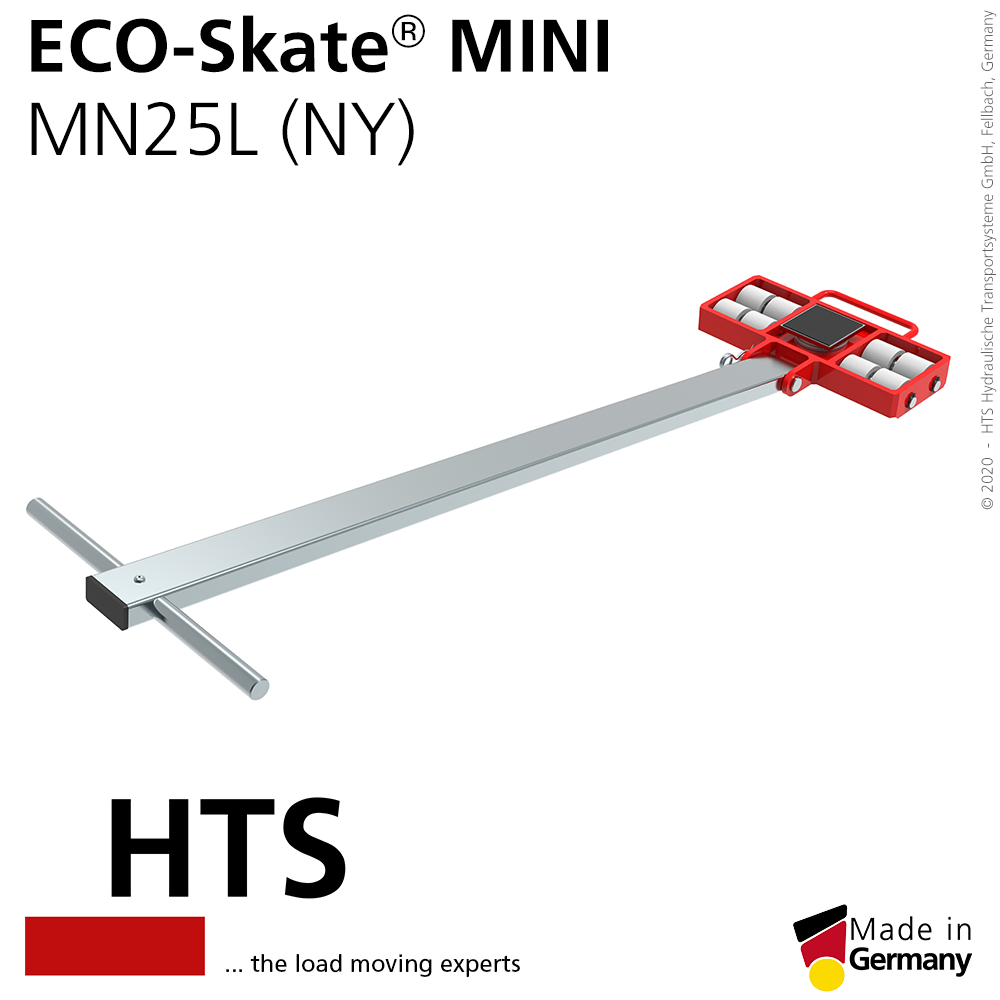

ECO-Skate MINI MN25L (NY)

MN25L (NY)

Artikelnummer 10.025.08.10
Traglast (kg) 2500
Maße L x B x H (mm) 250 x 329 x 60
Deichsellänge (mm) 1000
Gewicht (kg) 9.5

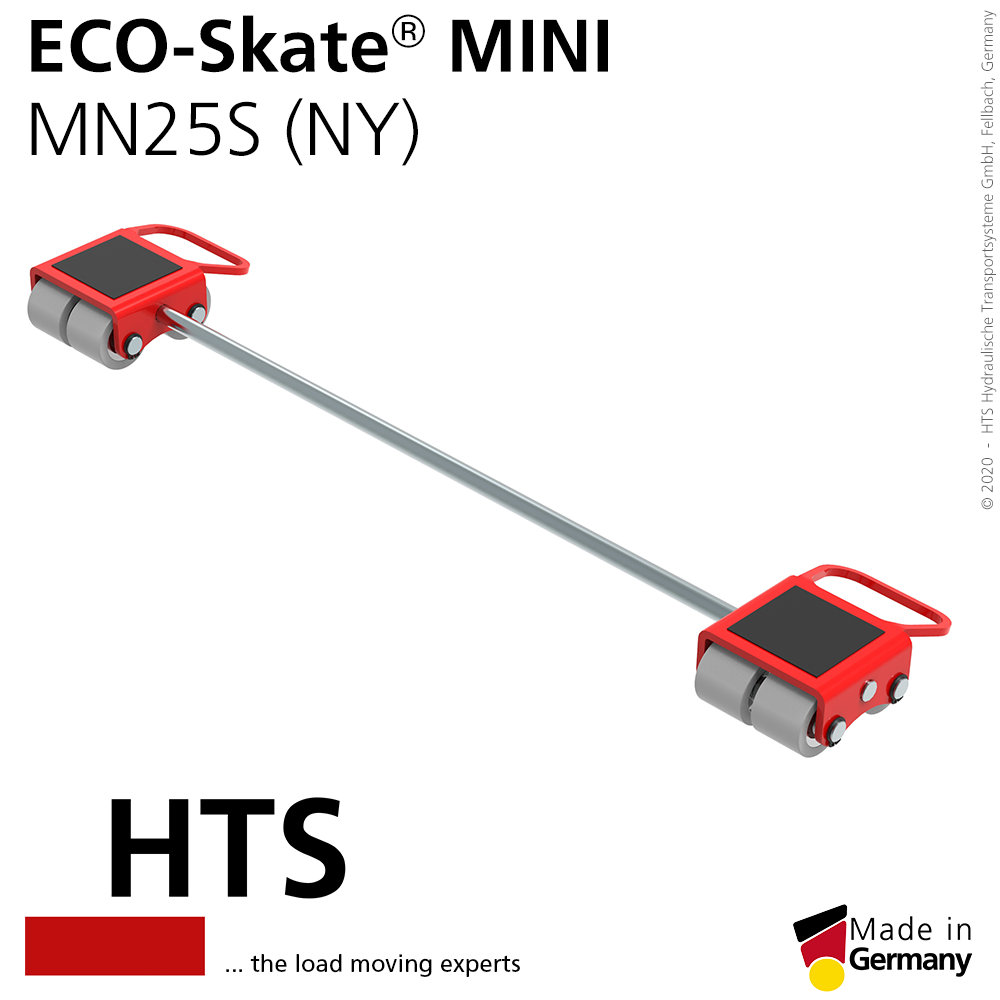

ECO-Skate MINI MN25S (NY)

MN25S (NY)

Artikelnummer 10.025.08.20
Traglast (kg) 2 x 1250
Maße L x B x H (mm) 162 x 114 x 60
Verstellbarkeit (mm) 116 - 690
Gewicht (kg) 4.65

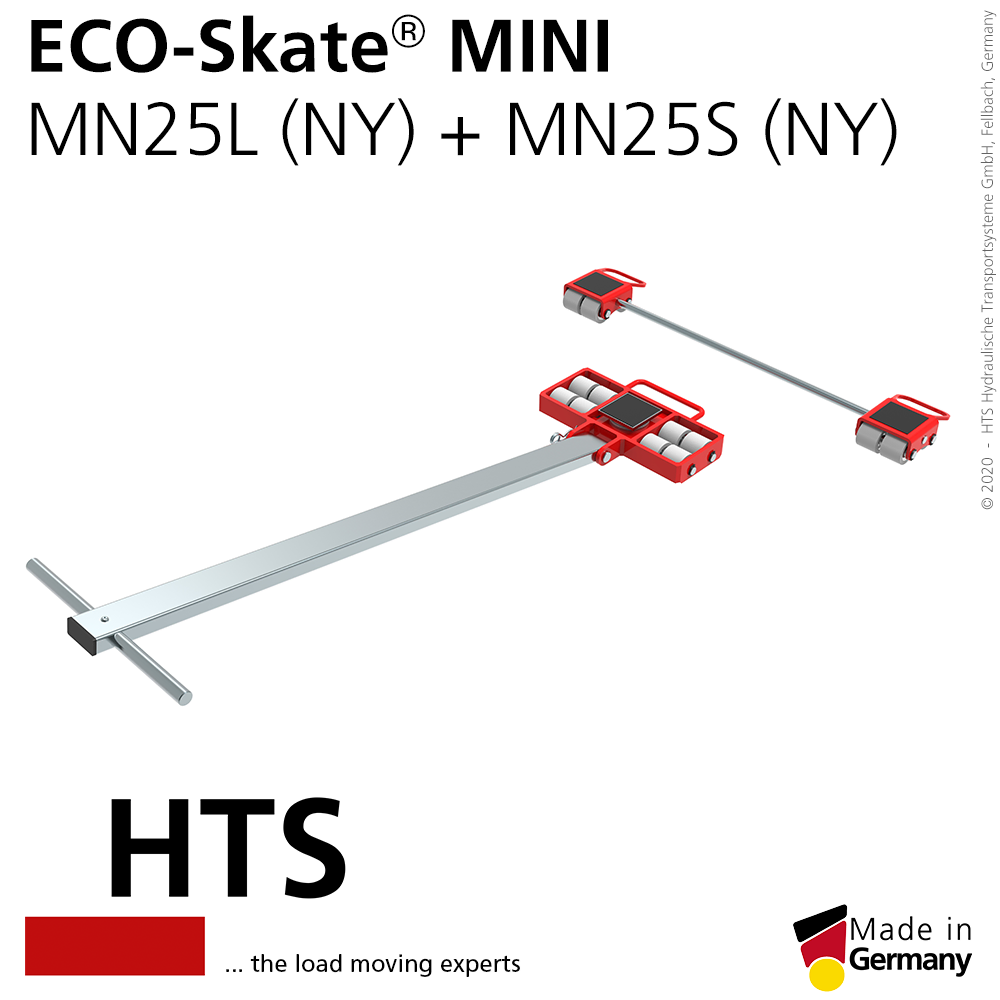

ECO-Skate MINI MN25L (NY) + MN25S (NY)

MN25L (NY) + MN25S (NY) Set

Artikelnummer 10.025.08.xx
Traglast (kg) 5000

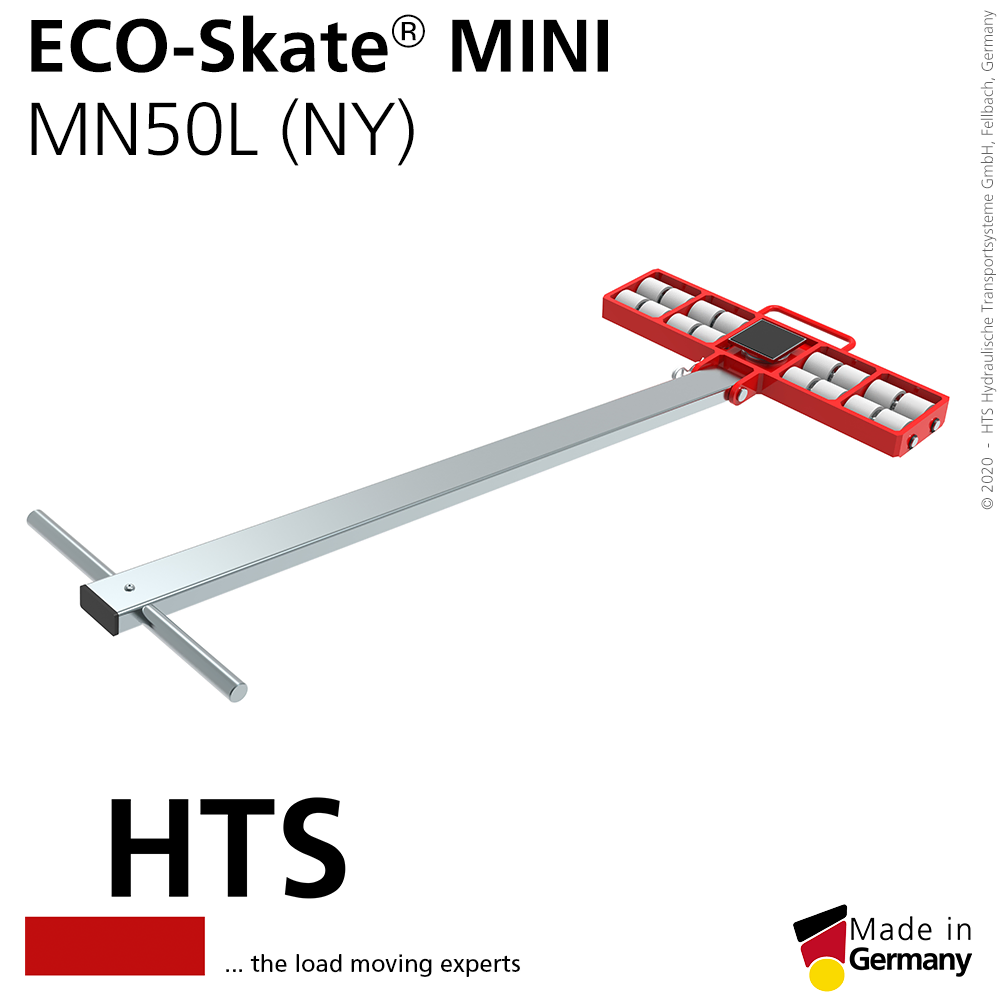

ECO-Skate MINI MN50L (NY)

MN50L (NY)

Artikelnummer 10.050.08.10
Traglast (kg) 5000
Maße L x B x H (mm) 250 x 533 x 60
Deichsellänge (mm) 1000
Gewicht (kg) 12.6

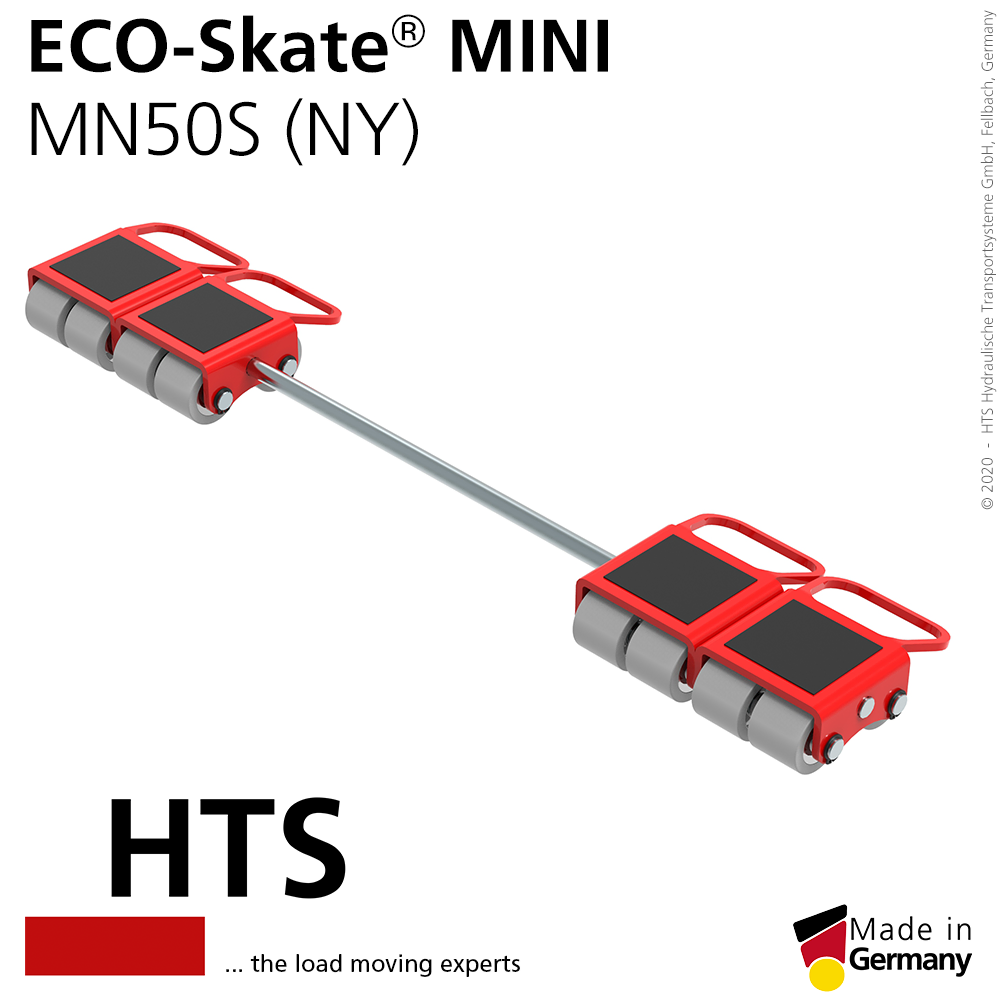

ECO-Skate MINI MN50S (NY)

MN50S (NY)

Artikelnummer 10.050.08.20
Traglast (kg) 4 x 1250
Maße L x B x H (mm) 250 x 533 x 60
Deichsellänge (mm) 1000
Gewicht (kg) 12.6

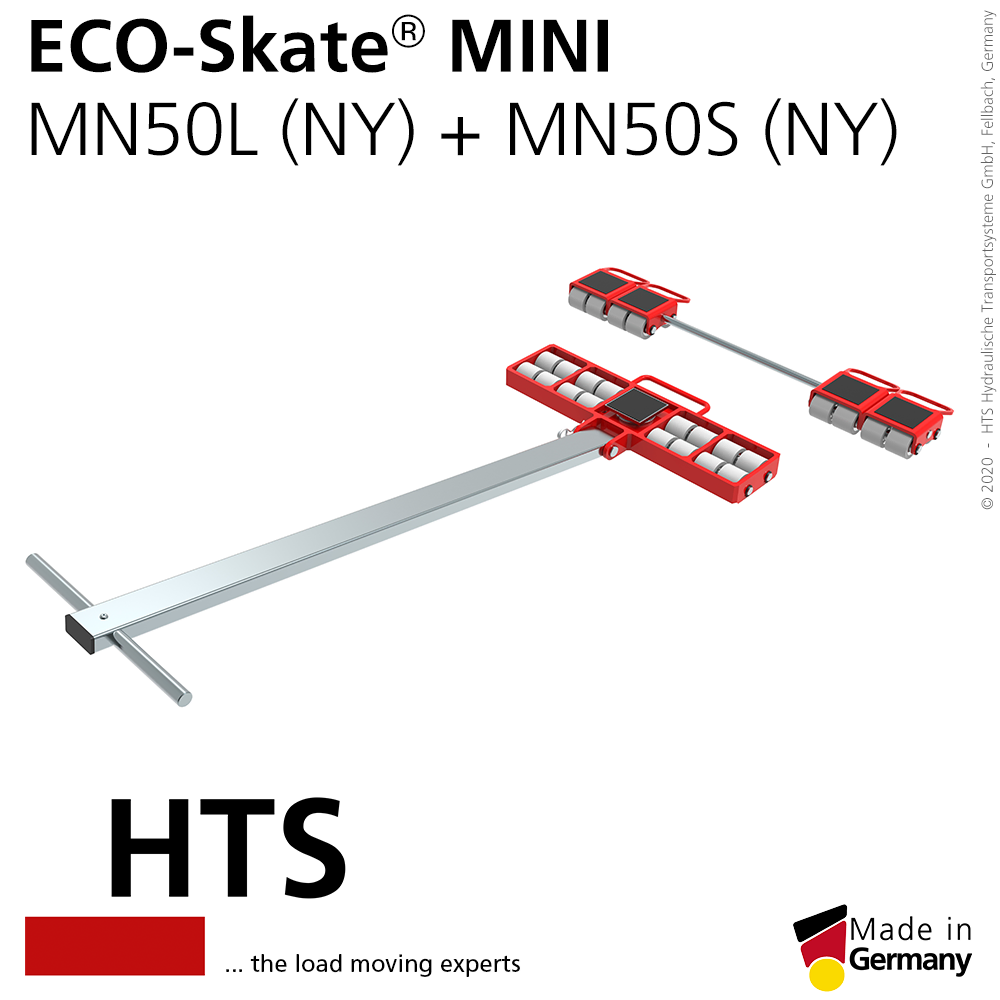

ECO-Skate MINI MN50L (NY) + MN50S (NY)

MN50L (NY) + MN50S (NY) Set

Artikelnummer 10.050.08.xx
Traglast (kg) 10000
