The following distin­guishes the transport trolleys of the ECO-Skate MINI (PU) series:

  • Pulling bar and alignment bar
    The transport trolleys of the MINI series come standard with pulling bar and alignment bar. Special lengths on request.
  • Low weight
    Practical grips, which are attached to all suspen­sions, and low weight makes the MINI series a flexible companion.
  • Can be combined
    All transport trolleys of the MINI series can be combined with one another as desired. The total load results from the sum of the individual load capac­ities.
  • HTS wheels
    The Skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request.

For all areas of appli­cation in which the standard range from the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer.

491277104263374

M25L (PU)

Article Number
10.025.07.10
Max Load: Load Areas x Max Load
2500 kg
Handle Length
1000 mm
Dimensions: Length x Width x Height
250 x 329 x 60 mm
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 mm
Weight
10.5 kg
ECO-Skate-MINI-M25S-PU

M25S (PU)

Article Number
10.025.07.20
Max Load: Load Areas x Max Load
2 x 1250 kg
Dimensions: Length x Width x Height
162 x 114 x 60 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 mm
Weight
5.6 kg
ECO-Skate-MINI-M25L-PU-M25S-PU-Set

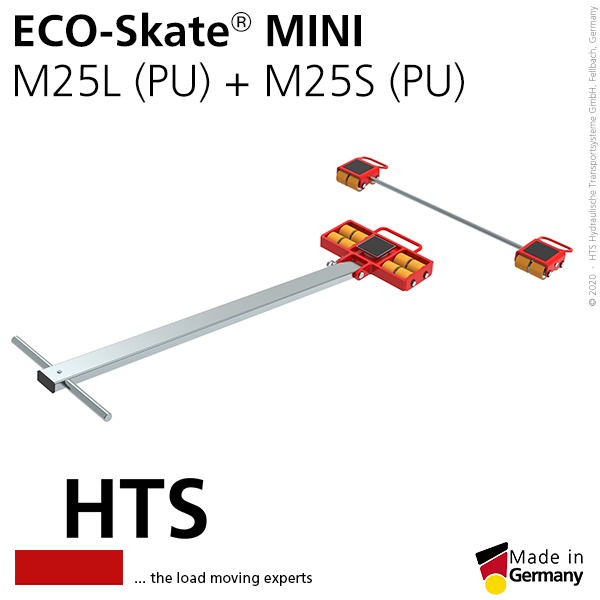

M25L (PU) + M25S (PU) Set

Article Number
10.025.07.xx
Weight
5000 kg
ECO-Skate-MINI-M50L-PU

M50L (PU)

Article Number
10.050.07.10
Max Load: Load Areas x Max Load
5000 kg
Handle Length
1000 mm
Dimensions: Length x Width x Height
250 x 533 x 60 mm
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 mm
Weight
14.6 kg
ECO-Skate-MINI-M50S-PU

M50S (PU)

Article Number
10.050.07.20
Max Load: Load Areas x Max Load
1250 kg
Dimensions: Length x Width x Height
163 x 116 x 60 mm
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 mm
Weight
10 kg
ECO-Skate-MINI-M50L-PU-M50S-PU-Set

M50L (PU) + M50S (PU) Set

Article Number
10.050.07.xx
Weight
10000 kg
