The following distin­guishes the transport trolleys of the ECO-Skate IDEAL (PU) series:

  • Pulling bar and alignment bar
    The skates of the IDEAL series come standard with pulling bar and alignment bar. Special lengths on request.
  • Foldable alignment bar
    The alignment bar of the i60S, i90S and i120S can be folded.
  • Combineable
    All load moving skates of the IDEAL series can be combined with each other and with trolleys of the series IDEAL (NY), ROTO and DUO. The total load results from the sum of the individual load capac­ities.
  • HTS wheels
    The skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request.

For all areas of appli­cation in which the standard range from the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

ECO-Skate-IDEAL-i30L-PU

i30L (PU)

Article Number
10.030.00.10
Max Load: Load Areas x Max Load
3000 kg
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
238 x 268 x 110 mm
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
13.5 kg
ECO-Skate-IDEAL-i30S-PU

i30S (PU)

Article Number
10.030.00.20
Max Load: Load Areas x Max Load
2 x 1500 kg
Dimensions: Length x Width x Height
246 x 120 x 110 mm
Wheels
2 x 2 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
14 kg

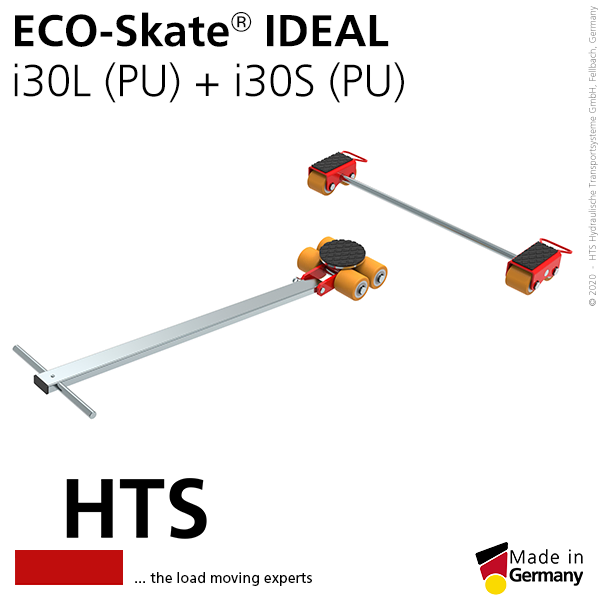

ECO-Skate-IDEAL-i30L-PU-i30S-PU-Set

i30L (PU) + i30S (PU) Set

Article Number
10.030.00.xx
Max Load: Load Areas x Max Load
6000 kg
ECO-Skate-IDEAL-i60L-PU-174px

i60L (PU)

Article Number
10.060.00.10
Max Load: Load Areas x Max Load
6000 kg
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
339 x 483 x 110 mm
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
26 kg
ECO-Skate-IDEAL-i60S-PU

i60S (PU)

Article Number
10.060.00.20
Max Load: Load Areas x Max Load
2 x 3000 kg
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
29 kg

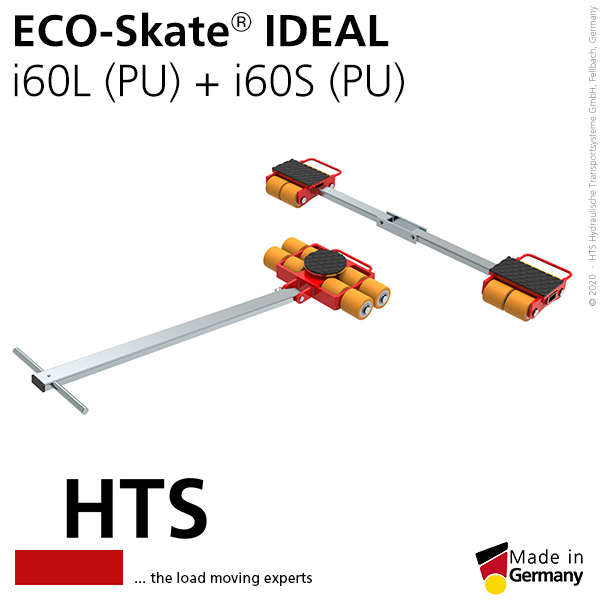

i60L (PU) + i60S (PU) Set

Article Number
10.060.00.xx
Max Load: Load Areas x Max Load
12000 kg
ECO-Skate-IDEAL-i90L-PU

i90L (PU)

Article Number
10.090.00.10
Max Load: Load Areas x Max Load
9000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
258 x 780 x 110 mm
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
57 kg
ECO-Skate-IDEAL-i90S-PU

i90S (PU)

Article Number
10.090.00.20
Max Load: Load Areas x Max Load
2 x 4500 kg
Dimensions: Length x Width x Height
295 x 295 x 110 mm
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
36 kg

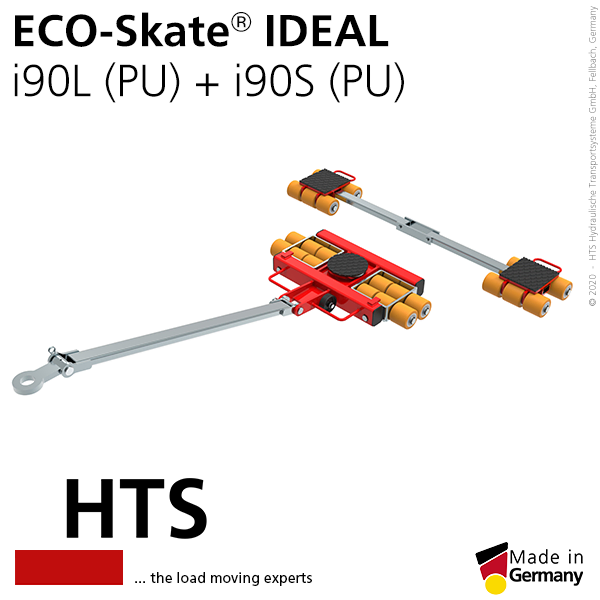

ECO-Skate-IDEAL-i90L-PU-i90S-PU-Set

i90L (PU) + i90S (PU) Set

Article Number
10.090.00.xx
Max Load: Load Areas x Max Load
18000 kg
ECO-Skate-IDEAL-i120L-PU

i120L (PU)

Article Number
10.120.00.10
Max Load: Load Areas x Max Load
12000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 982 x 110 mm
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
68 kg
ECO-Skate-IDEAL-i120S-PU

i120S (PU)

Article Number
10.120.00.20
Max Load: Load Areas x Max Load
2 x 6000 kg
Dimensions: Length x Width x Height
291 x 382 x 110 mm
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
45 kg

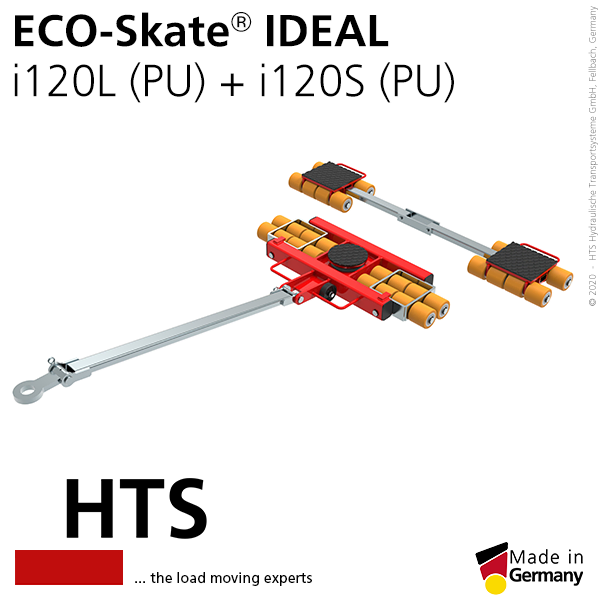

ECO-Skate-IDEAL-i120L-PU-i120S-PU-Set-174px

i120L (PU) + i120S (PU) Set

Article Number
10.120.00.xx
Max Load: Load Areas x Max Load
24000 kg
ECO-Skate-IDEAL-i150L-PU

i150L (PU)

Article Number
10.150.00.10
Max Load: Load Areas x Max Load
15000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
568 x 1192 x 110 mm
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
99 kg
ECO-Skate-IDEAL-i150S-PU

i150S (PU)

Article Number
10.150.00.20
Max Load: Load Areas x Max Load
2 x 75000 kg
Dimensions: Length x Width x Height
291 x 500 x 110 mm
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
67 kg
ECO-Skate-IDEAL-i150L-PU-150S-PU-Set

i150L (PU) + i150S (PU) Set

Article Number
10.150.00.xx
Max Load: Load Areas x Max Load
30000 kg
