The following distin­guishes the transport trolleys of the ECO-Skate CR series:

  • Pulling and alignment bars
    The transport skates of the CR series are delivered as standard with pulling and alignment bars. Special lengths on request.
  • Nickel-plated surface and low-wear wheels
    for use in clean rooms, the food industry and pharma­ceu­tical industry.
  • HTS high quality, non-marking nylon wheels
    All skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resis­tance. They are made of solid material and not produced by injection molding. As a result, they are partic­u­larly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conven­tional nylon tubes. HTS nylon wheels can also be ordered separately.
  • Combinable
    All transport skates with the same hight of the CR series can be combined with each other. The total load consists of the sum of the individual load capac­ities.

For all areas of appli­cation in which the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

Bild folgt

iN40L-CR

Article Number
12.040.01.10
Max Load: Load Areas x Max Load
4000 kg
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
238 x 268 x 110 mm
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
12 kg
Bild folgt

iN40S-CR

Article Number
12.040.01.20
Max Load: Load Areas x Max Load
2 x 2000 kg
Dimensions: Length x Width x Height
228 x 132 x 110 mm
Wheels
2 x 2 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
12 kg
Bild folgt

iN40L-CR + iN40S-CR Set

Article Number
12.040.01.xx
Max Load: Load Areas x Max Load
8000 kg
Bild folgt

iN80L-CR

Article Number
12.080.01.10
Max Load: Load Areas x Max Load
8000 kg
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
339 x 483 x 110 mm
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
21 kg
Bild folgt

iN80S-CR

Article Number
12.080.01.20
Max Load: Load Areas x Max Load
2 x 4000 kg
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
25 kg
Bild folgt

iN80L-CR + iN80S-CR Set

Article Number
12.080.01.xx
Max Load: Load Areas x Max Load
16000 kg
Bild folgt

iN120L-CR

Article Number
12.120.01.10
Max Load: Load Areas x Max Load
12000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
525 x 780 x 110 mm
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
50 kg
Bild folgt

iN120S-CR

Article Number
12.120.01.20
Max Load: Load Areas x Max Load
2 x 6000 kg
Dimensions: Length x Width x Height
295 x 295 x 110 mm
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
29 kg
Bild folgt

iN120L-CR + iN120S-CR Set

Article Number
12.120.01.xx
Max Load: Load Areas x Max Load
24000 kg
Bild folgt

iN160L-CR

Article Number
12.160.01.10
Max Load: Load Areas x Max Load
16000 kg
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
525 x 982 x 110 mm
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
60 kg
Bild folgt

iN160S-CR

Article Number
12.160.01.20
Max Load: Load Areas x Max Load
2 x 8000 kg
Dimensions: Length x Width x Height
291 x 382 x 110 mm
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
36 kg

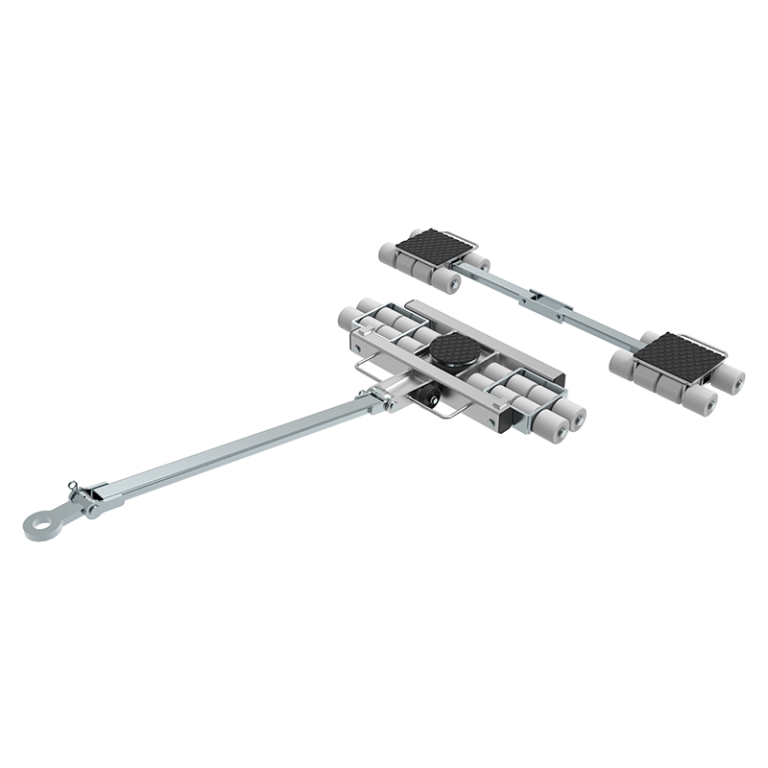

ECO-Skate-CR-iN160L-CR-iN160S-CR-Set

iN160L-CR + iN160S-CR Set

Article Number
12.160.01.xx
