The following distinguishes the transport trolleys of the ECO-Skate BIG (PU) series:

  • Single support
    Each wheel is individually mounted on the BIG Series frame or wheel boxes. This prevents bending of the axis in the event of a short-term overload.
  • Pulling bar and alignment bar
    The load moving skates of the BIG series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the BIG series can be combined with each other. The total load results from the sum of the individual load capacities.
  • HTS high polyurethane wheels
    The skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

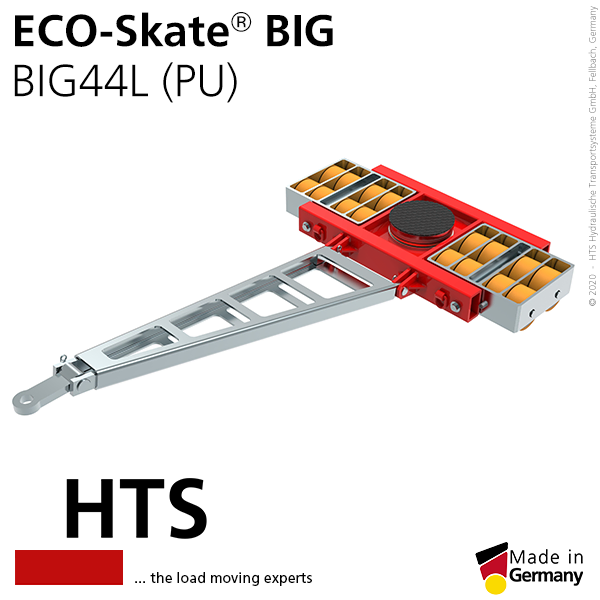

ECO-Skate-BIG-BIG44L-PU

BIG44L (PU)

Artikelnummer 09.044.04.10
Traglast (kg) 44000
Maße L x B x H (mm) 738 x 1390 x 220
Deichsellänge (mm) 1775
Verstellbarkeit (mm) -
Gewicht (kg) 392

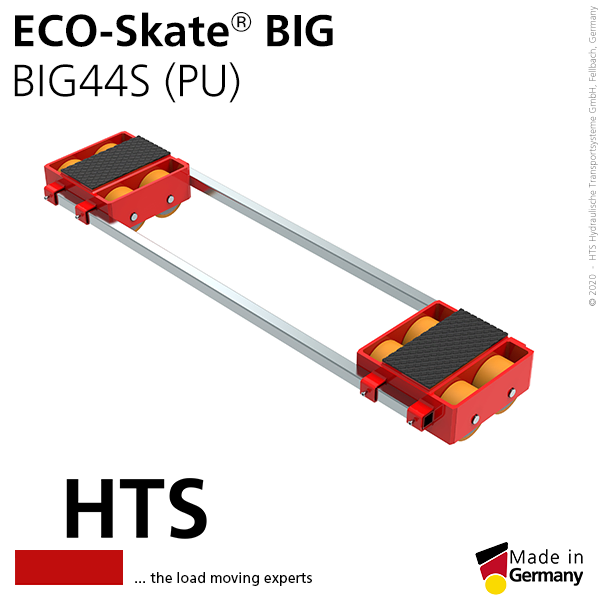

ECO-Skate-BIG-BIG44S-PU

BIG44S (PU)

Artikelnummer 09.044.04.20
Traglast (kg) 2 x 22000
Maße L x B x H (mm) 542 x 436 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 450 - 1736
Gewicht (kg) 220

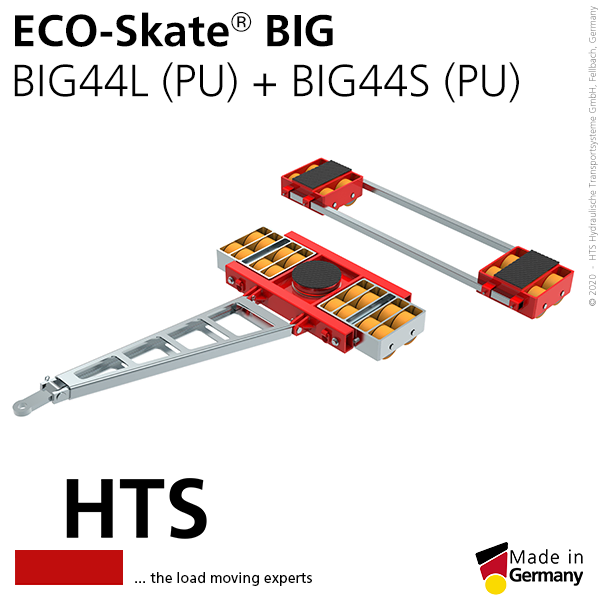

ECO-Skate-BIG-BIG44L-PU-BIG44S-PU-Set

BIG44L (PU) + BIG44S (PU) Set

Artikelnummer 09.044.04.xx
Traglast (kg) 88000

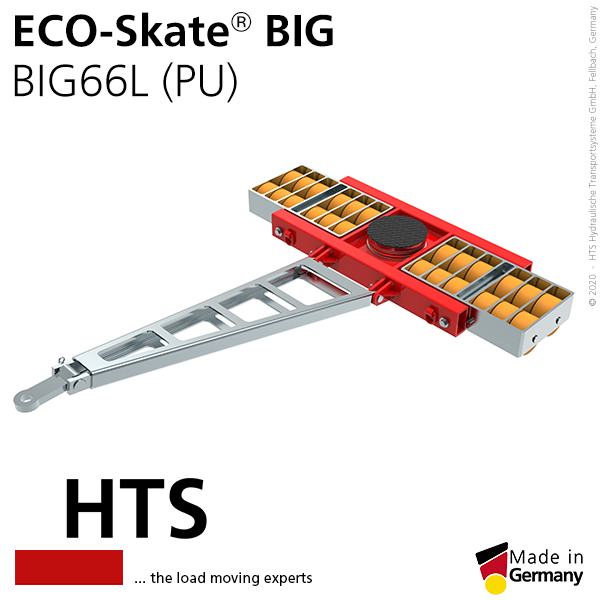

ECO-Skate-BIG-BIG66L-PU

BIG66L (PU)

Artikelnummer 09.066.04.10
Traglast (kg) 66000
Maße L x B x H (mm) 738 x 1802 x 220
Deichsellänge (mm) 1775
Verstellbarkeit (mm) -
Gewicht (kg) 489

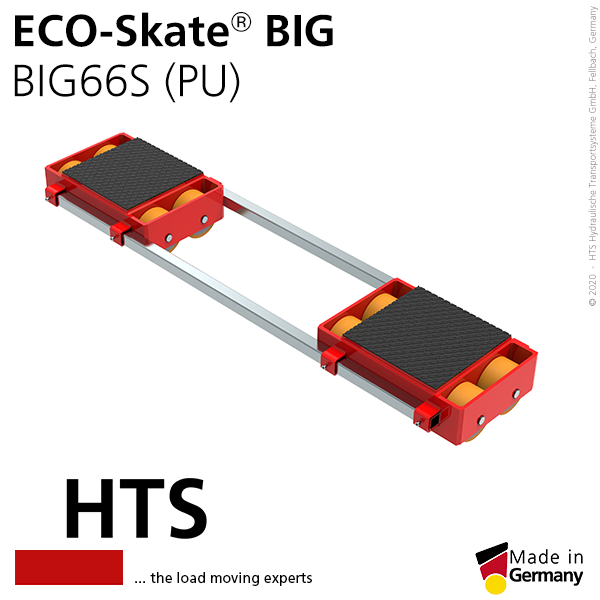

ECO-Skate-BIG-BIG66S-PU

BIG66S (PU)

Artikelnummer 09.066.04.20
Traglast (kg) 2 x 33000
Maße L x B x H (mm) 542 x 642 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 650 - 1530
Gewicht (kg) 326

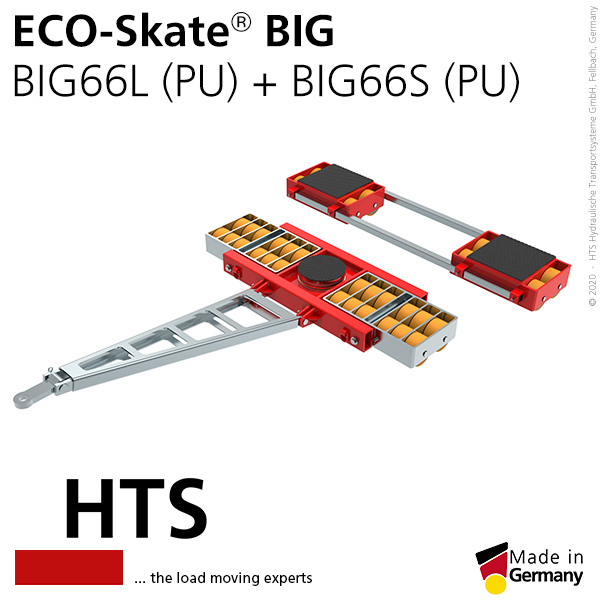

ECO-Skate-BIG-BIG66L-PU-BIG66S-PU-Set

BIG66L (PU) + BIG66S (PU) Set

Artikelnummer 09.066.04.xx
Traglast (kg) 132000

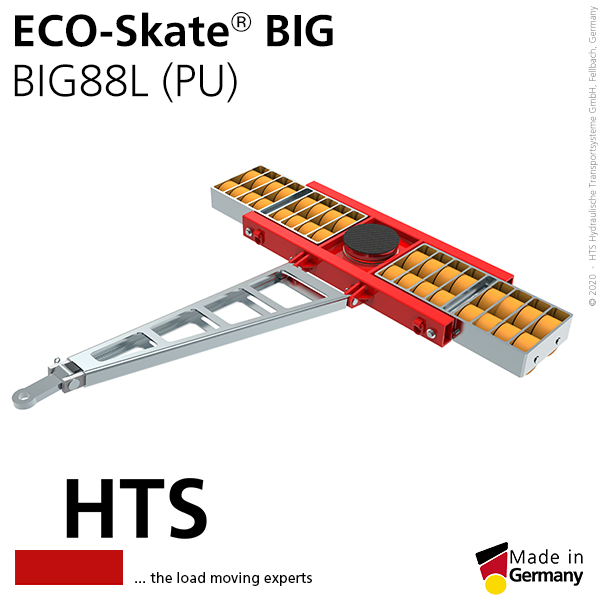

ECO-Skate-BIG-BIG88L-PU

BIG88L (PU)

Artikelnummer 09.088.04.10
Traglast (kg) 88000
Maße L x B x H (mm) 738 x 2214 x 220
Deichsellänge (mm) 1775
Verstellbarkeit (mm) -
Gewicht (kg) 585

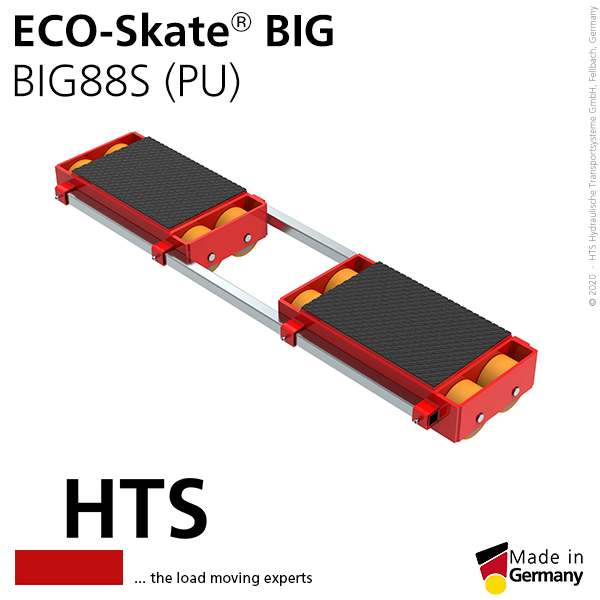

ECO-Skate-BIG-BIG88S-PU

BIG88S (PU)

Artikelnummer 09.088.04.20
Traglast (kg) 2 x 44000
Maße L x B x H (mm) 542 x 848 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 900 - 1320
Gewicht (kg) 432

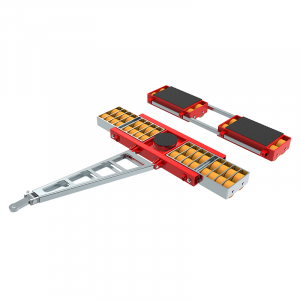

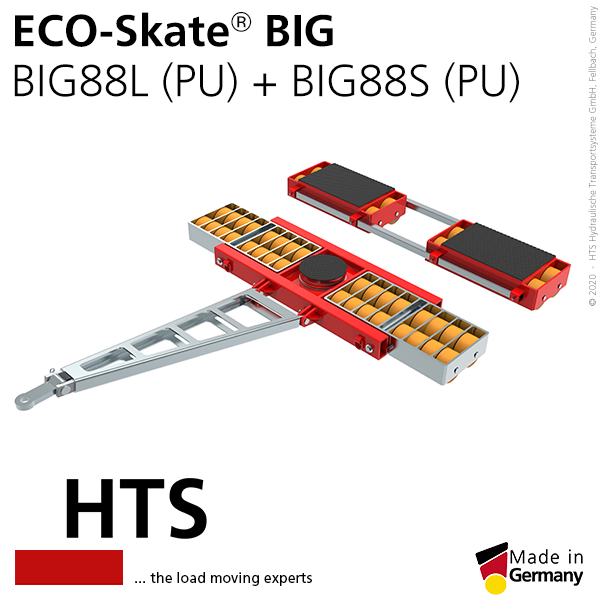

ECO-Skate-BIG-BIG88L-PU-BIG88S-PU-Set

BIG88L (PU) + BIG88S (PU) Set

Artikelnummer 09.088.04.xx
Traglast (kg) 176000

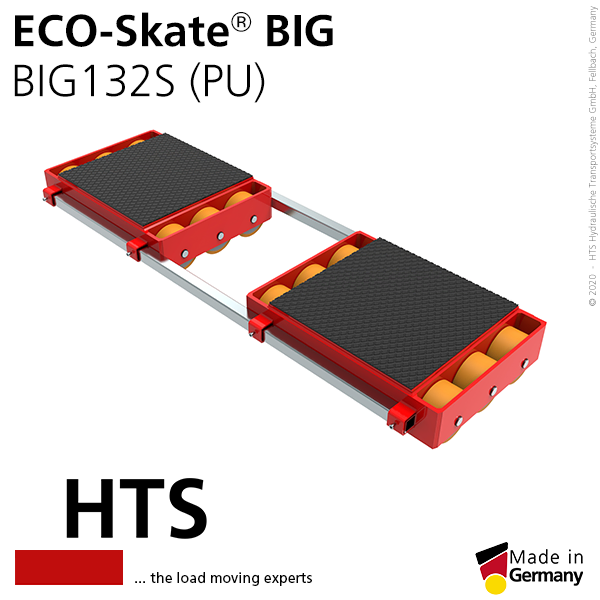

ECO-Skate-BIG-BIG132S-PU

BIG132S (PU)

Artikelnummer 09.132.04.20
Traglast (kg) 2 x 66000
Maße L x B x H (mm) 732 x 848 x 220
Deichsellänge (mm) -
Verstellbarkeit (mm) 900 - 1320
Gewicht (kg) 589

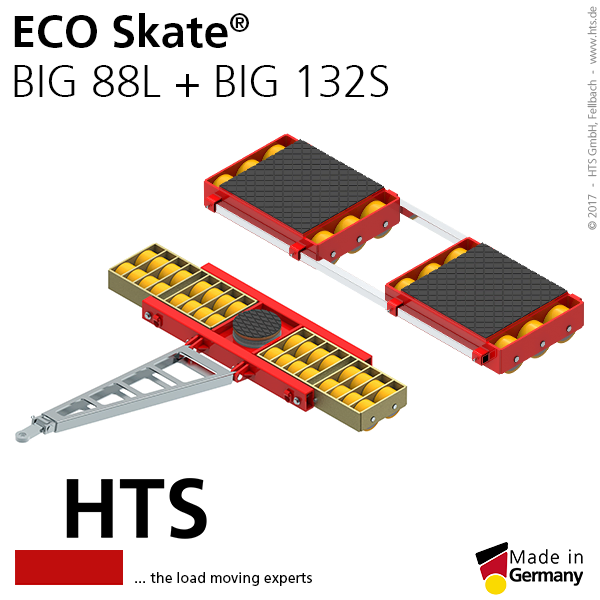

ECO-Skate BIG88L + BIG132S

BIG88L (PU) + BIG132S (PU) Set

Artikelnummer 09.132.04.20 + 09.088.04.10
Traglast (kg) 220.000
