ECO-Skate-ISOCON-IC60S-PU

IC60S (PU)

Article Number
10.060.00.25
Max Load: Load Areas x Max Load
2 x 3000 kg
Distance cone center
2260 mm
Dimensions: Length x Width x Height / Container Lock
291 x 2500 x 102 / 162 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
35 kg
ECO-Skate-ISOCON-IC60D-PU

IC60D (PU)

Article Number
10.060.00.35
Max Load: Load Areas x Max Load
2 x 3000 kg
Load Areas x Diameter + Container Lock
2 x Ø 150 + Cone mm
Distance cone center
2260 mm
Dimensions: Length x Width x Height / Container Lock
717 x 2540 x 102 / 162 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
60 kg

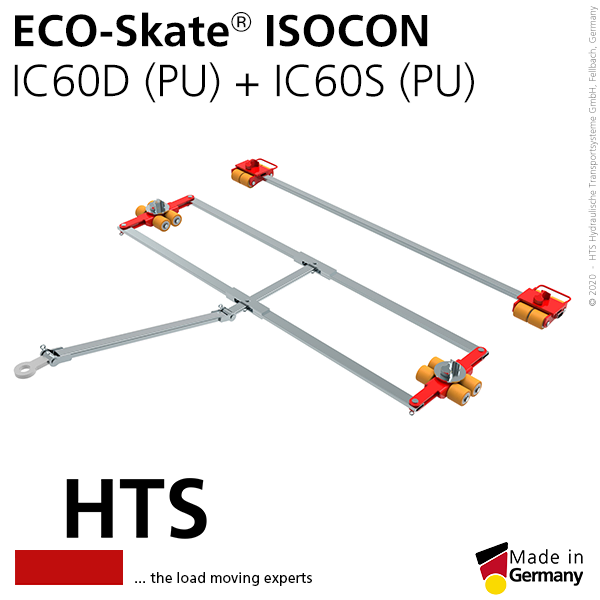

ECO-Skate-ISOCON-IC60D-PU-IC60S-PU-Set

IC60D (PU) +IC60S (PU) Set

Article Number
10.060.00.xx
Max Load: Load Areas x Max Load
12000 kg

IC120S (PU)

Article Number
10.120.00.25
Max Load: Load Areas x Max Load
2 x 6000 kg
Distance cone center
2260 mm
Dimensions: Length x Width x Height / Container Lock
291 x 2641 x 102 / 162 mm
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
50 kg
ECO-Skate-ISOCON-IC120S-PU

IC120D (PU)

Article Number
10.120.00.35
Max Load: Load Areas x Max Load
2 x 6000 kg
Load Areas x Diameter + Container Lock
2 x Ø 150 + Cone mm
Handle Length
1250 mm
Distance cone center
2260 mm
Dimensions: Length x Width x Height / Container Lock
963 x 2740 x 102 / 162 mm
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
88 kg

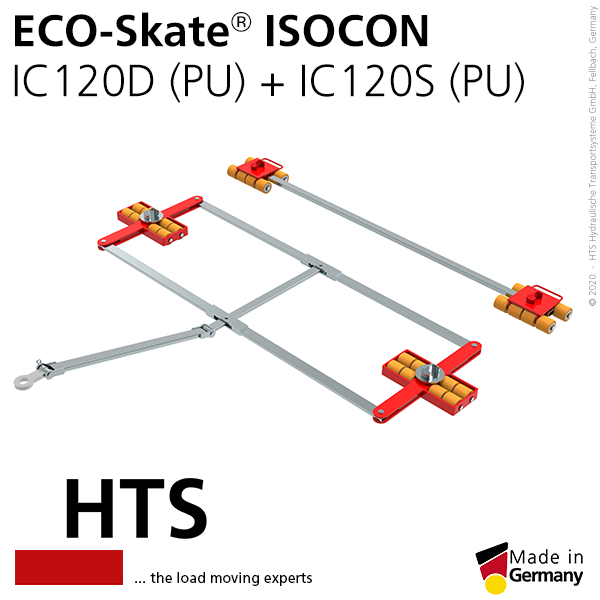

ECO-Skate-ISOCON-IC120D-PU-IC120S-PU-Set

IC120D (PU) + IC120S (PU) Set

Article Number
10.120.00.xx
Max Load: Load Areas x Max Load
24000 kg
