The following distin­guishes the transport trolleys of the ECO-Skate CR series:

  • Pulling and alignment barsThe transport skates of the CR series are delivered as standard with pulling and alignment bars. Special lengths on request.
  • Nickel-plated surface and low-wear wheelsfor use in clean rooms, the food industry and pharma­ceu­tical industry.
  • HTS high quality, non-marking nylon wheelsAll skates come standard with HTS high quality, non-marking nylon wheels, which have very low rolling resis­tance. They are made of solid material and not produced by injection molding. As a result, they are partic­u­larly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conven­tional nylon tubes. HTS nylon wheels can also be ordered separately.
  • CombinableAll transport skates with the same hight of the CR series can be combined with each other. The total load consists of the sum of the individual load capac­ities.

For all areas of appli­cation in which the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

ECO-Skate DUO CR iN80D-CR

iN80D-CR

Article Number
12.080.01.30
Load Areas x Max Load
2 x 4000 kg
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
717 x 1581 x 110 mm
Wheels
2 x 4 pc.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Weight
46 kg
ECO-Skate DUO CR iN80D-CR + iN80S-CR Set

iN80D-CR + iN80S-CR Set

Max Load
16000 kg
ECO-Skate DUO CR iN80D-CR + iN80D-CR Set

iN80D-CR + iN80D-CR Set

Max Load
16000 kg
ECO-Skate DUO CR iN160D-CR

iN160D-CR

Article Number
12.160.01.30
Load Areas x Max Load
2 x 8000 kg
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
963 x 1784 x 110 mm
Wheels
2 x 8 pc.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Weight
80 kg

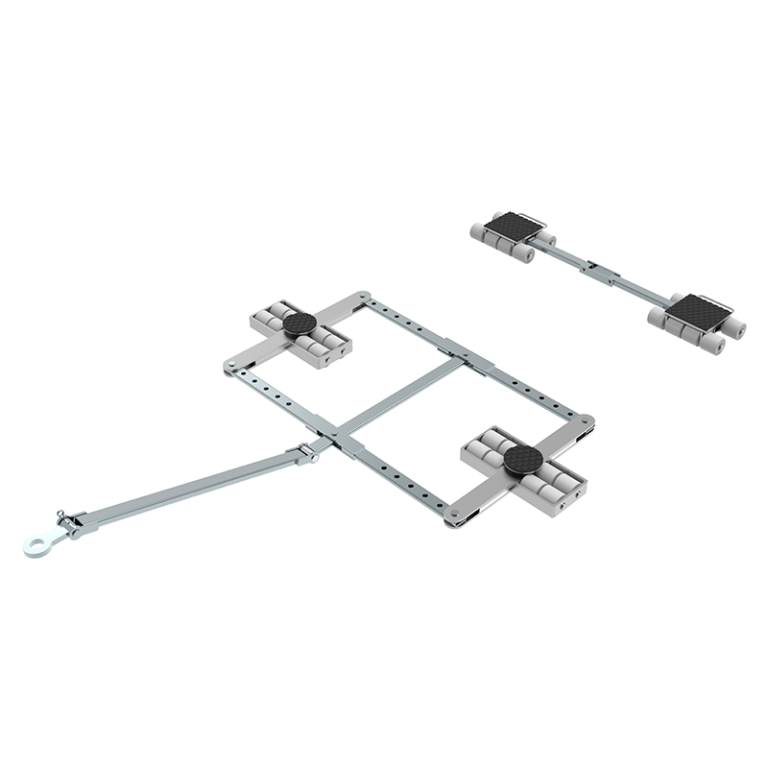

ECO-Skate DUO CR iN160D-CR + iN160S-CR Set

iN160D-CR + iN160S-CR Set

Max Load
32000 kg
ECO-Skate DUO CR iN160D-CR + iN160D-CR Set

iN160D-CR + iN160D-CR Set

Max Load
32000 kg
