The following distin­guishes the transport trolleys of the ECO-Skate DUO (NY) series:

  • Pulling bar and alignment bar
    The skates of the DUO series come standard with pulling bar and alignment bar. Special lengths on request.
  • Combinable
    All load moving skates of the DUO (NY) series can be combined with each other and with trolleys of the series IDEAL, ROTO and DUO (PU). The total load results from the sum of the individual load capac­ities.
  • HTS nylon wheels
    All Skates come standard with HTS nylon wheels, which have very low rolling resis­tance. They are made of solid material and not produced by injection molding. As a result, they are partic­u­larly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conven­tional nylon tubes. HTS nylon wheels can also be ordered separately.
  • Individual adaptions
    can be individ­ually made upon need.

For ISO container transport please check our ECO-Skate ISOCON series.
For all areas of appli­cation in which the standard range from the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

ECO-Skate-DUO-XL-iN80D-NY

iN80D (NY)

Article Number
10.080.01.30
Load Areas x Max Load
2 x 4000 kg
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
717 x 1581 x 110 mm
Wheels
2 x 4 pc.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
47 kg
Bild folgt

iN80D (NY) + iN80S (NY) Set

Article Number
10.080.01.xx
Max Load
16000 kg
Bild folgt

iN80D (NY) + iN80D (NY) Set

Article Number
10.080.01.xx
Max Load
16000 kg

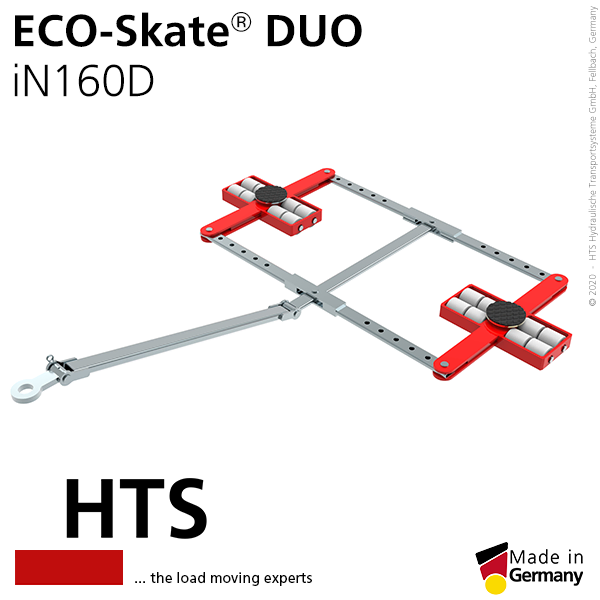

ECO-Skate-DUO-iN160D-NY

iN160D (NY)

Article Number
10.160.01.30
Load Areas x Max Load
2 x 8000 kg
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
963 x 1784 x 110 mm
Wheels
2 x 8 pc.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
80 kg
Bild folgt

iN160D (NY) + iN160D (NY) Set

Article Number
10.160.01.xx
Max Load
32000 kg

iN160D (NY) + iN160S (NY) Set

Article Number
10.160.01.xx
Max Load
32000 kg
