The following distinguishes the transport trolleys of the ECO-Skate DUO XL (NY) series:

  • Pulling bar and alignment bar
    The skates of the DUO XL series come standard with pulling bar and alignment bar. Special lengths on request.
  • Sturdy alignment bars
    The two alignment bars are made of stable galvanized square tubes. Special lengths on request.
  • Combinable
    All load moving skates of the DUO XL (NY) series can be combined with each other and with trolleys of the series XL, ROTO XL and DUO XL (PU). The total load results from the sum of the individual load capacities.
  • HTS nylon wheels
    All Skates come standard with HTS nylon wheels, which have very low rolling resistance. They are made of solid material and not produced by injection molding. As a result, they are particularly high quality and resistant to abrasion. The very high payloads that result from this can never be achieved with rolls of conventional nylon tubes. HTS nylon wheels can also be ordered separately.
  • Individual adaptions
    can be individually made upon need.

For ISO container transport please check our ECO-Skate ISOCON series.
For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

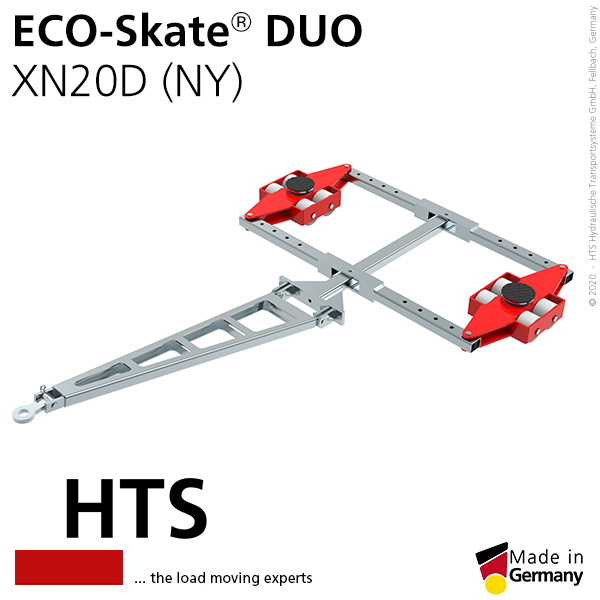

ECO-Skate-DUO-XN20D-NY

XN20D (NY)

Artikelnummer 10.200.03.30
Traglast (kg) 2 x 10000
Maße L x B x H (mm) 1265 x 1927 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) 5 x 750 - 1550
Gewicht (kg) 184
Bild folgt

XN20D (NY) + XN20S (NY) Set

Artikelnummer 10.200.03.xx
Traglast (kg) 40000
Bild folgt

XN20D (NY) + XN20D (NY) Set

Artikelnummer 10.200.03.xx
Traglast (kg) 40000

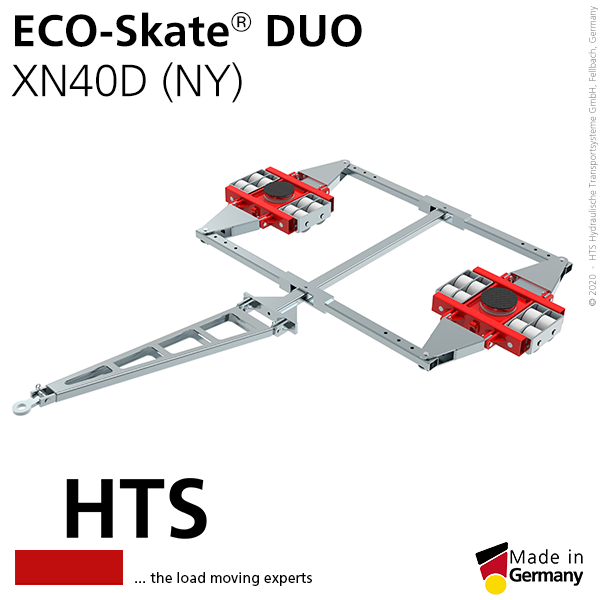

ECO-Skate-DUO-XN40D-NY

XN40D (NY)

Artikelnummer 10.400.03.30
Traglast (kg) 2 x 20000
Maße L x B x H (mm) 1847 x 2624 x 180
Deichsellänge (mm) 1620
Verstellbarkeit (mm) 4 x 1300 - 1900
Gewicht (kg) 387
Bild folgt

XN40D (NY) + XN40D (NY) Set

Artikelnummer 10.400.03.xx
Traglast (kg) 80000
Bild folgt

XN40D (NY) + XN40S (NY) Set

Artikelnummer 10.400.03.xx
Traglast (kg) 80000
