The following distin­guishes the transport trolleys of the ECO-Skate DUO (PU) series:

  • Pulling bar and alignment bar
    The skates of the DUO series come standard with pulling bar and alignment bar. Special lengths on request.
  • Combinable
    All load moving skates of the DUO (PU) series can be combined with each other and with trolleys of the series IDEAL, ROTO and DUO (NY). The total load results from the sum of the individual load capac­ities.
  • HTS wheels
    The skates are equipped as standard with HTS polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request.
  • Individual adaptions
    can be individ­ually made upon need.

For ISO container transport please check our ECO-Skate ISOCON series.
For all areas of appli­cation in which the standard range from the standard range is insuf­fi­cient, we design special solutions that are individ­ually tailored to the customer needs.

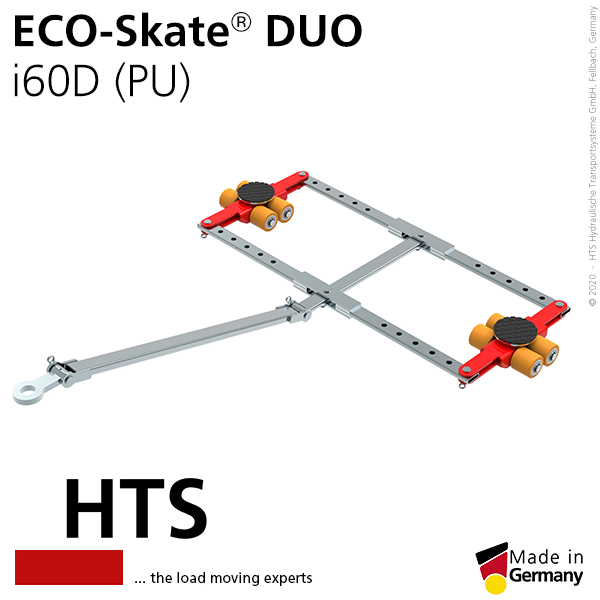

ECO-Skate-DUO-i60D-PU

i60D (PU)

Article Number
10.060.00.30
Max Load: Load Areas x Max Load
2 x 3000 kg
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
717 x 1581 x 110 mm
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
51 kg
Bild folgt

i60D (PU) + i60S (PU) Set

Article Number
10.060.00.xx
Max Load: Load Areas x Max Load
12000 kg
Bild folgt

i60D (PU) + i60D (PU) Set

Article Number
10.060.00.xx
Max Load: Load Areas x Max Load
12000 kg

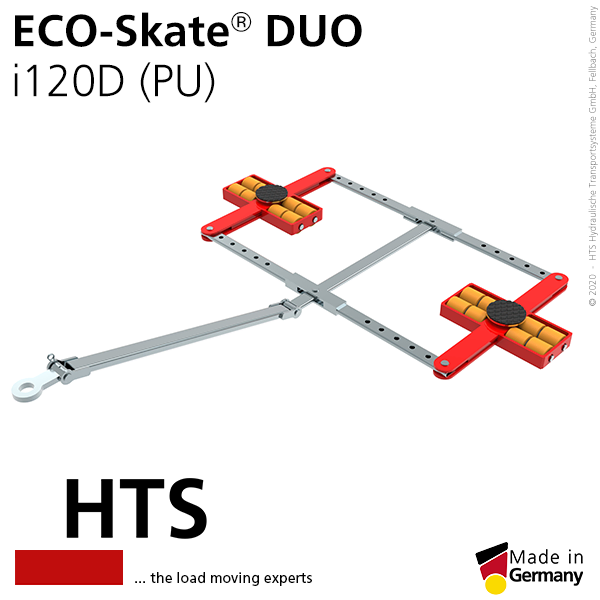

ECO-Skate-DUO-i120D-PU

i120D (PU)

Article Number
10.120.00.30
Max Load: Load Areas x Max Load
2 x 6000 kg
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
963 x 1784 x 110 mm
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Weight
88 kg
Bild folgt

i120D (PU) + i120D (PU) Set

Article Number
10.120.00.xx
Max Load: Load Areas x Max Load
24000 kg

i120D (PU) + i120S (PU) Set

Article Number
10.120.00.xx
Max Load: Load Areas x Max Load
24000 kg
