HP11N-520

Article Number
08.101.15.20
Working Pressure
520 bar
Number of Couplers
1 pc.
Volume Per Stroke (low/high pressure)
7.8/0.8 cm³/Hub
Usable Oil Volume
330 ml
Weight
2.5 kg

HP11N-700

Article Number
08.101.17.00
Working Pressure
700 bar
Number of Couplers
1 pc.
Volume Per Stroke (low/high pressure)
7.8/0.8 cm³/Hub
Usable Oil Volume
330 ml
Weight
2.5 kg

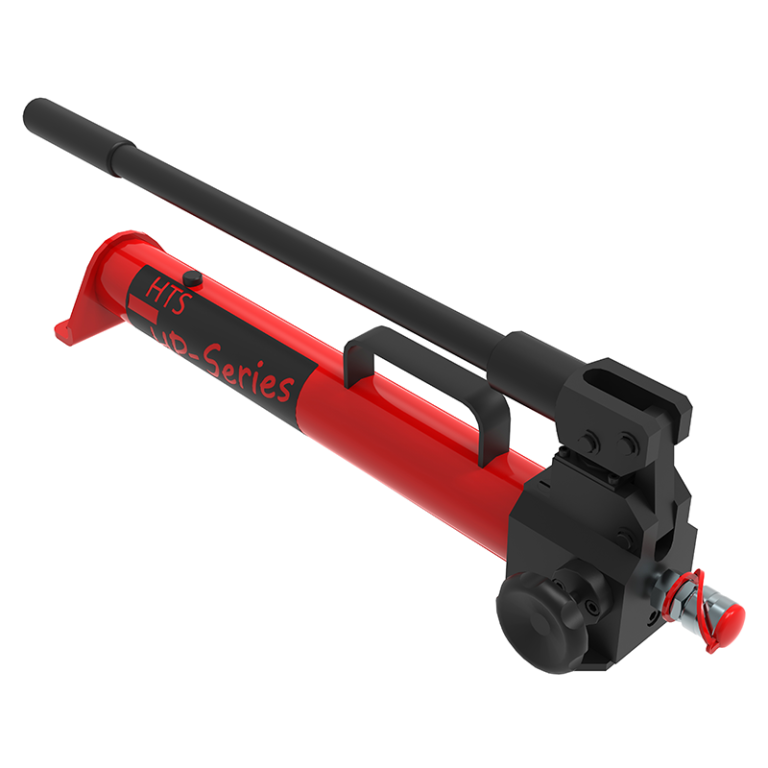

HP21N-520

Article Number
08.102.15.20
Working Pressure
520 bar
Number of Couplers
1 pc.
Volume Per Stroke (low/high pressure)
33/3.3 cm³/Hub
Usable Oil Volume
900 ml
Weight
7 kg

HP21N-700

Article Number
08.102.17.00
Working Pressure
700 bar
Number of Couplers
1 pc.
Volume Per Stroke (low/high pressure)
33/3.3 cm³/Hub
Usable Oil Volume
900 ml
Weight
7 kg

HP31N-520

Article Number
08.103.15.20
Working Pressure
520 bar
Number of Couplers
1 pc.
Volume Per Stroke (low/high pressure)
33/3.3 cm³/Hub
Usable Oil Volume
2300 ml
Weight
8.1 kg

HP31N-700

Article Number
08.103.17.00
Working Pressure
700 bar
Number of Couplers
1 pc.
Volume Per Stroke (low/high pressure)
33/3.3 cm³/Hub
Usable Oil Volume
2300 ml
Weight
8.1 kg

HP32N-520

Article Number
08.103.25.20
Working Pressure
520 bar
Number of Couplers
2 pc.
Volume Per Stroke (low/high pressure)
33/3.3 cm³/Hub
Usable Oil Volume
2300 ml
Weight
8.5 kg

HP32N-700

Article Number
08.103.27.00
Working Pressure
700 bar
Number of Couplers
2 pc.
Volume Per Stroke (low/high pressure)
33/3.3 cm³/Hub
Usable Oil Volume
2300 ml
Weight
8.5 kg
